Tire Pressure Sensor: Service and Repair
AR40.15-P-0080GZ Remove/install wheel sensor
- with CODE (475) Tire pressure monitor (Siemens)

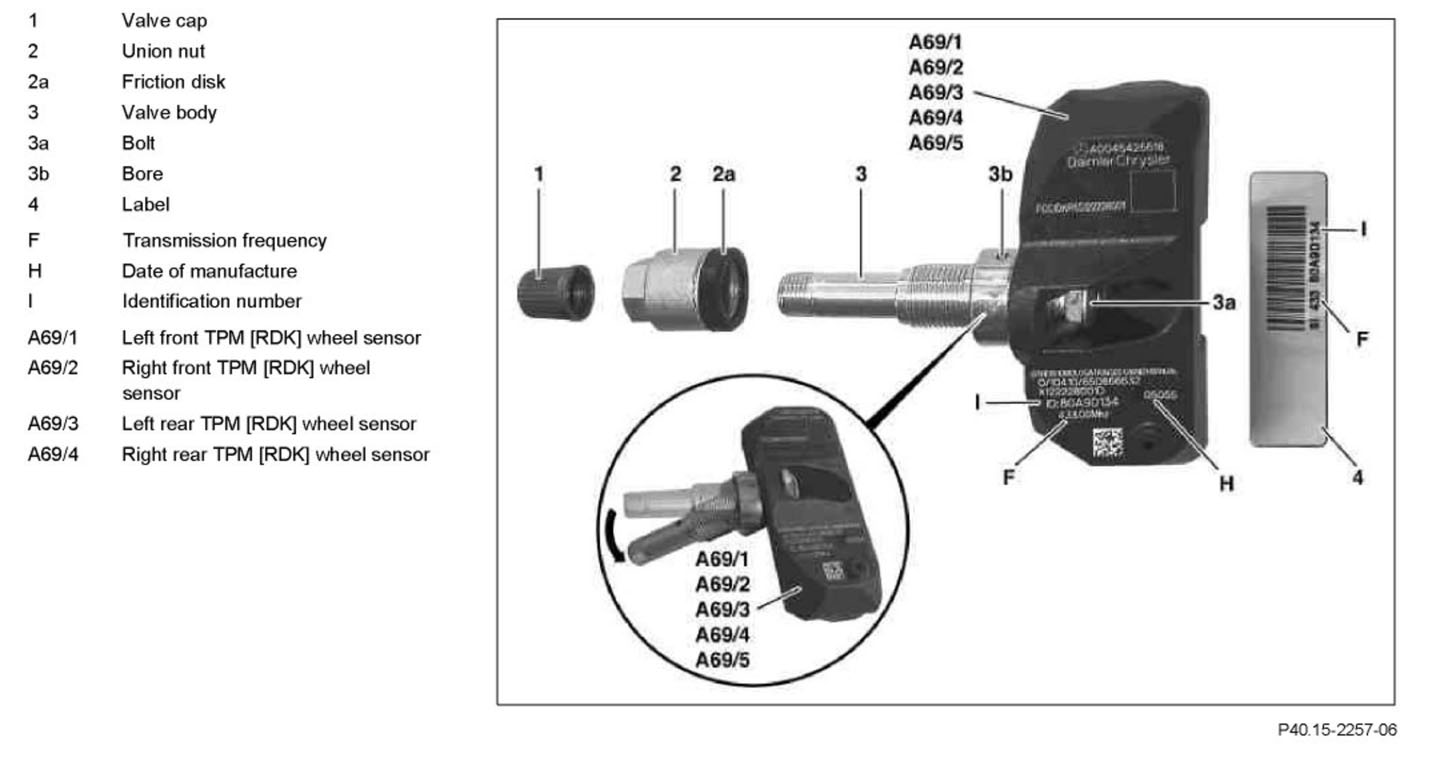

Component Identification:

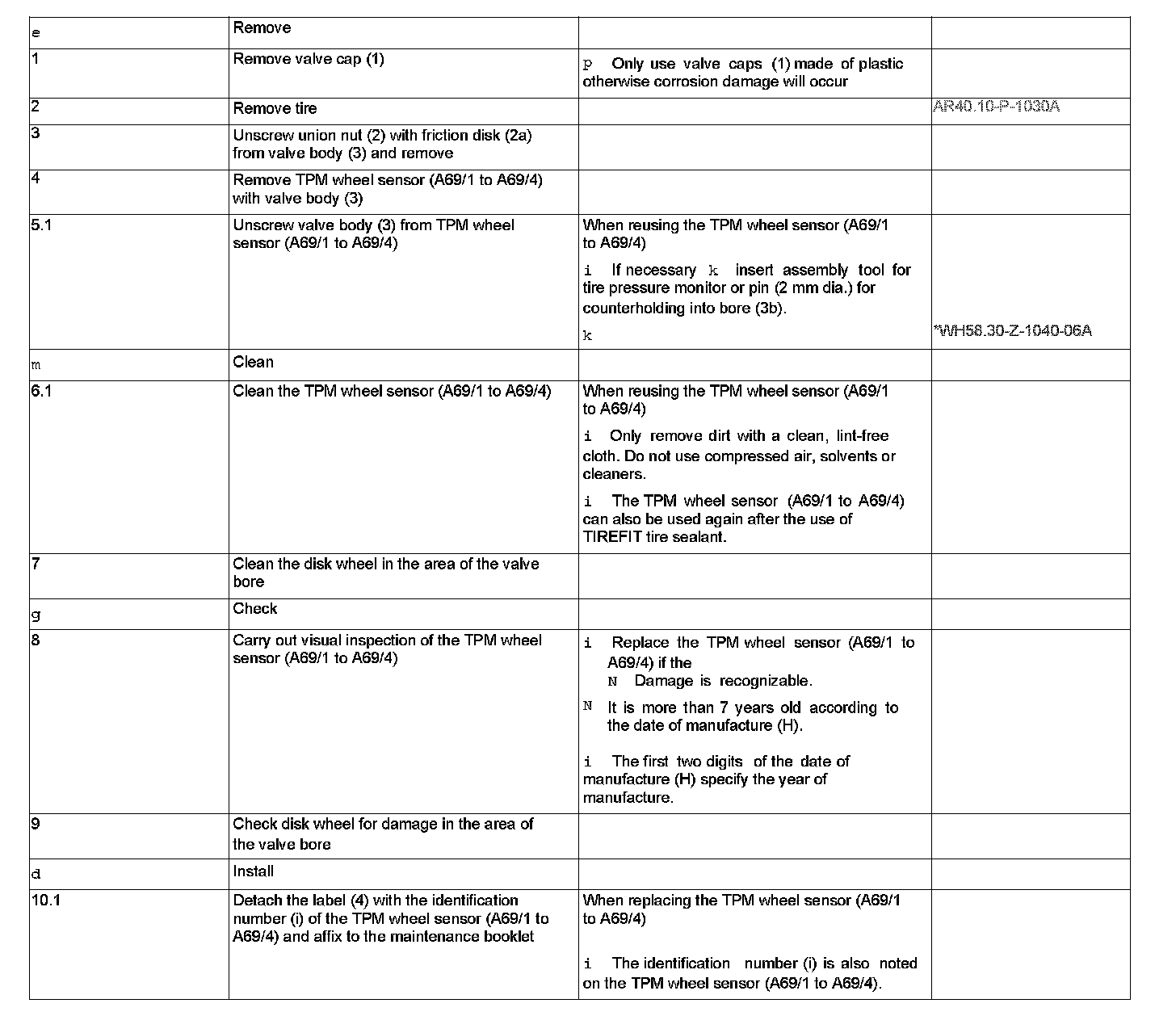

Steps 1-10.1:
Remove/install Steps 11.1-16.1:

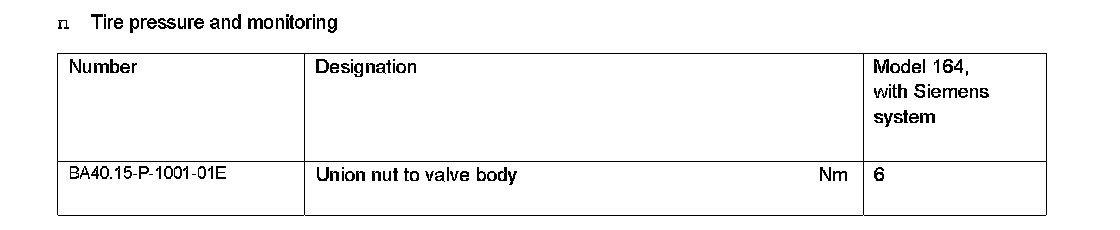

Tire pressure and monitoring:

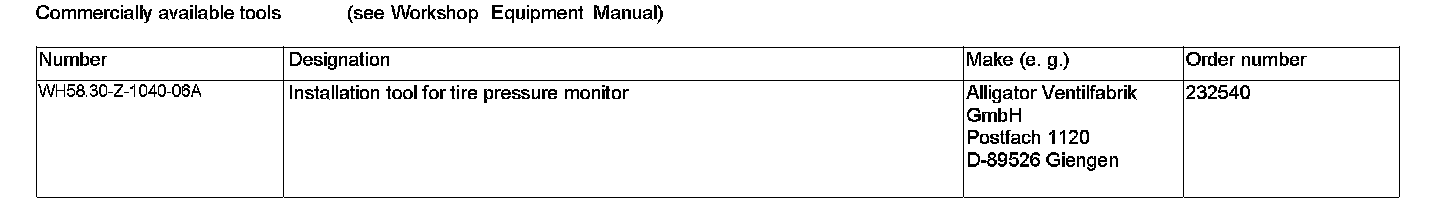

Commercially available tools:
Workshop equipment/MB testers:
