ML 350 BLUETEC (164.125) V6-3.0L DSL Turbo (642.820)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Restraints and Safety Systems
>>
Impact Sensor
>>
Locations
>>
Frontal Acceleration Sensor, Passenger-Side
Frontal Acceleration Sensor, Passenger-Side
Passenger-Side Frontal Acceleration Sensor

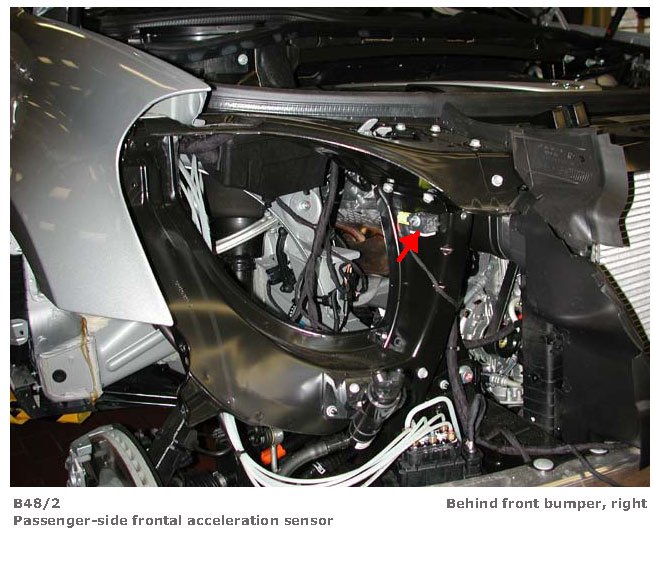

Passenger-Side Frontal Acceleration Sensor (View 1):

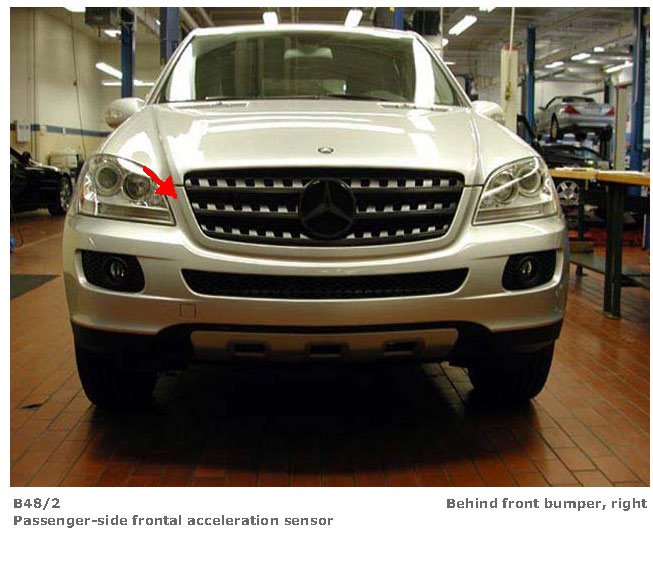

Passenger-Side Frontal Acceleration Sensor (View 2):
