Home >> Mercedes Benz Truck >> 2010 >> ML 350 BLUETEC (164.125) V6-3.0L DSL Turbo (642.820) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Distance Sensor >> Service and Repair

Distance Sensor: Service and Repair



AR30.30-P-1010GZA Remove/Install Distronic Sensor (DTR)
- with CODE (219) Distronic (DTR)

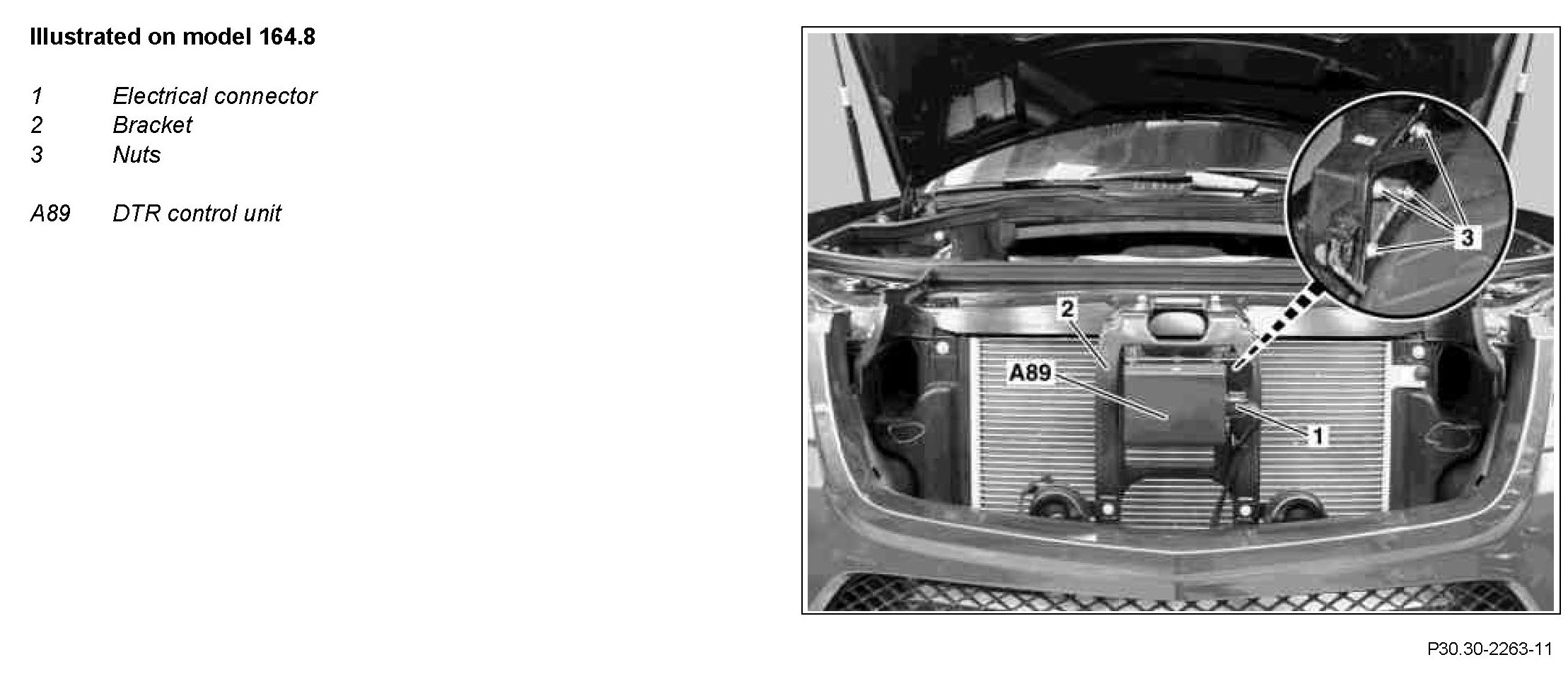

Component Identification:

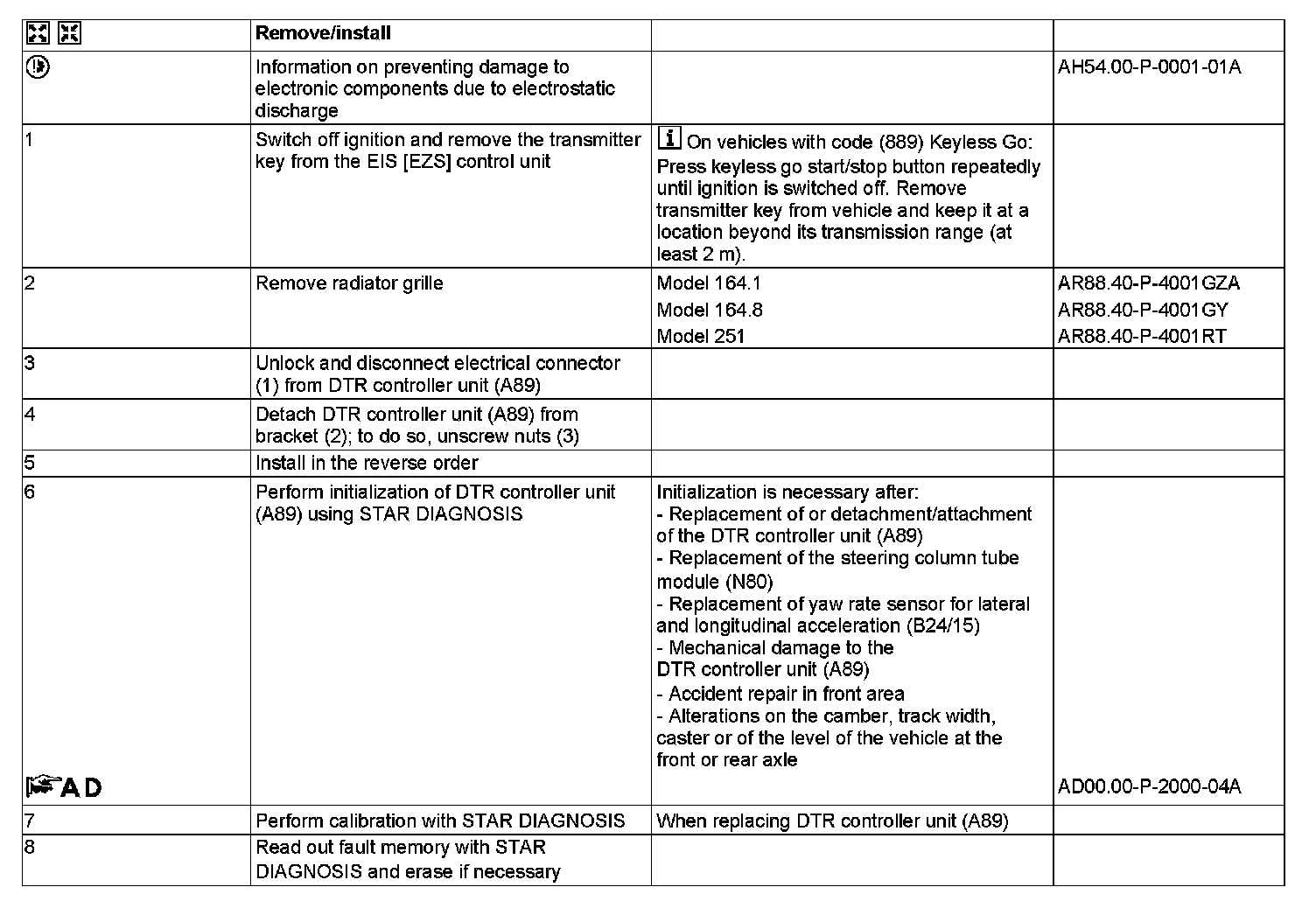

Steps 1 - 8:
