AR01.00-P-1200GZB Test Compression Pressure



AR01.00-P-1200GZB Test compression pressure

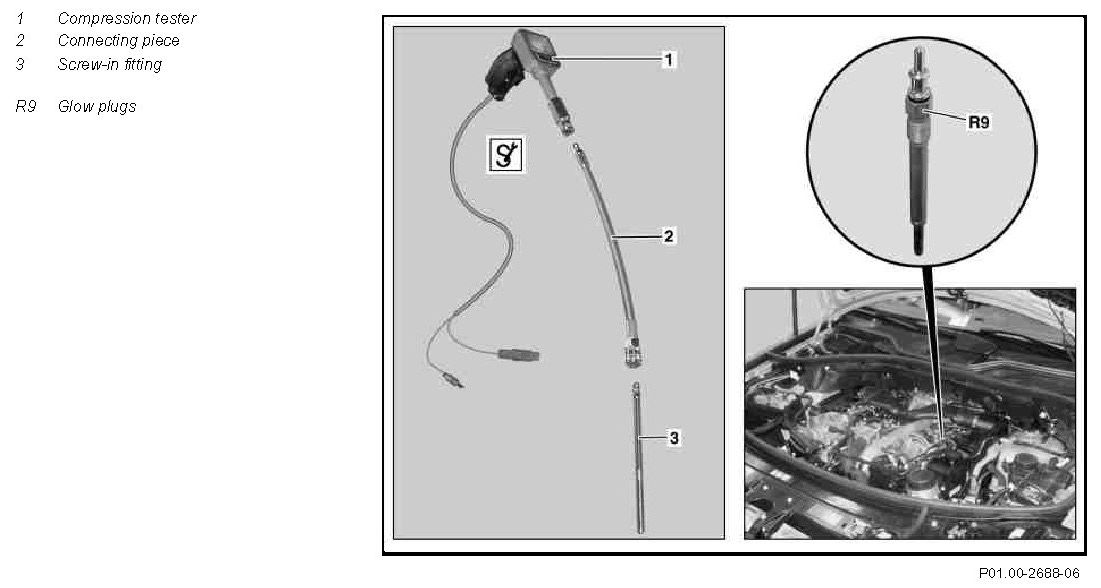

Component Identification:

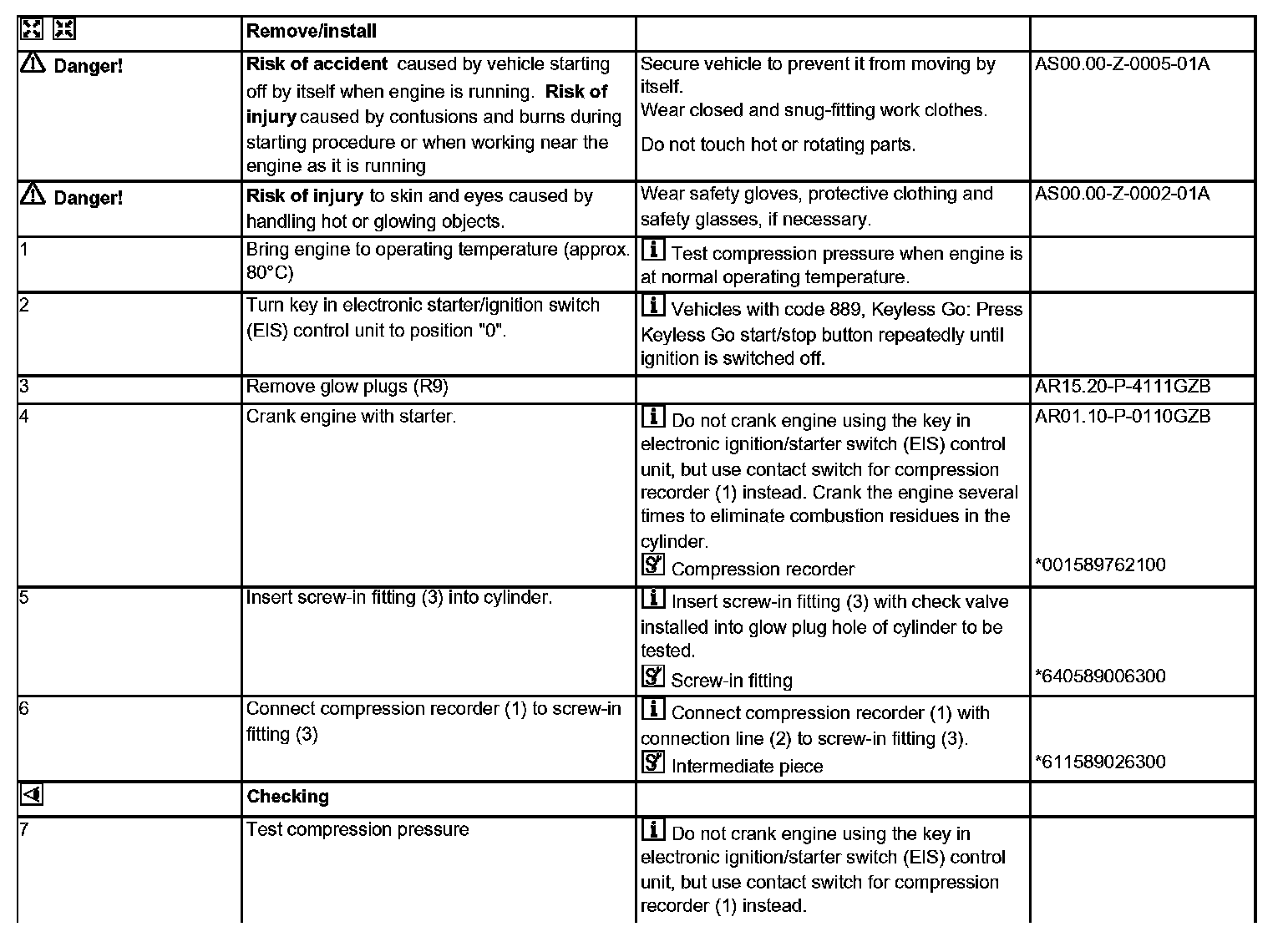

Remove/install Steps 1-7:

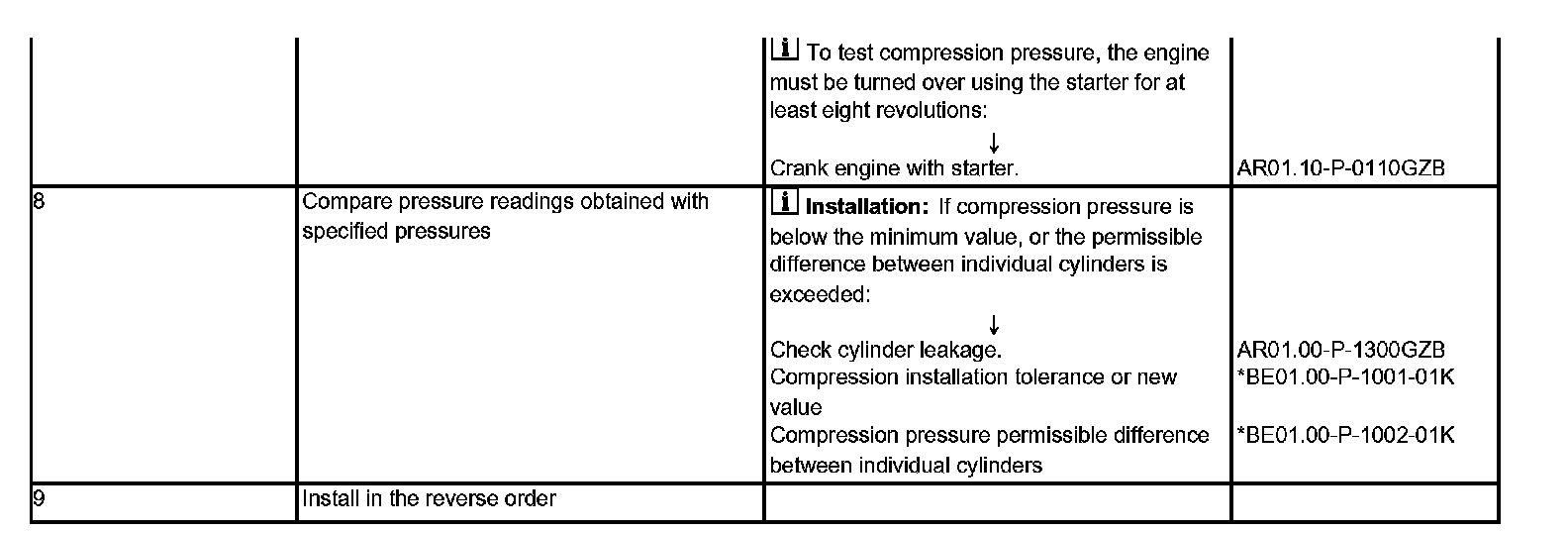

Remove/install Steps 7 (Continued)-9:

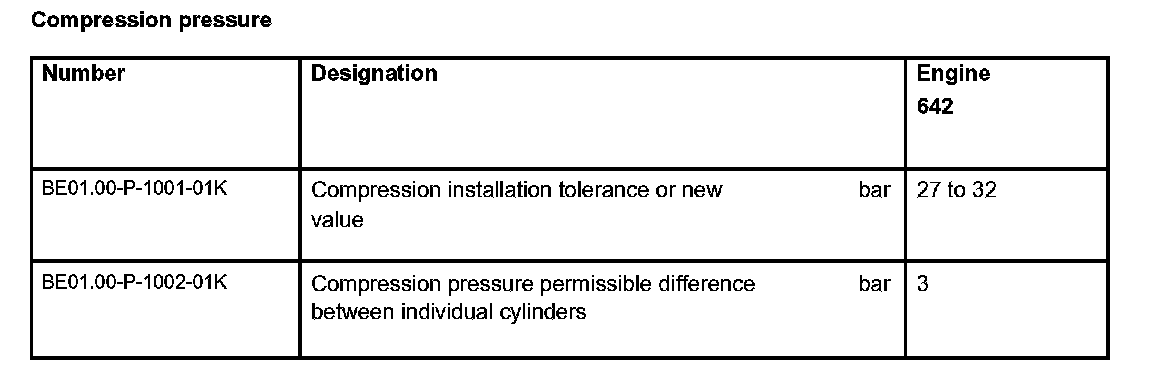

Compression pressure:

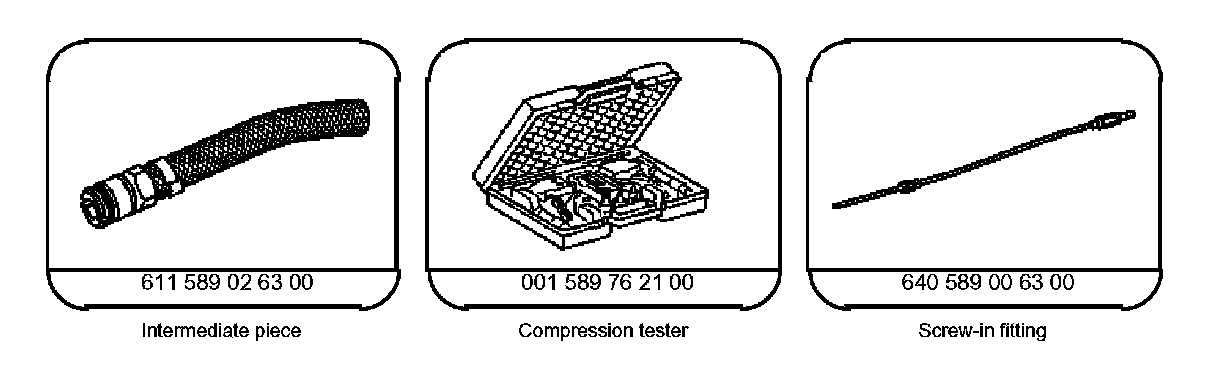

Special Tools:
