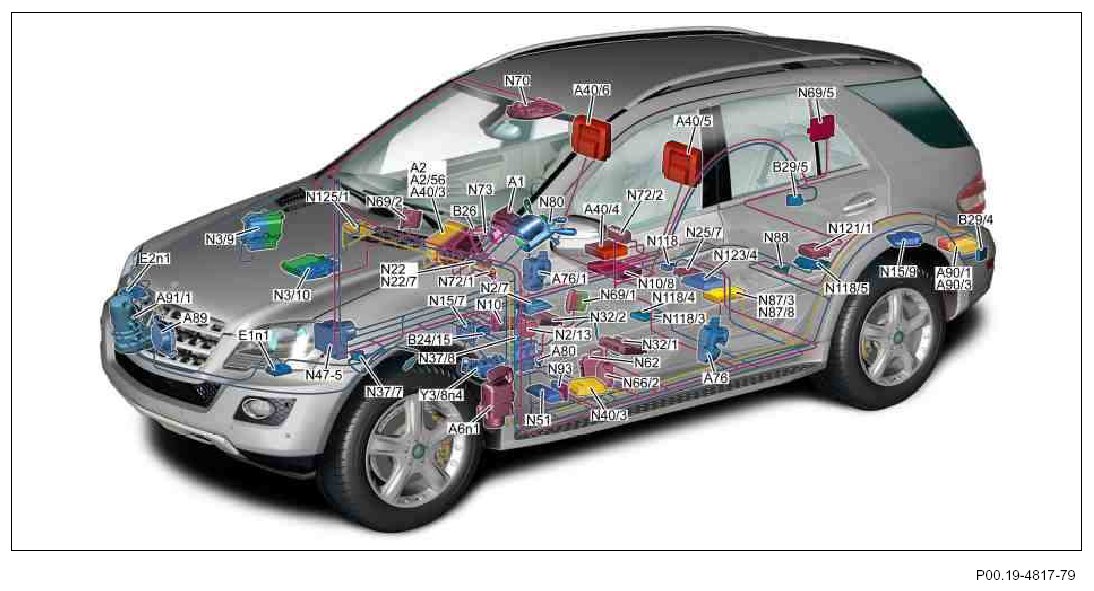

GF00.19-P-0001-01GMA Overall Network (GVN), Location of Components

GF00.19-P-0001-01GMA Overall Network (GVN), Location Of Components

Except model 164.195, shown on model 164.1







A1 Instrument cluster
A2 Radio (with code (510) Audio 20 with CD changer or with code (523) MB Audio 20 radio)
A2/56 Radio and navigation unit (with code (511) Audio 50 APS with DVD changer or with code (525) MB Audio 50 APS radio)
A6n1 STH control unit (with code (228) Stationary heater)
A40/3 COMAND operating, display and controller unit (with code (512) COMAND APS with DVD changer, with code (527) COMAND APS (with navigation) or with code (528) COMAND incl. DVD changer)
A40/4 DVD player (with code (864) Rear entertainment system)
A40/5 Left rear display (with code (864) Rear entertainment system)
A40/6 Right rear display (with code (864) Rear entertainment system)
A76 Left front reversible emergency tensioning retractor
A76/1 Right front reversible emergency tensioning retractor
A80 Intelligent servo module for DIRECT SELECT
A89 DTR controller unit (with code (219) Distronic (DTR))
A90/1 TV combination tuner (analog/ digital) (with code (863) Digital/analog TV tuner)
A90/3 TV digital tuner (with code (865) TV tuner)
A91/1 Electrohydraulic power steering (model 164.120/122/822/825 as of 1.6.09, model 164.121/124/125/824)
B24/15 Micromechanical yaw rate sensor AY pickup
B26 Electronic compass (with code (245) Electronic compass)
B29/4 Left rear bumper intelligent radar sensor (with code (234) Blind Spot Assist)
B29/5 Right rear bumper intelligent radar sensor (with code (234) Blind Spot Assist)
E1n1 Xenon headlamp control unit (with code (615) Bi-xenon headlamp unit with integrated curve illumination, with code (616) Bi-xenon headlamp unit with integrated asymmetrical curve illumination, with code (621) Intelligent Light System (left-hand traffic) or with code (622) Intelligent Light System (right-hand traffic))
E2n1 Xenon headlamp control unit (with code (615) Bi-xenon headlamp unit with integrated curve illumination, with code (616) Bi-xenon headlamp unit with integrated asymmetrical curve illumination, with code (621) Intelligent Light System (left-hand traffic) or with code (622) Intelligent Light System (right-hand traffic))
N2/7 Restraint systems control unit
N2/13 Weight Sensing System (WSS) control unit (with code (494) USA version)
N3/9 CDI control unit (with diesel engine)
N3/10 ME-SFI [ME] control unit (with gasoline engine)
N10 Front SAM control unit
N10/8 Rear SAM control unit
N15/7 Transfer case control unit (with code (430) off-road package)
N15/9 Rear axle differential lock control unit (with code (430) off-road package)
N22 AAC control and operating unit (without code (581) Comfort automatic air conditioning)
N22/7 Comfort AC control and operating unit (with code (581) Comfort automatic air conditioning)
N25/7 Seat heater control unit, seat ventilation and steering wheel heater (with code (872) Electric seat heaters for left and right rear seats, with code (401) Front comfort seats, incl. seat heating and seat ventilation or with code (443) Steering wheel heater)
N32/1 Driver front seat adjustment control unit with memory (with code (275) Memory package (driver seat, steering column, mirrors))
N32/2 Passenger-side front seat adjustment control unit with memory (with code (242) Electrically adjustable front passenger seat with memory)
N37/7 NOX control unit downstream of diesel particulate filter (with code (U42) BlueTec (SCR) diesel exhaust treatment
N37/8 NOX control unit downstream of SCR catalytic converter (with code (U42) BlueTec (SCR) diesel exhaust treatment
N40/3 Amplifier for sound system (with code (810) Sound system)
N47-5 ESP control unit'
N51 AIRmatic control unit (model 164.1 with code (489) AIRmatic (air suspension with level adjustment and adaptive damping system ADS) or with model 164.8)
N62 PTS control unit (with code (220) PARKTRONIC)
N66/2 Reversing camera control unit (with code (218) Reversing camera and with code (498) Japan version)
N69/1 Door control module front left
N69/2 Door control module front right
N69/5 KEYLESS-GO control unit (with code (889) Keyless-Go)
N70 Overhead control panel control unit
N72/1 Upper control panel control unit
N72/2 RCP [HBF] control unit
N73 EIS [EZS] control unit
N80 Steering column module
N87/3 Digital Audio Broadcasting control unit (with code (537) Digital radio)
N87/8 High definition tuner control unit (with code (517) HD radio)
N88 TPM [RDK] control unit (with code (470) Tire pressure monitor (standard) or with code (475) Tire pressure monitor (premium))
N93 Central gateway control unit
N118 Fuel system control unit (with engine 272, 273)
N118/3 Left fuel system control unit (with engine 156)
N118/4 Right fuel system control unit (with engine 156)
N118/5 AdBlue� control unit (with code (U42) BlueTec (SCR) diesel exhaust treatment)
N121/1 Rear-end door closing system control unit (with code (890) EASY PACK tailgate)
N123/4 Emergency call system control unit (with code (359) TELE AID emergency call system)
N125/1 Media interface control unit (with code (518) Media interface)
Y3/8n4 Fully integrated transmission control (VGS) control unit

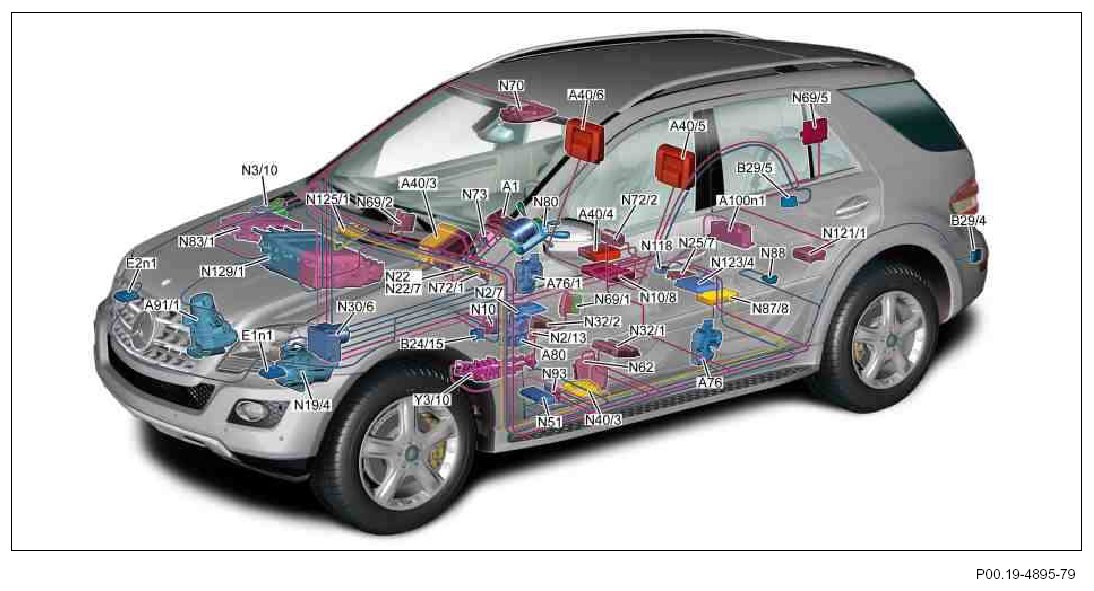

Model 164.195







A1 Instrument cluster
A40/3 COMAND operating, display and control unit
A40/4 DVD player (with code (864) Rear entertainment system)
A40/5 Left rear display (with code (864) Rear entertainment system)
A40/6 Right rear display (with code (864) Rear entertainment system)
A76 Left front reversible emergency tensioning retractor
A76/1 Right front reversible emergency tensioning retractor
A80 Intelligent servo module for DIRECT SELECT
A91/1 Electrohydraulic power steering
A100n1 Battery management system control unit
B24/15 Micromechanical yaw rate sensor AY pickup
B29/4 Left rear bumper intelligent radar sensor (with code (234) Blind Spot Assist)
B29/5 Right rear bumper intelligent radar sensor (with code (234) Blind Spot Assist)
E1n1 Xenon headlamp control unit (for code (615) Bi-xenon headlamp unit with integrated curve illumination)
E2n1 Xenon headlamp control unit (for code (615) Bi-xenon headlamp unit with integrated curve illumination)
N2/7 Restraint systems control unit
N2/13 WSS (Weight Sensing System) control unit
N3/10 ME-SFI [ME] control unit N10 Front SAM control unit
N10/8 Rear SAM control unit
N19/4 Electric refrigerant compressor control unit
N22 AAC control and operating unit (without code (581) Comfort automatic air conditioning)
N22/7 Comfort AAC control and operating unit (with code (581) Comfort automatic air conditioning)
N25/7 Seat heater control unit, seat ventilation and steering wheel heater (with code (872) Electric seat heaters for left and right rear seats, with code (401) Front comfort seats, incl. seat heating and seat ventilation or with code ( 443) Steering wheel heater)
N30/6 Regenerative braking system control unit
N32/1 Driver front seat adjustment control unit with memory (with code (275) Memory package (driver seat, steering column, mirrors))
N32/2 Passenger-side front seat adjustment control unit with memory (with code (242) Electrically adjustable front passenger seat with memory)
N40/3 Amplifier for sound system (with code (810) Sound system)
N51 AIRMATIC control unit
N62 PTS control unit (with code (220) PARKTRONIC)
N69/1 Door control module front left
N69/2 Door control module front right
N69/5 KEYLESS-GO control unit (with code (889) Keyless-Go)
N70 Overhead control panel control unit
N72/1 Upper control panel control unit
N72/2 RCP [HBF] control unit
N73 EIS [EZS] control unit
N80 Steering column module
N83/1 DC/DC converter control unit
N87/8 High definition tuner control unit (with code (517) HD radio)
N88 TPM [RDK] control unit
N93 Central gateway control unit
N118 Fuel pump control unit
N121/1 Rear-end door closing system control unit (with code (890) EASY PACK tailgate)
N123/4 Emergency call system control unit (with code (359) TELE AID emergency call system)
N125/1 Media interface control unit (with code (518) Media interface)
N129/1 Power electronics control unit
Y3/10 Hybrid vehicle fully integrated transmission control controller unit
