AR05.10-P-8127GZB Remove, Install Tensioning Rail



AR05.10-P-8127GZB Remove, install tensioning rail

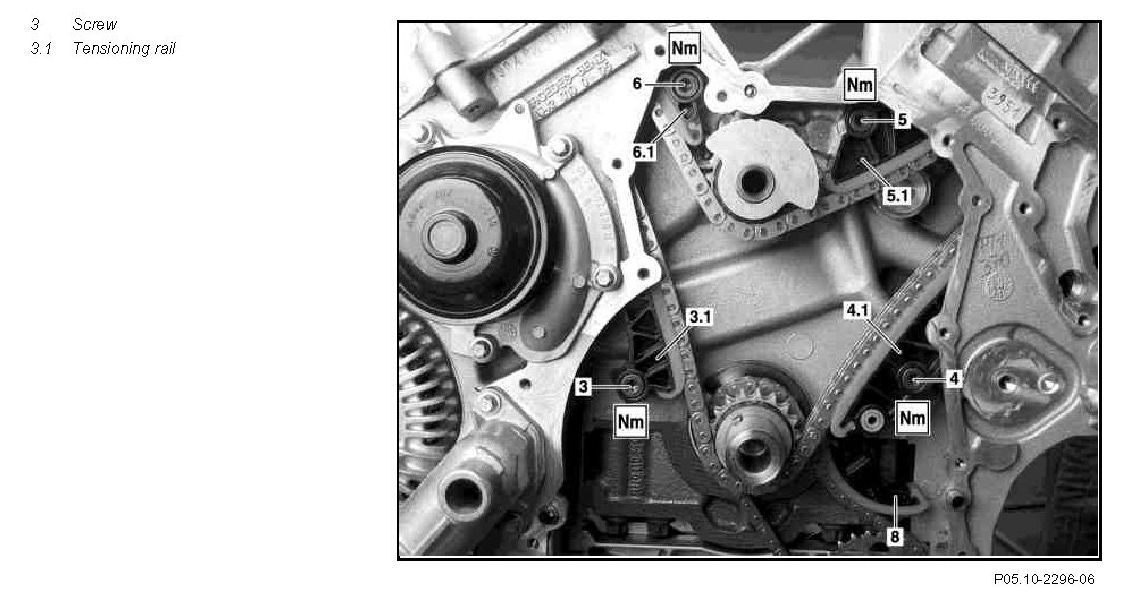

Component Identification:

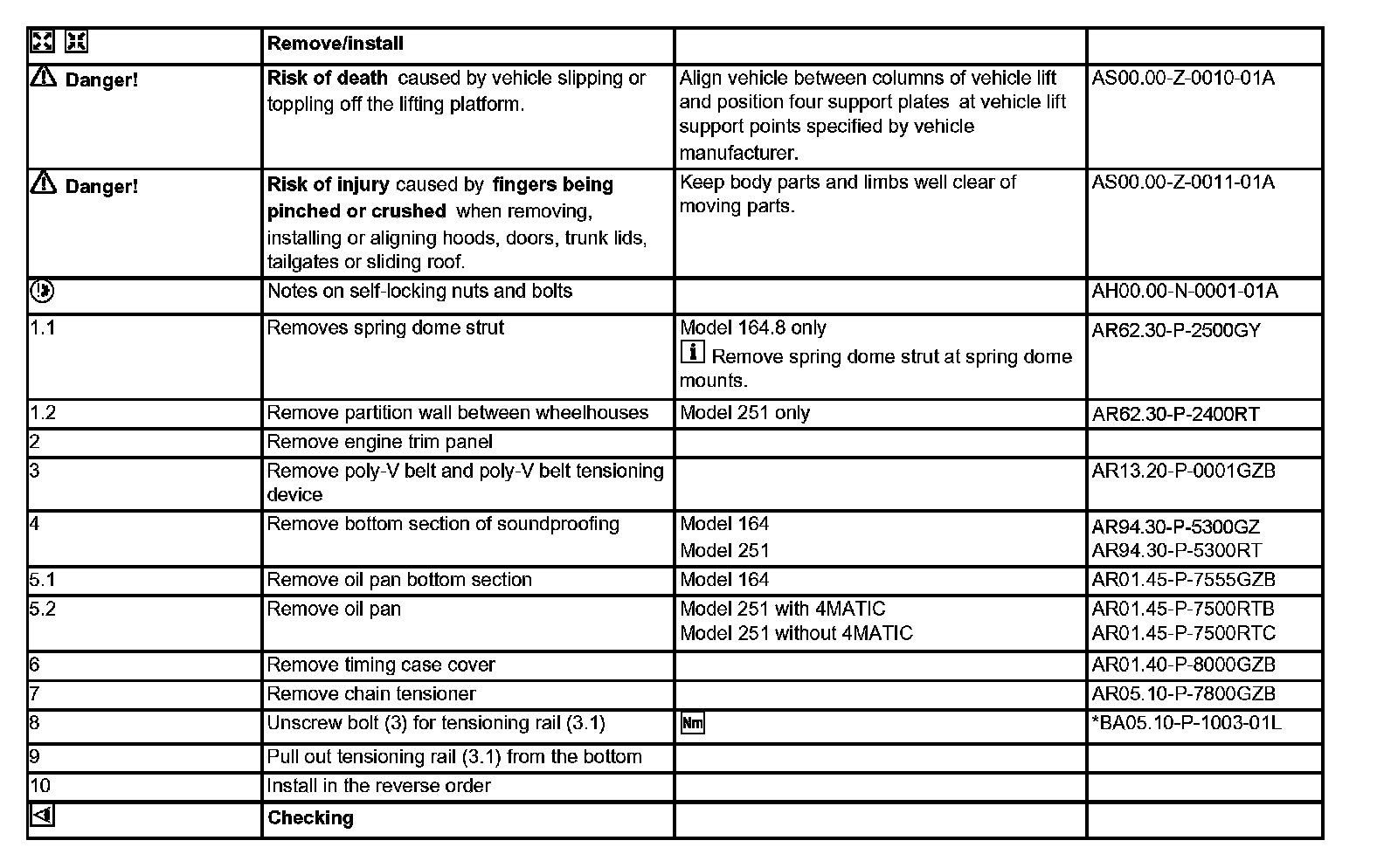

Remove/install Steps 1.1-10:

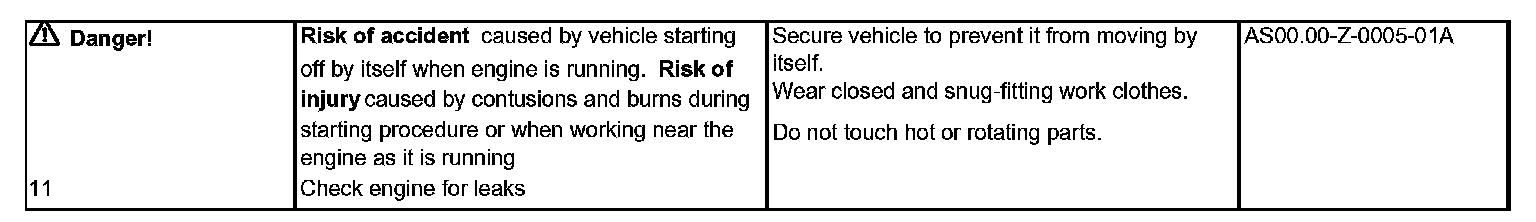

Remove/install Step 11:

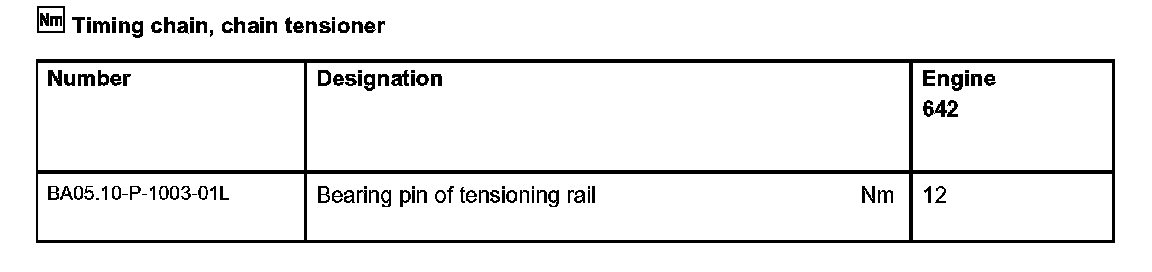

Timing chain, chain tensioner:
