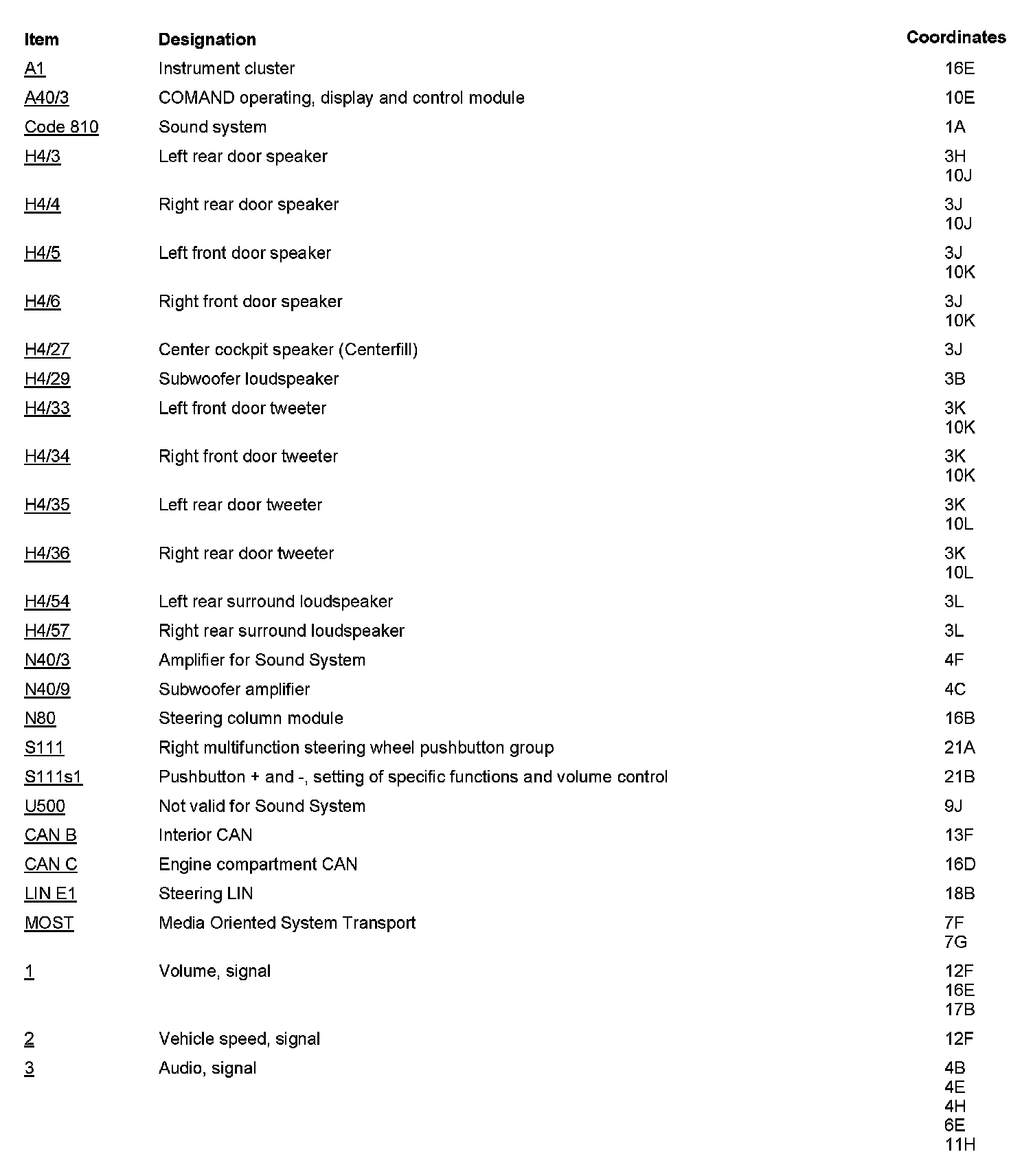

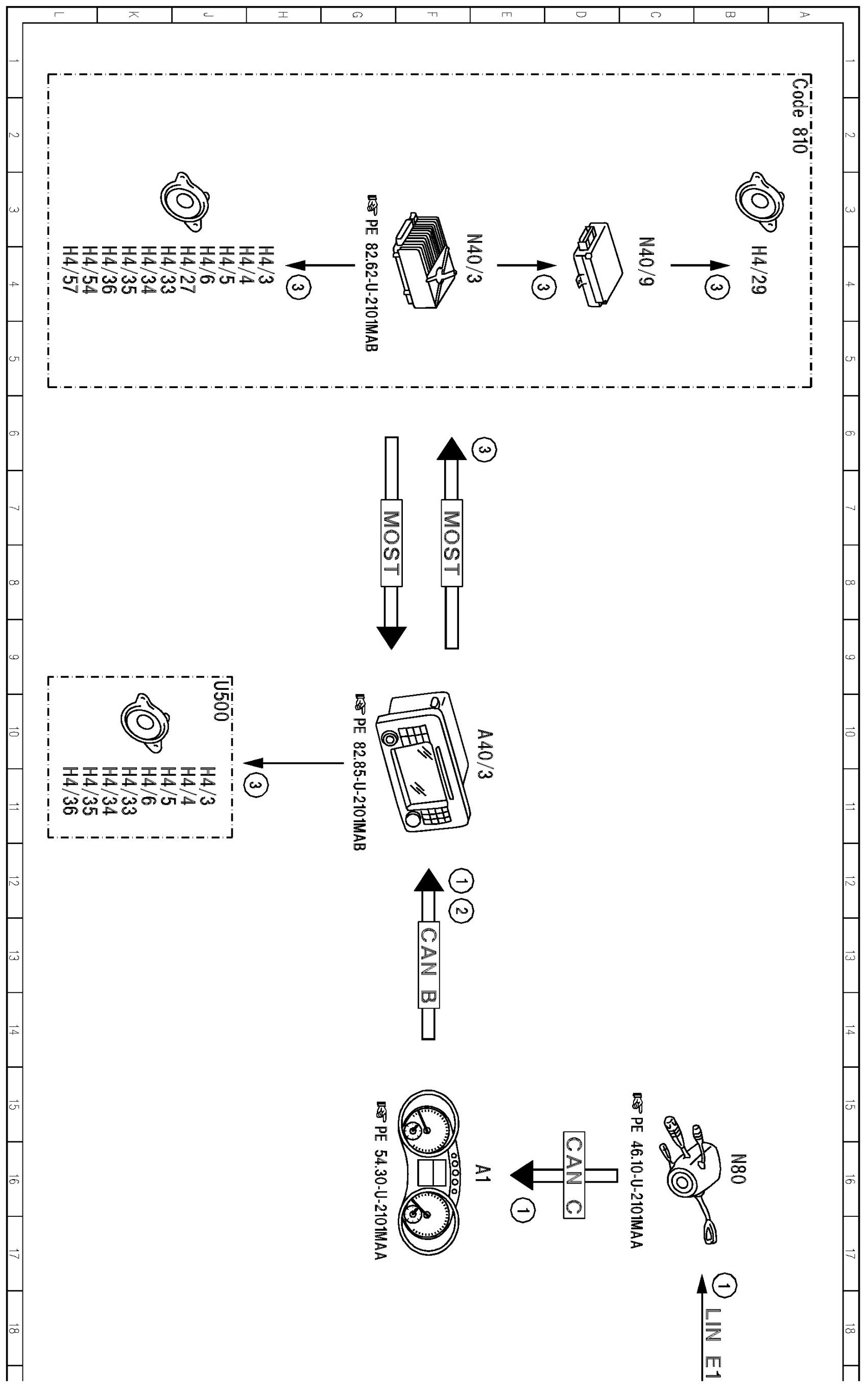

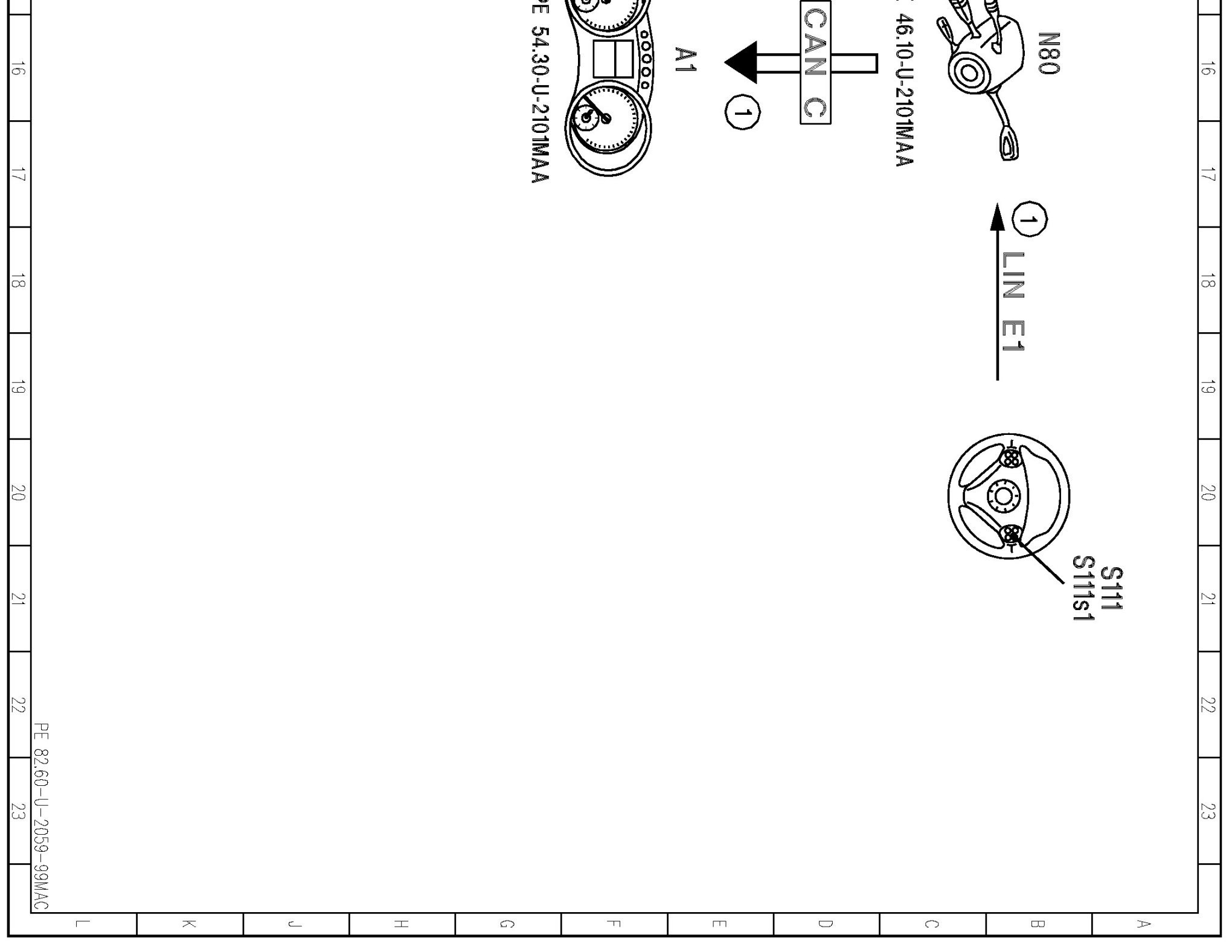

PE82.60-U-2059MAC Electrical Function Schematic For Volume/Sound Settings, Function



PE82.60-U-2059MAC Electrical Function Schematic For Volume/Sound Settings, Function
- with CODE (528) COMAND with DVD changer
- with CODE (512) COMAND APS with DVD changer














Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
