PE82.60-P-2059MAA Electrical Function Diagram for Volume/Sound Settings, Function

Electrical Function Diagram for Volume/Sound Settings, Function PE82.60-P-2059MAA
- with CODE (523) MB Audio 20 radio
- with CODE (510) Audio 20 with CD changer
- refinement package
- as of model year 2009

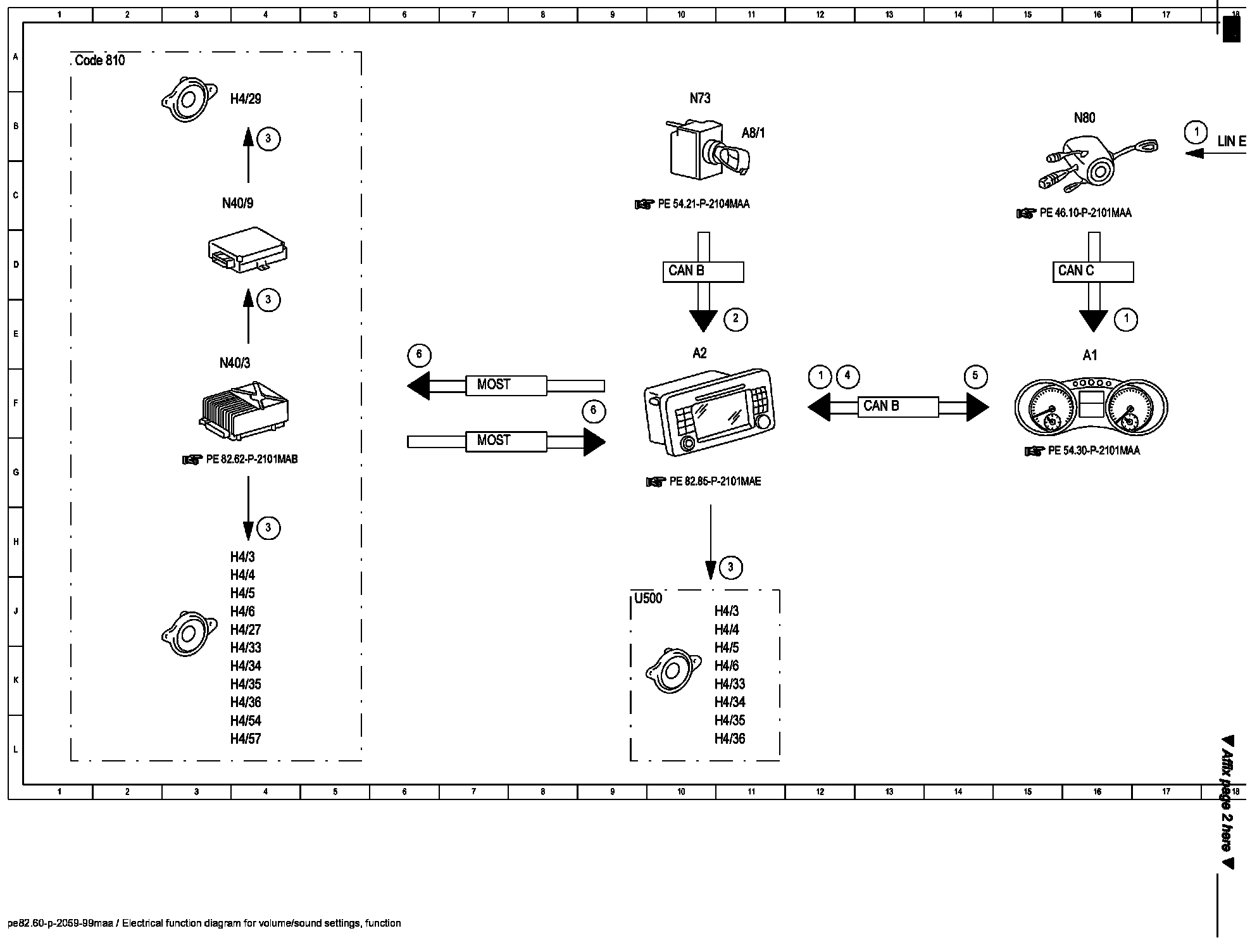

Function Diagram (Part 1):

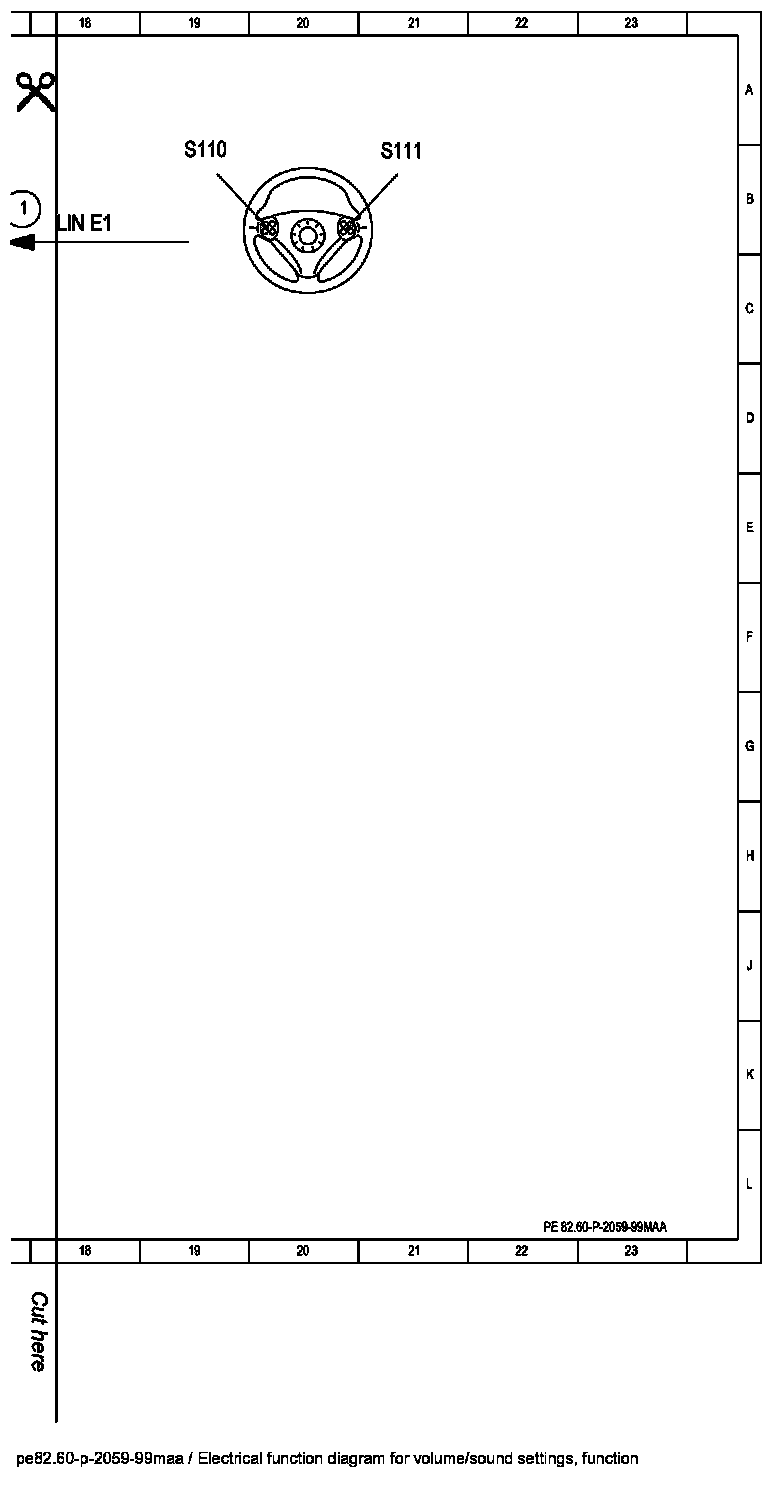

Function Diagram (Part 2):

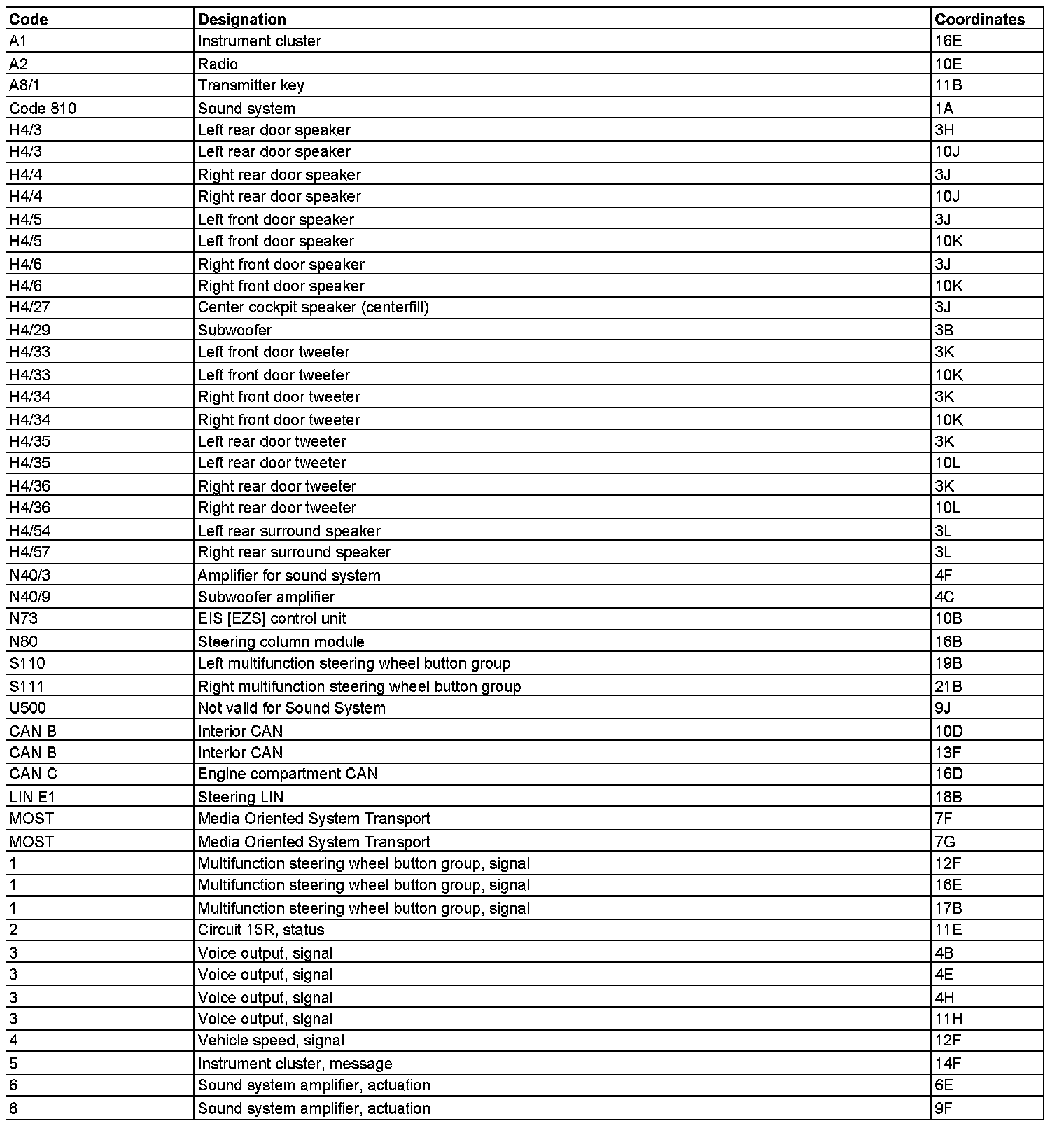

Component Description/Coordinates, A1 To 6:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
