PE82.60-P-2058MAE Electrical Function Diagram for Audio Mode, Function

Electrical Function Diagram for Audio Mode, Function PE82.60-P-2058MAE
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (498) Japan version
- refinement package
- as of model year 2009

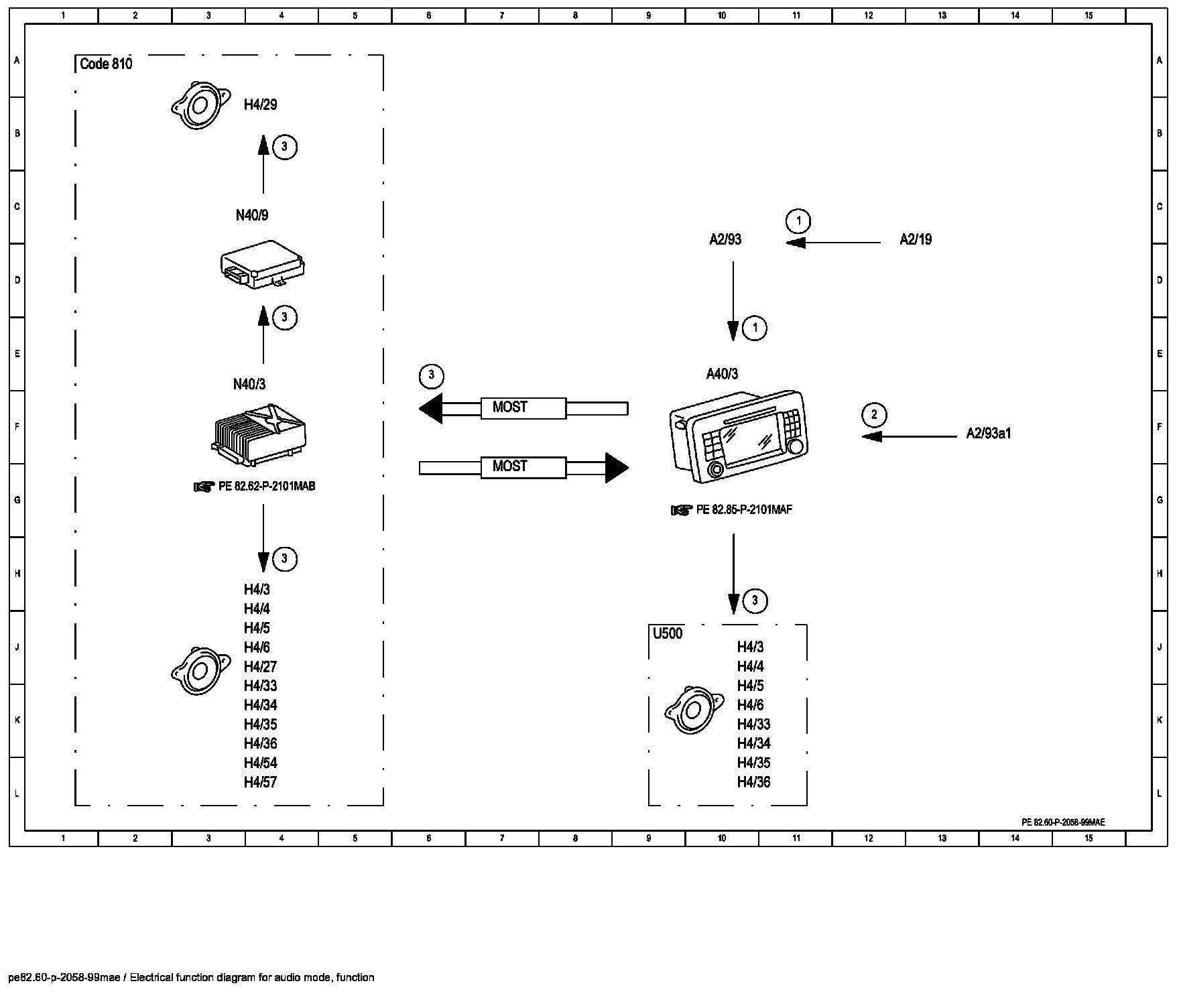

Function Diagram:

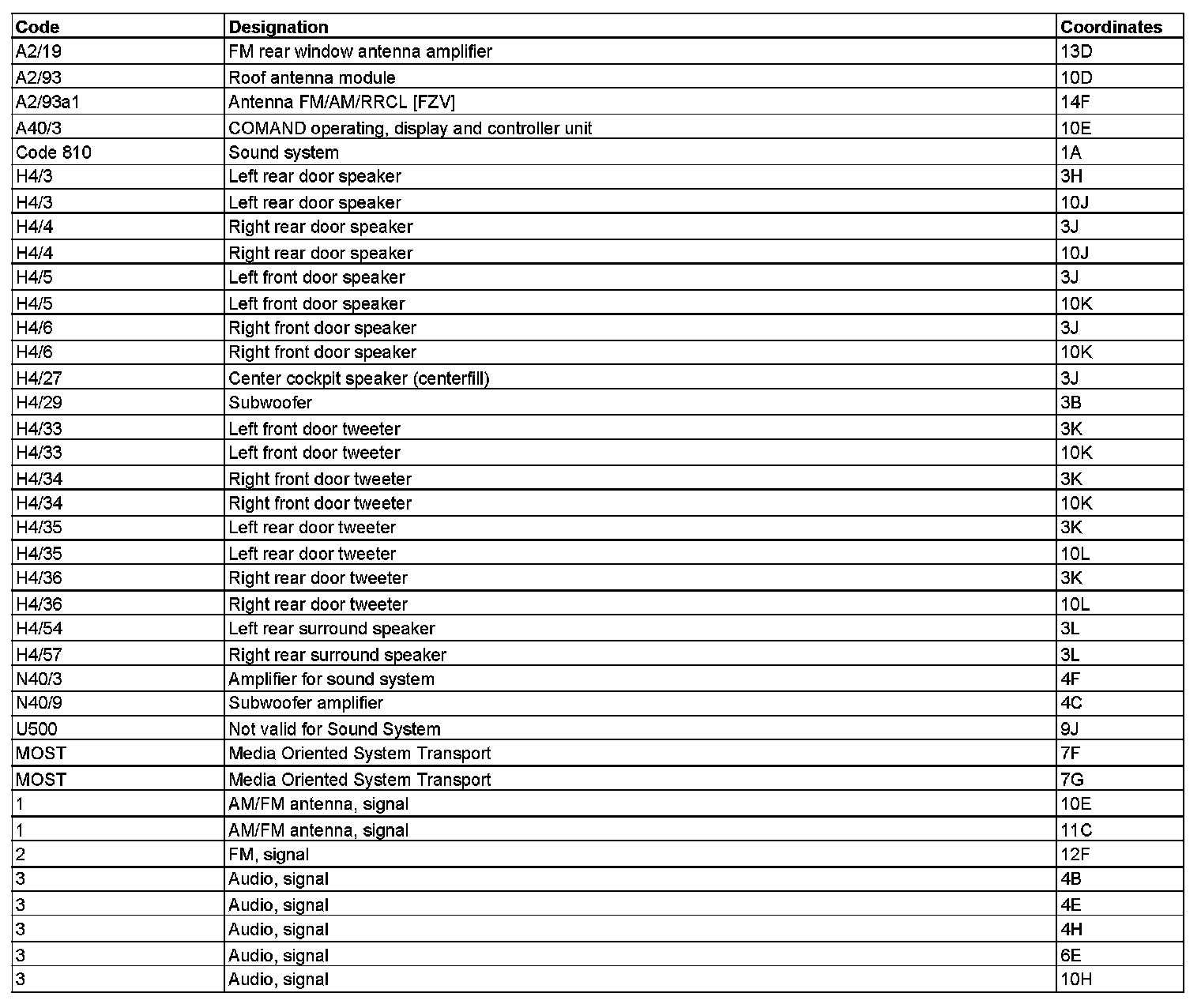

Component Description/Coordinates, A2/19 To 3:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
