PE82.60-P-2058MAA Electrical Function Diagram for Audio Mode, Function

Electrical Function Diagram for Audio Mode, Function PE82.60-P-2058MAA
- with CODE (523) MB Audio 20 radio
- refinement package
- as of model year 2009

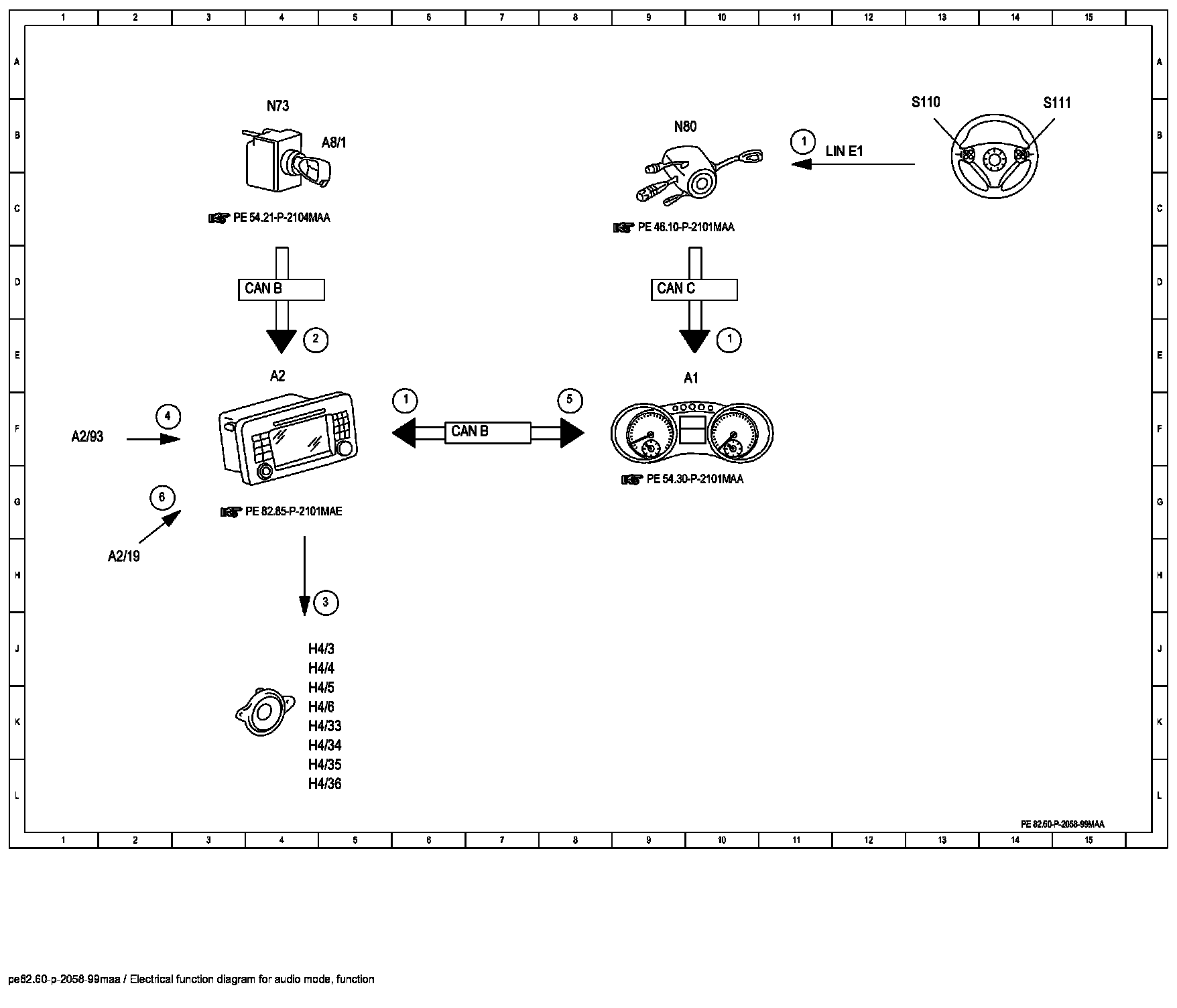

Function Diagram:

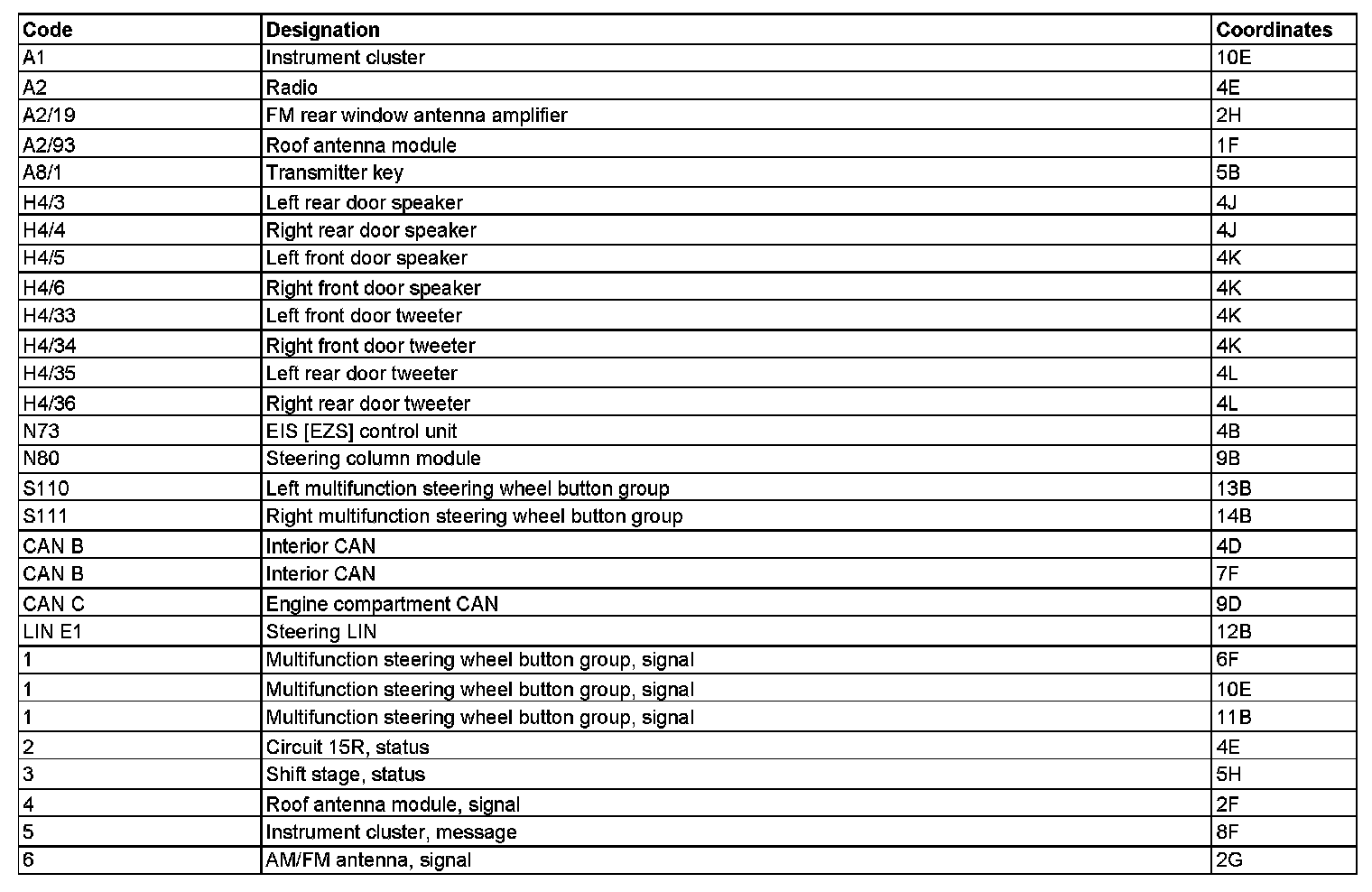

Component Description/Coordinates, A1 To 6:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
