PE47.00-P-2050MAA Electrical Function Schematic for Fuel Supply

Electrical Function Schematic for Fuel Supply PE47.00-P-2050MAA
- with CODE (U42) BLUETEC diesel exhaust gas cleaning
- as of model year 2009

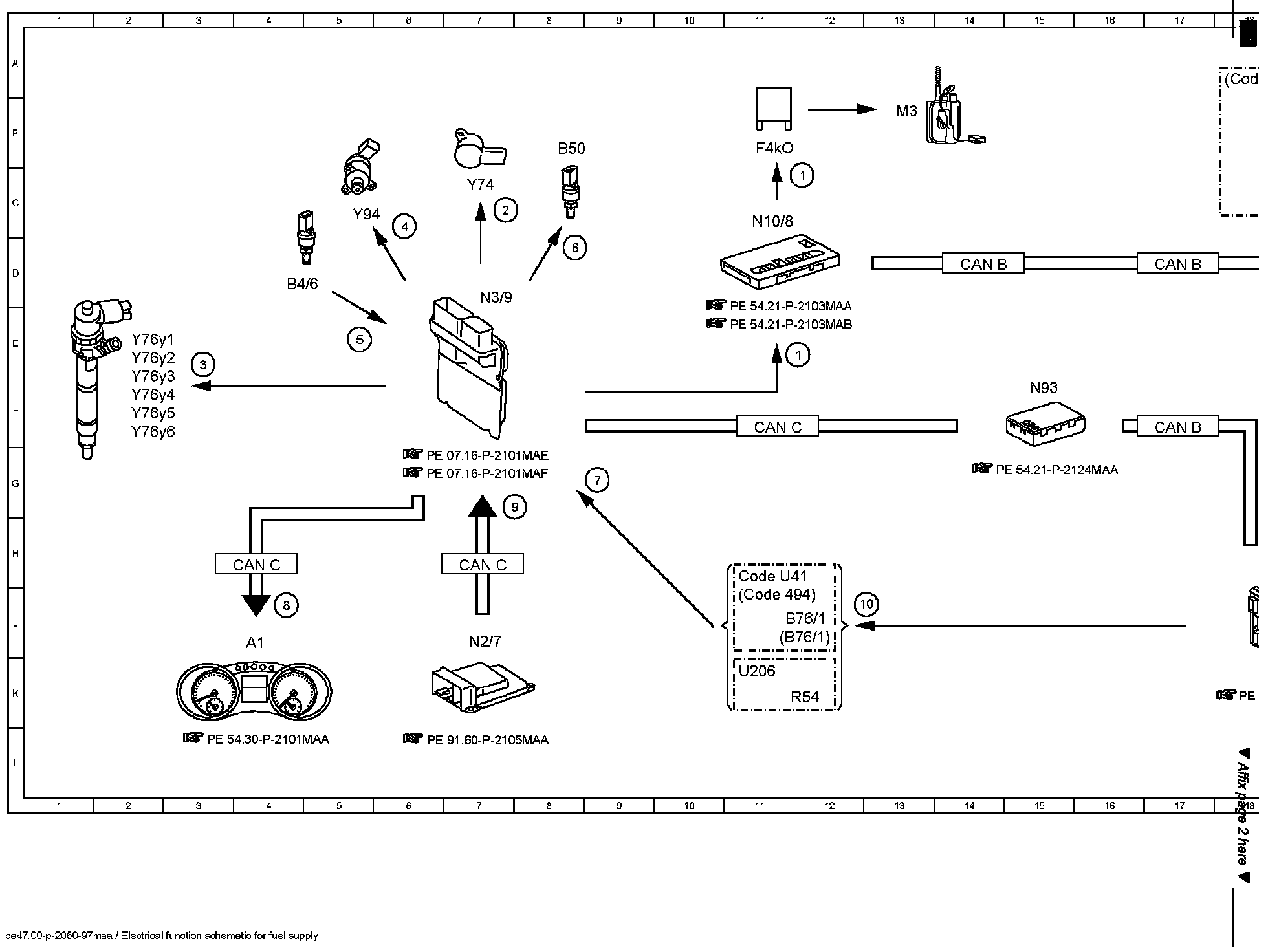

Function Diagram (Part 1):

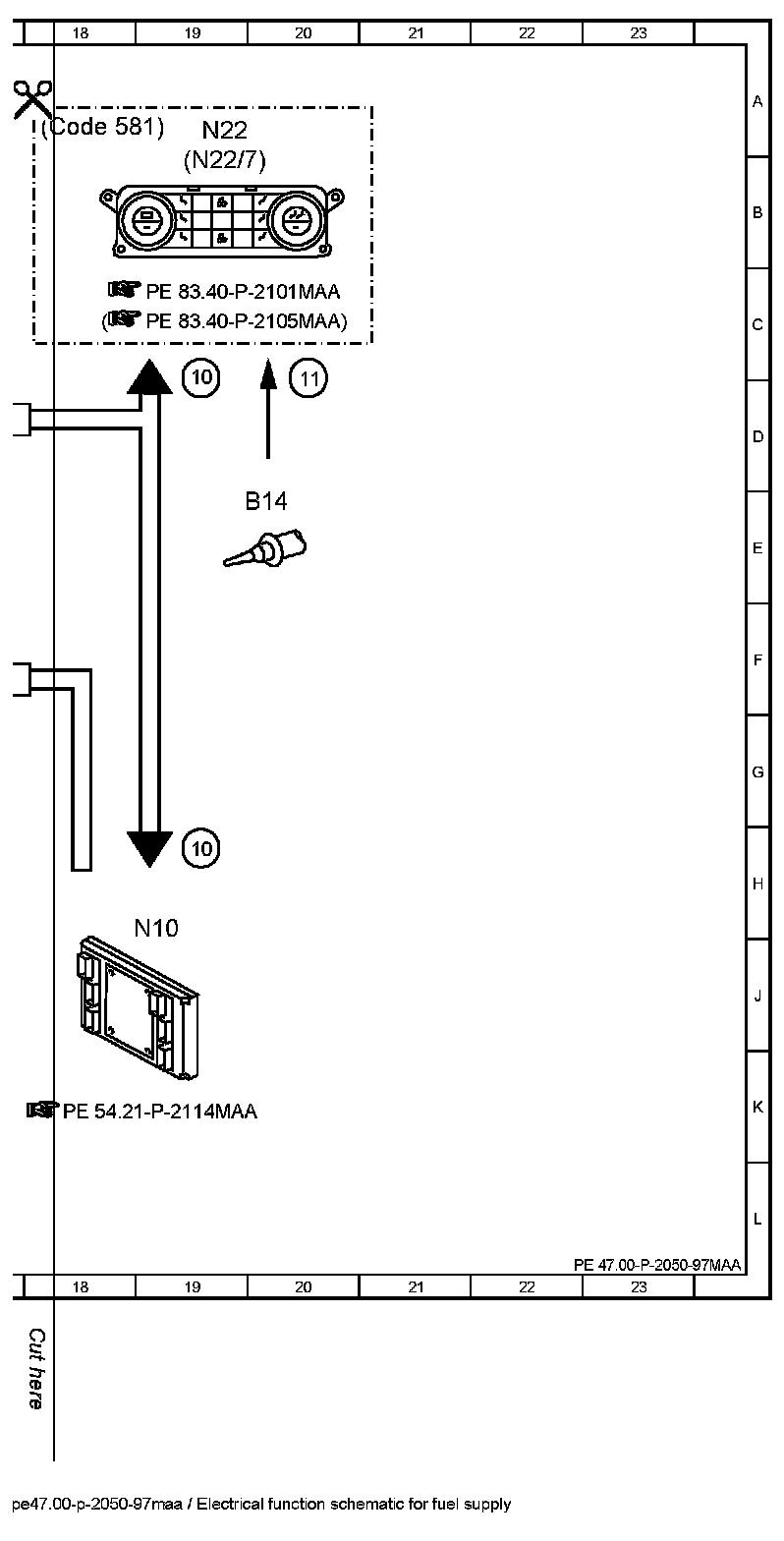

Function Diagram (Part 2):

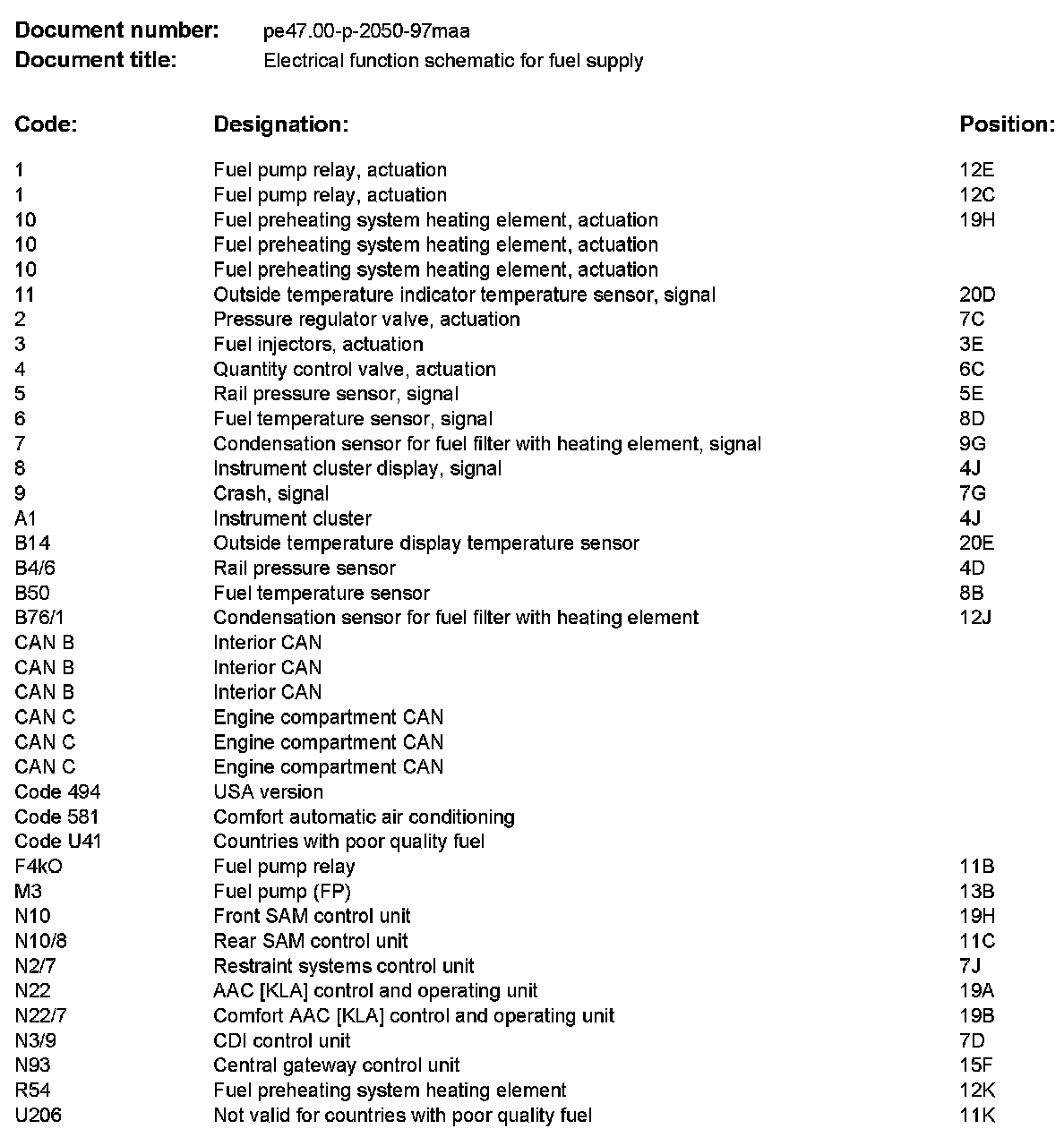

Component Description/Coordinates, 1 To U206:

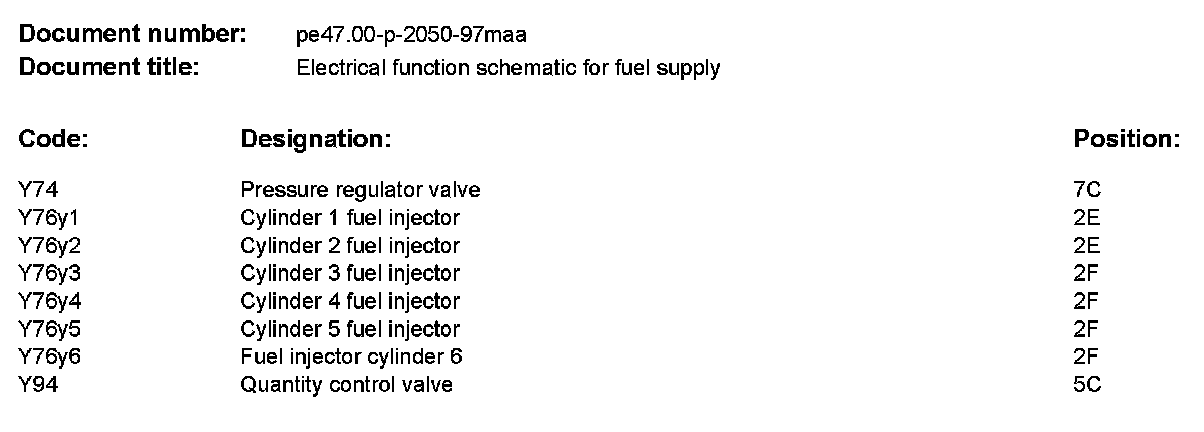

Component Description/Coordinates, Y74 To Y94:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
