Home >> Mercedes Benz Truck >> 2010 >> ML 350 BLUETEC (164.125) V6-3.0L DSL Turbo (642.820) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Function Diagrams >> PE07.16-U-2761MAA Electrical Function Schematic For Common Rail Diesel Injection (CDI), Injection Regulation

PE07.16-U-2761MAA Electrical Function Schematic For Common Rail Diesel Injection (CDI), Injection Regulation

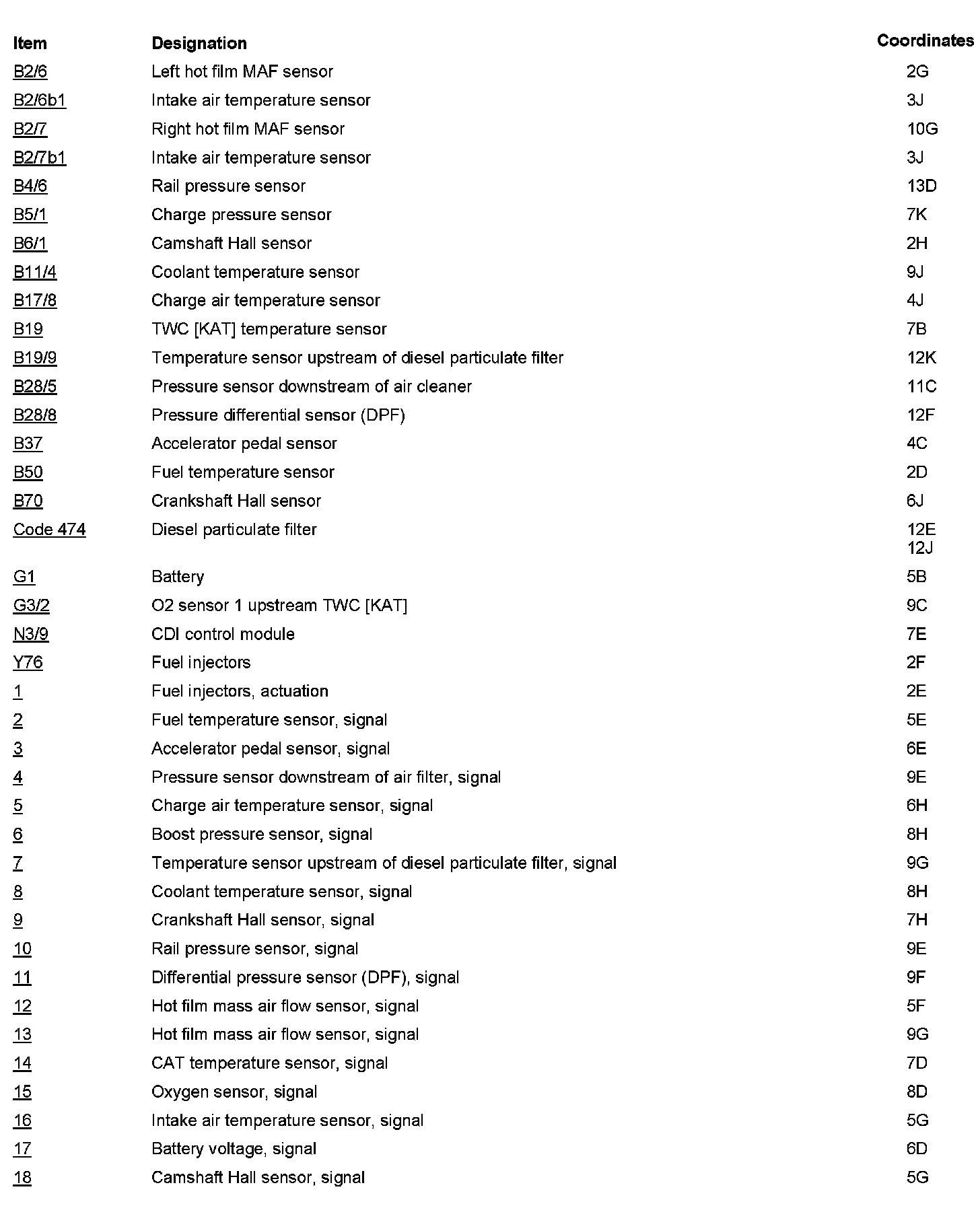

PE07.16-U-2761MAA Electrical Function Schematic For Common Rail Diesel Injection (CDI), Injection Regulation











Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
