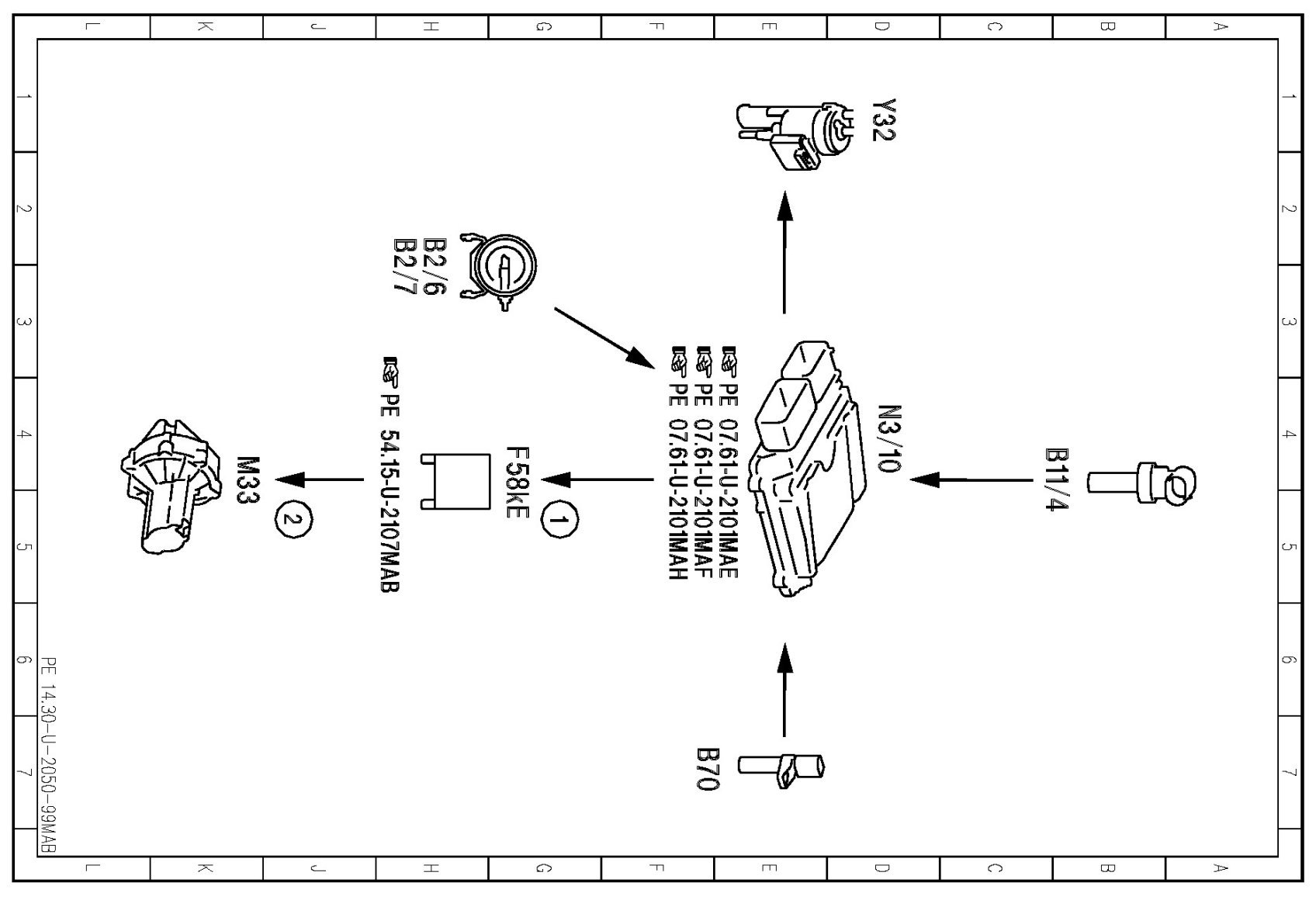

PE14.30-U-2050MAB Electrical Function Diagram For Secondary Air Injection

PE14.30-U-2050MAB Electrical Function Diagram For Secondary Air Injection
- With CODE (U42) BlueTEC diesel exhaust treatment (SCR)

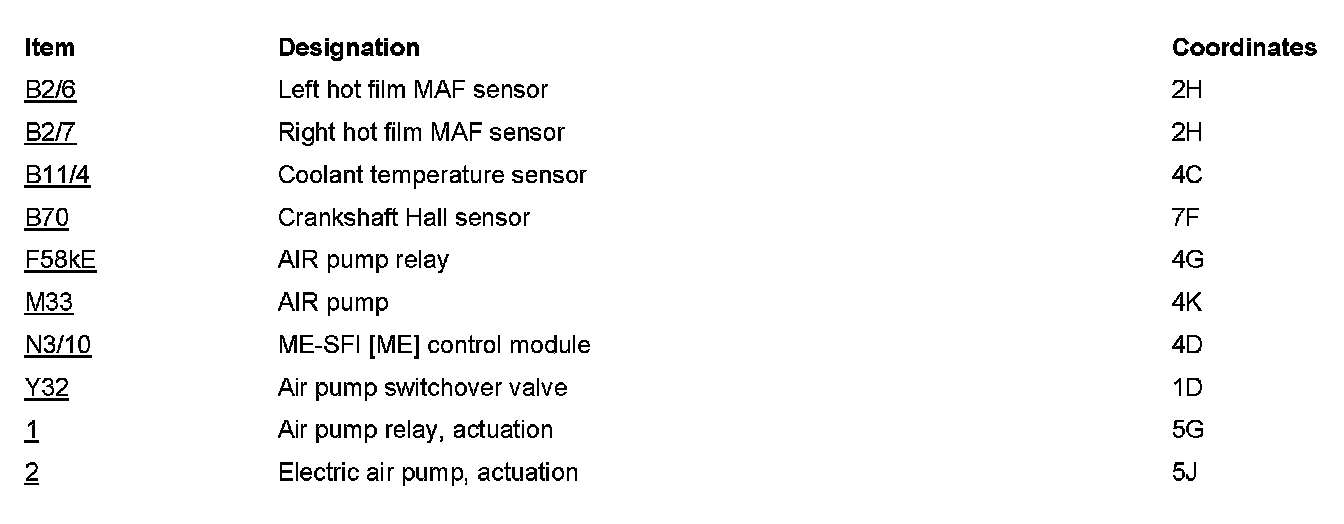

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
