Electrical Function Diagram for Route Guidance By Voice Output (APS), Function PE82.61-P-2052MAA

Electrical Function Diagram for Route Guidance By Voice Output (APS), Function PE82.61-P-2052MAA
- with CODE (525) MB Audio 50 APS radio
- with CODE (511) Audio 50 APS with DVD changer
- refinement package
- as of model year 2009

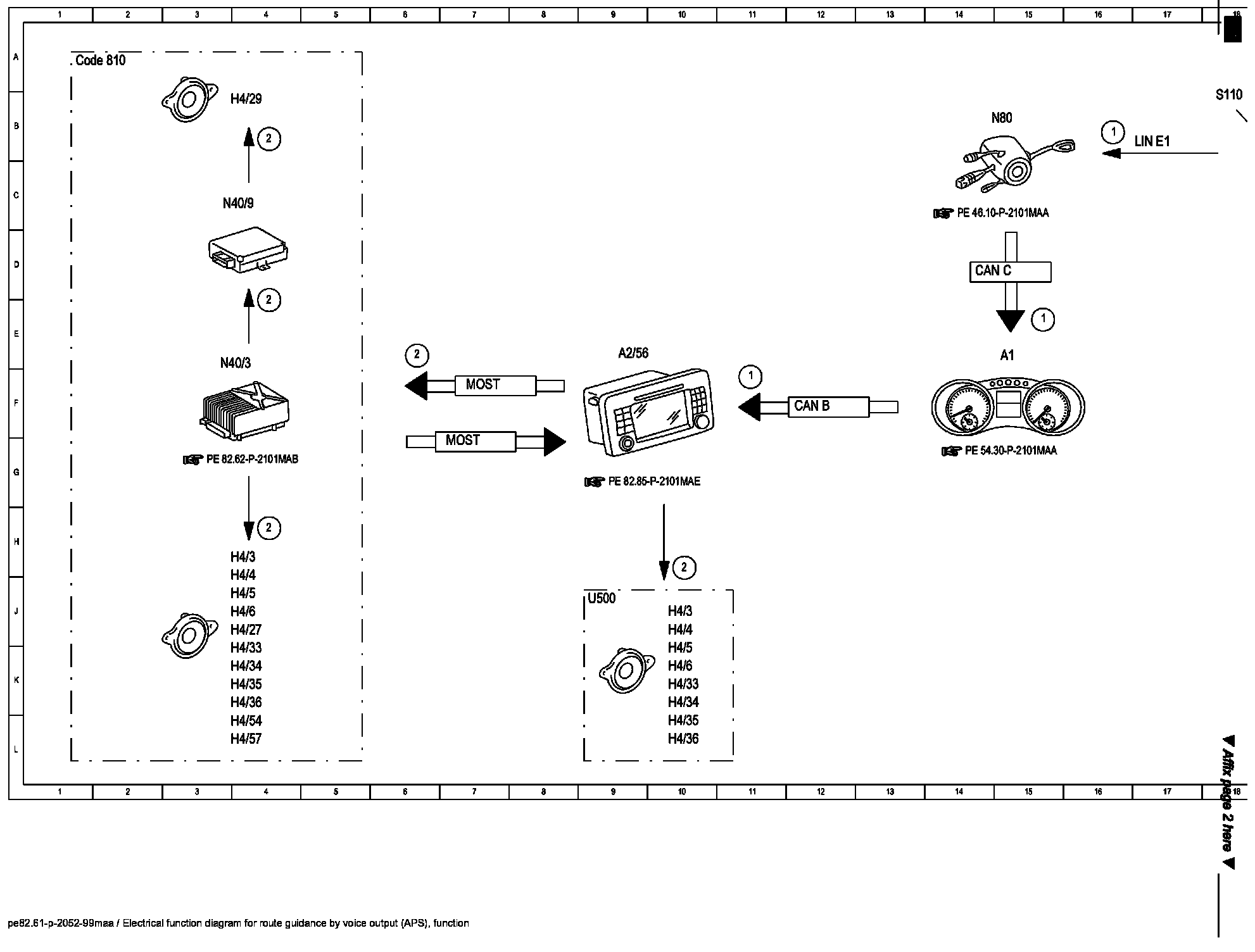

Function Diagram (Part 1):

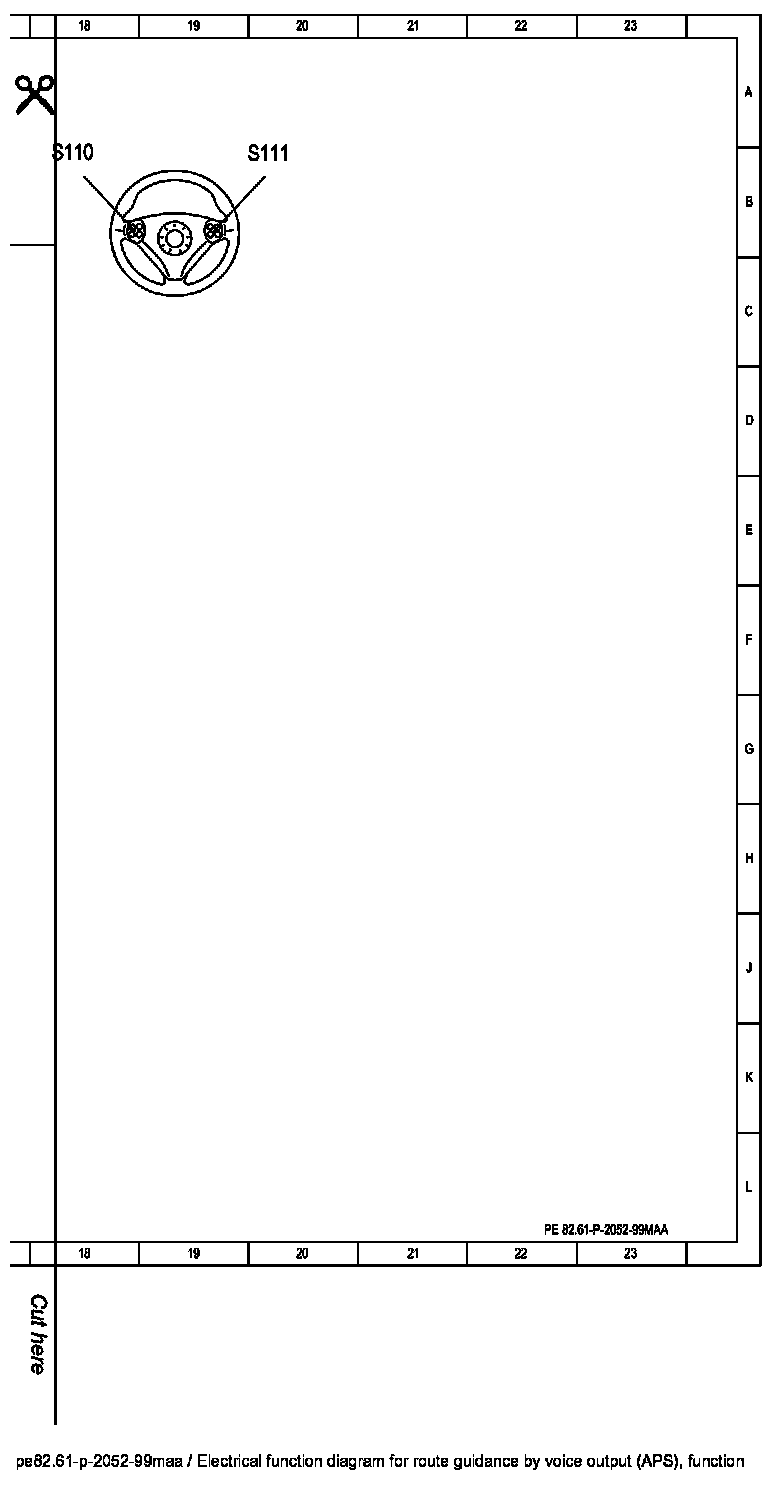

Function Diagram (Part 2):

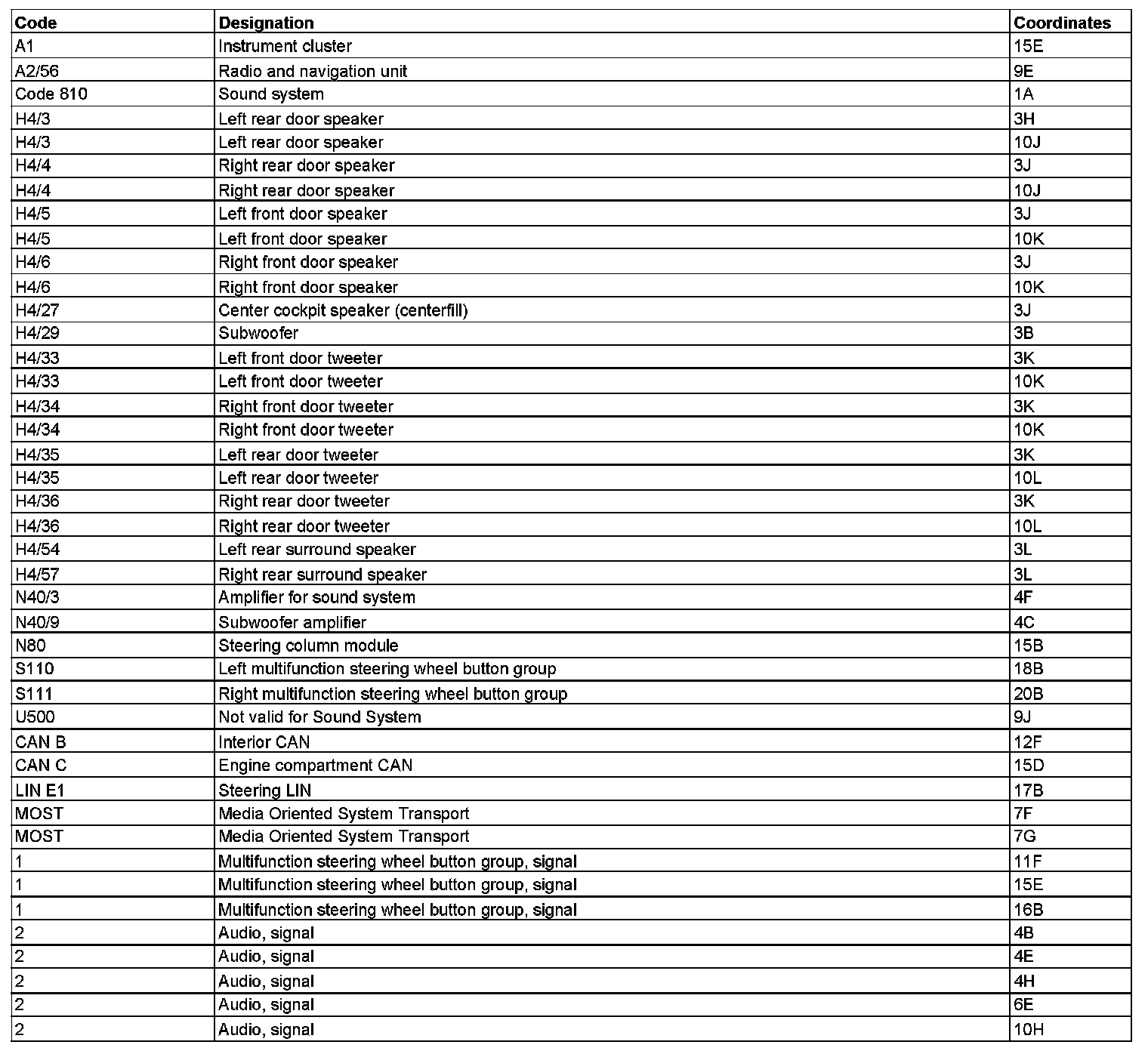

Component Description/Coordinates, A1 To 2:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
