Electrical Function Diagram for Position Finding and Navigation (APS), Function PE82.61-P-2053MAA

Electrical Function Diagram for Position Finding and Navigation (APS), Function PE82.61-P-2053MAA
- with CODE (525) MB Audio 50 APS radio
- with CODE (511) Audio 50 APS with DVD changer
- refinement package
- as of model year 2009

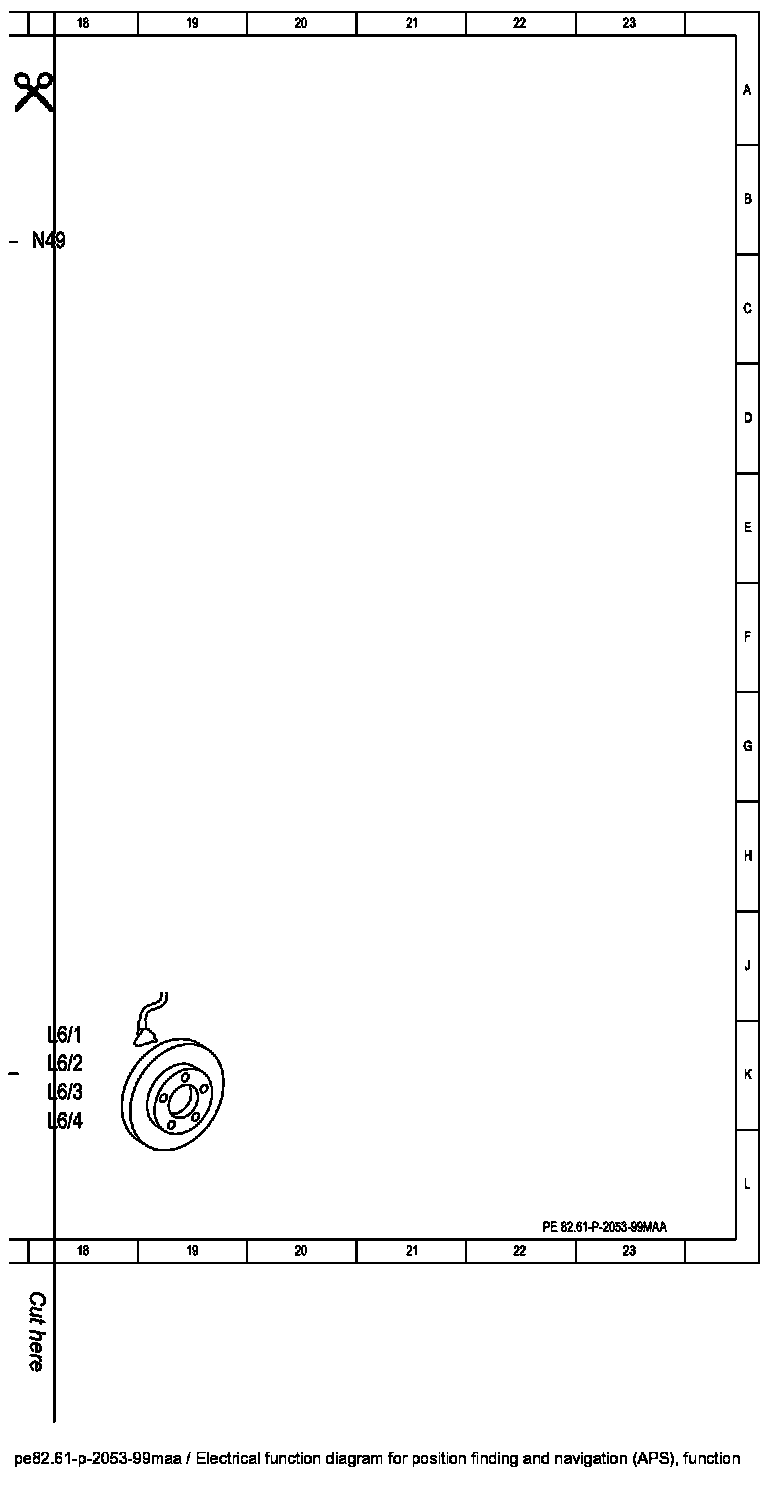

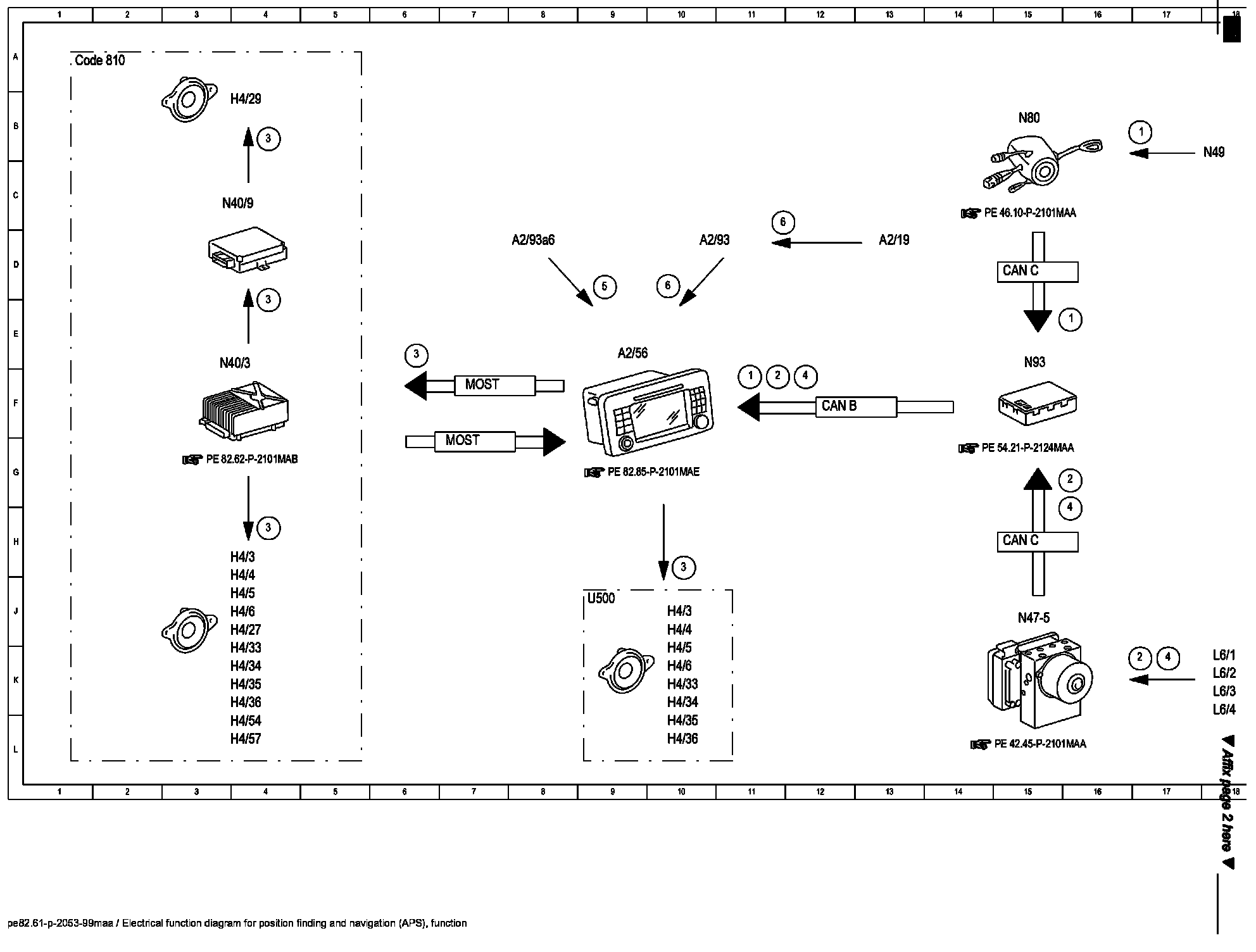

Function Diagram (Part 1):

Function Diagram (Part 2):

Component Description/Coordinates, A2/19 To 6:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
