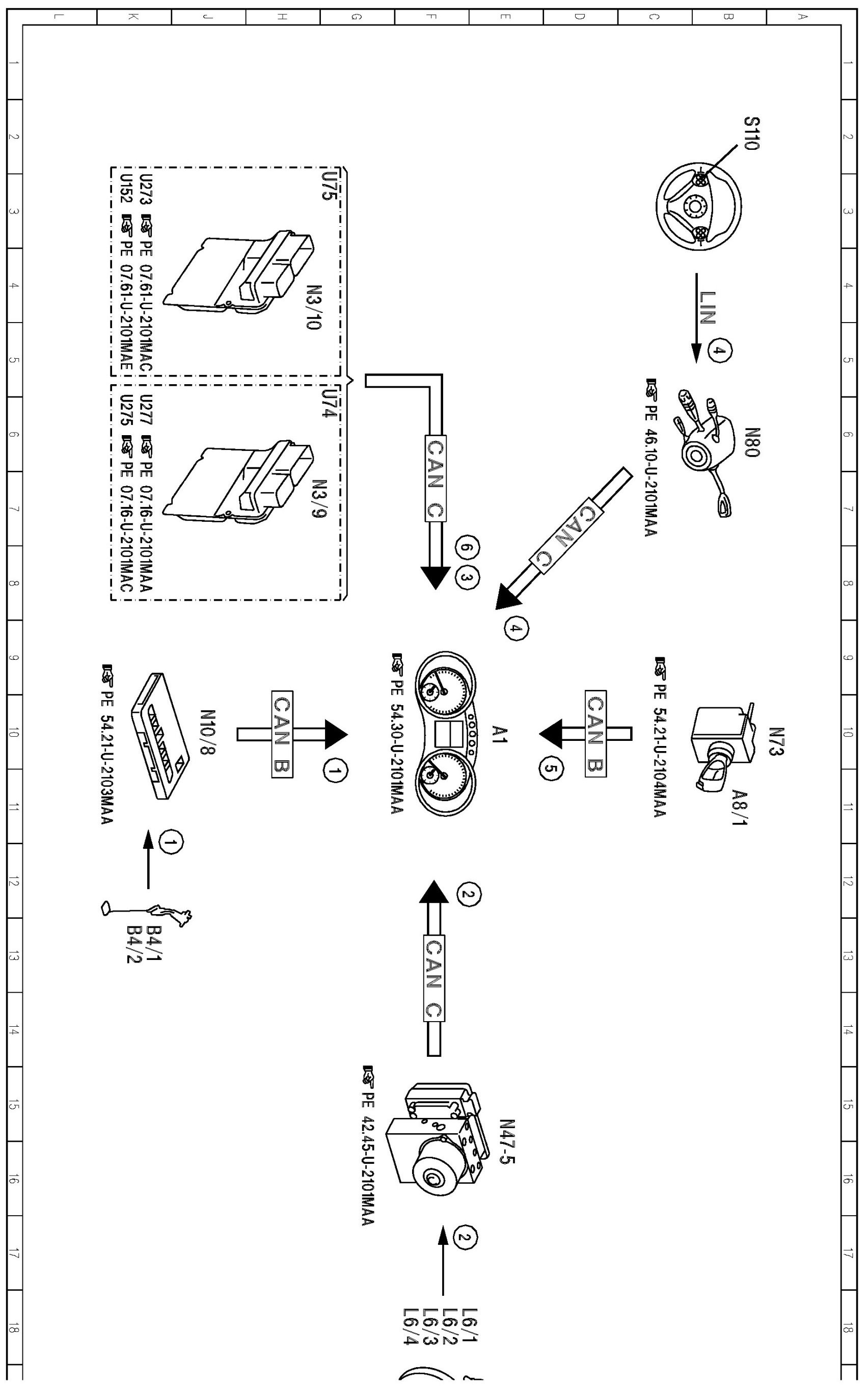

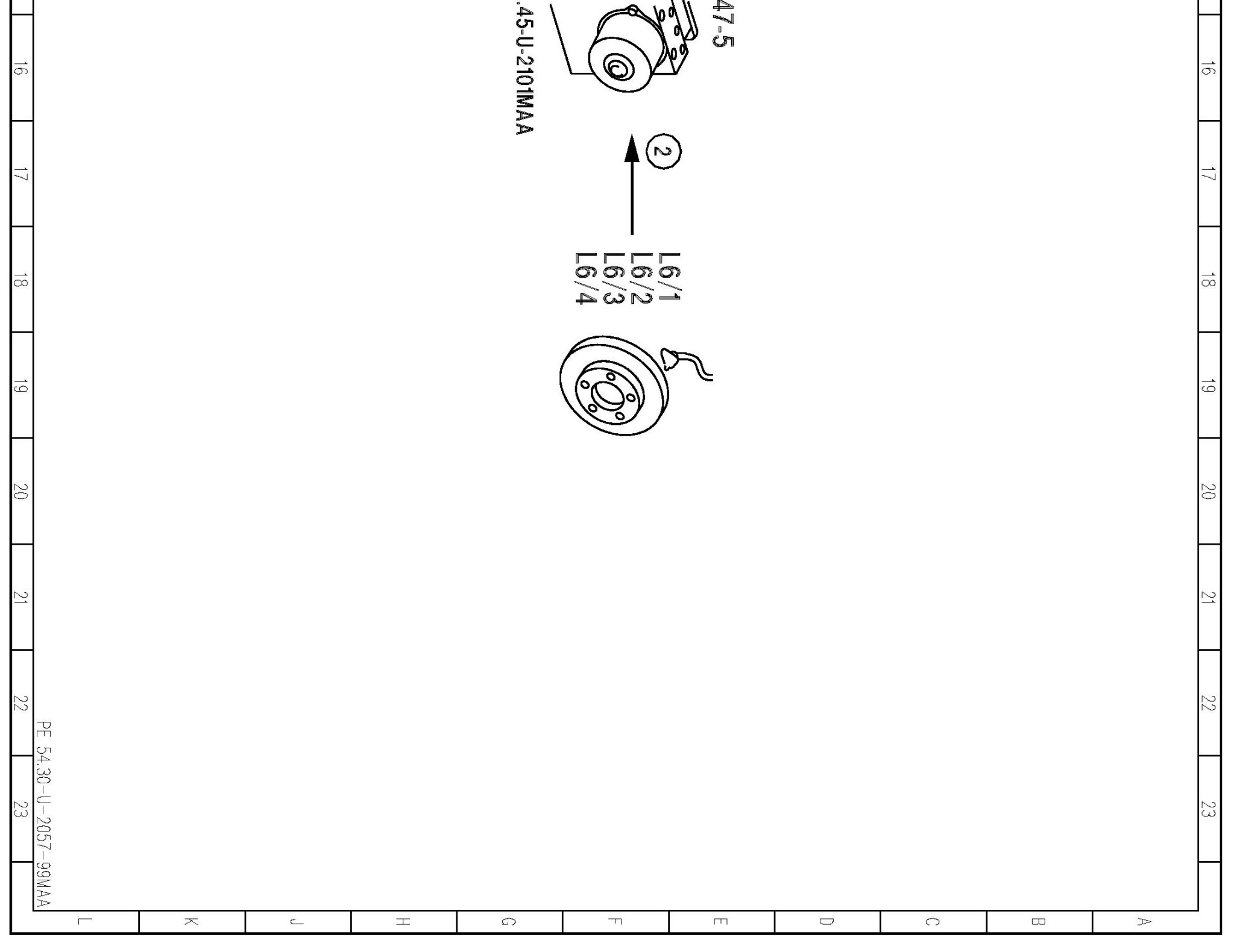

PE54.30-U-2057MAA Electrical Function Schematic For Instrument Cluster, Trip Computer

PE54.30-U-2057MAA Electrical Function Schematic For Instrument Cluster, Trip Computer

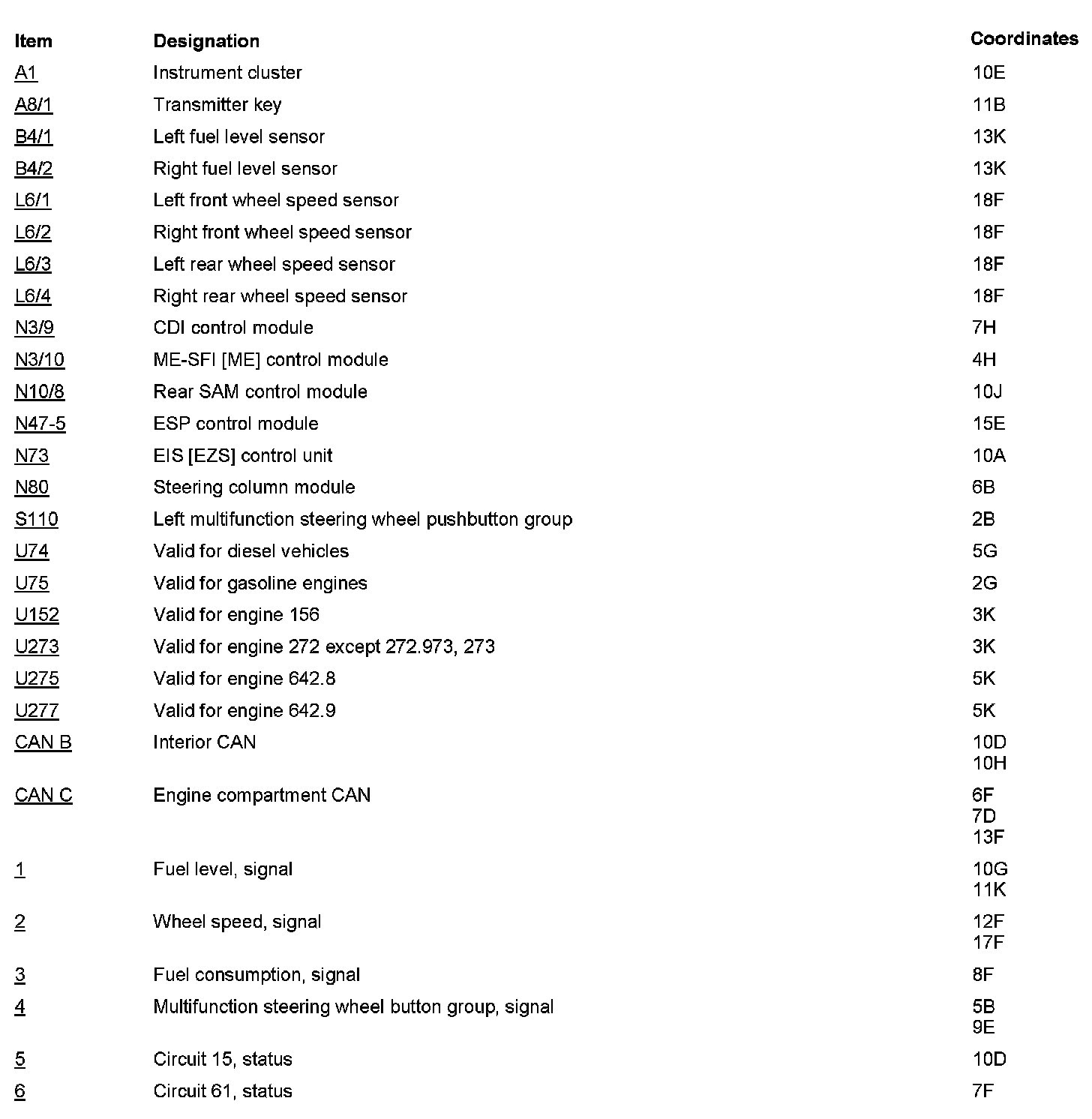

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
