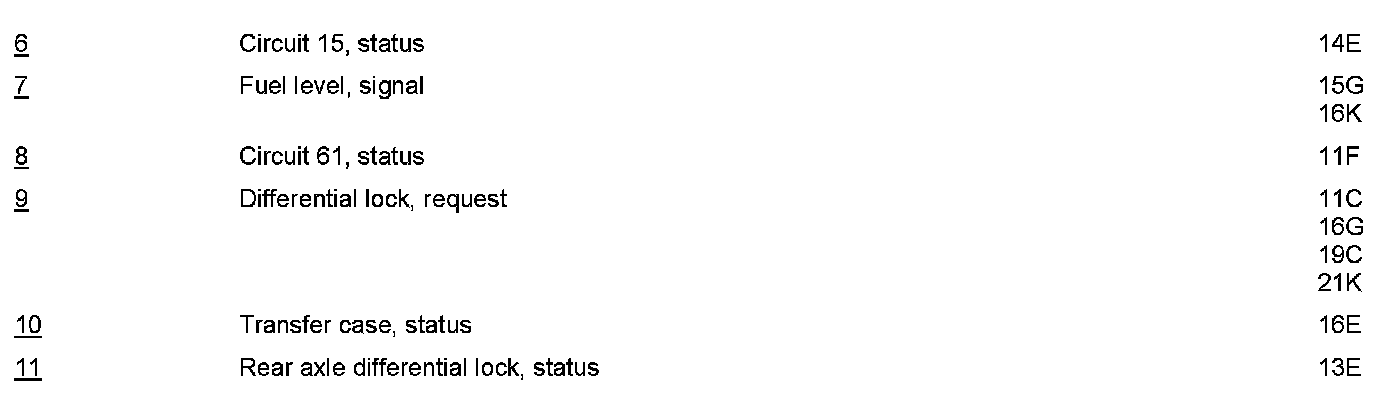

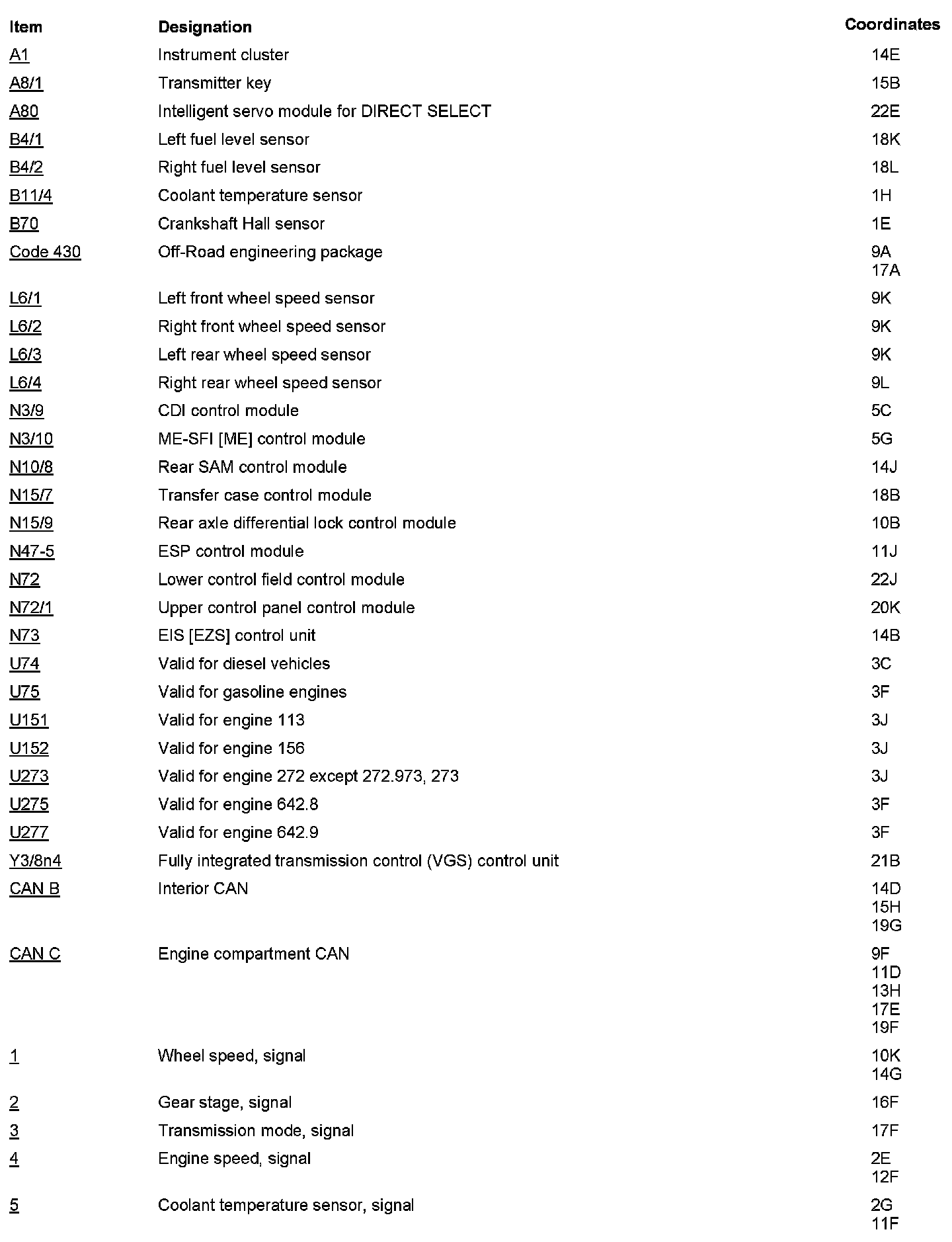

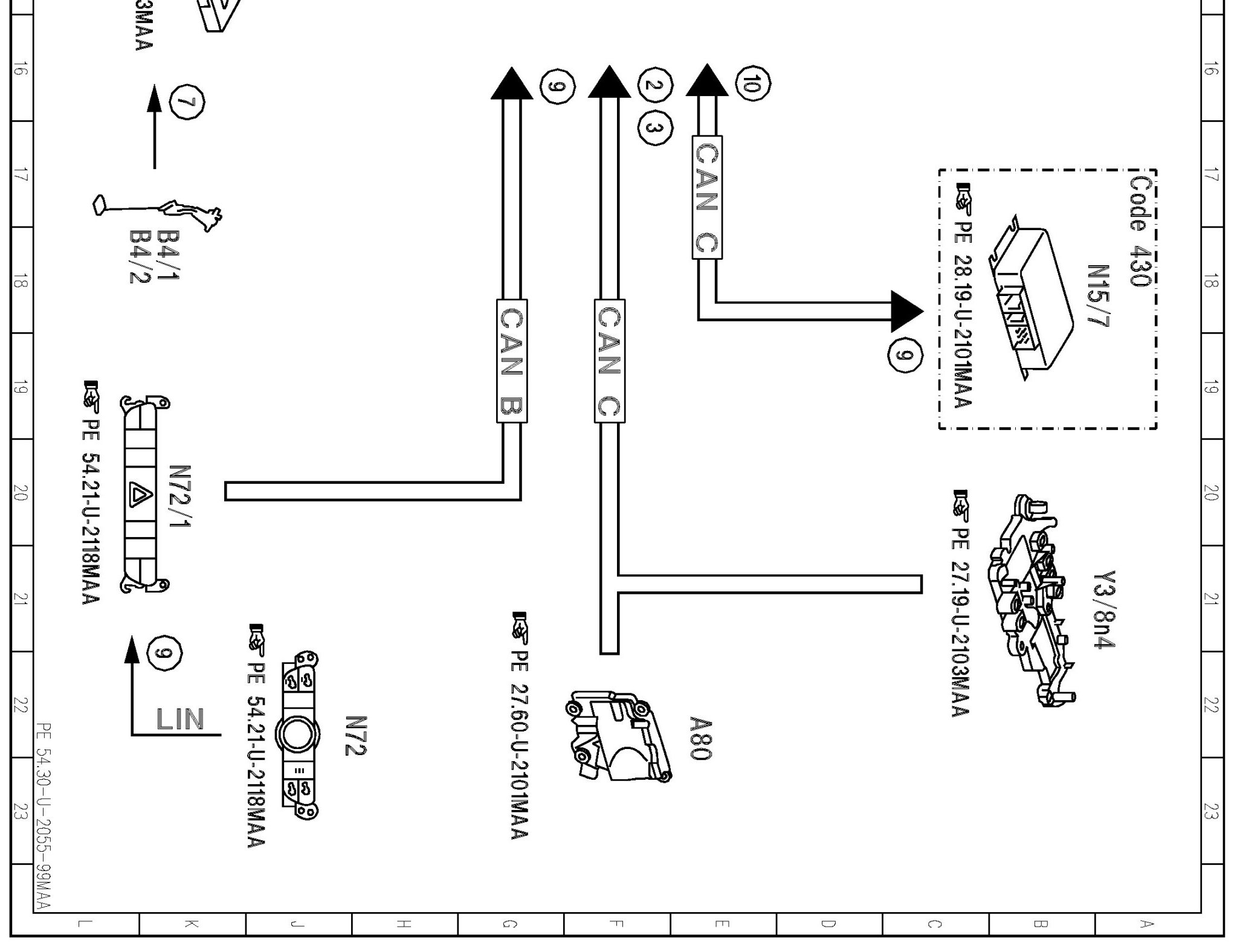

PE54.30-U-2055MAA Electrical Function Diagram For Instrument Cluster Operation Status Display



PE54.30-U-2055MAA Electrical Function Diagram For Instrument Cluster Operation Status Display



















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
