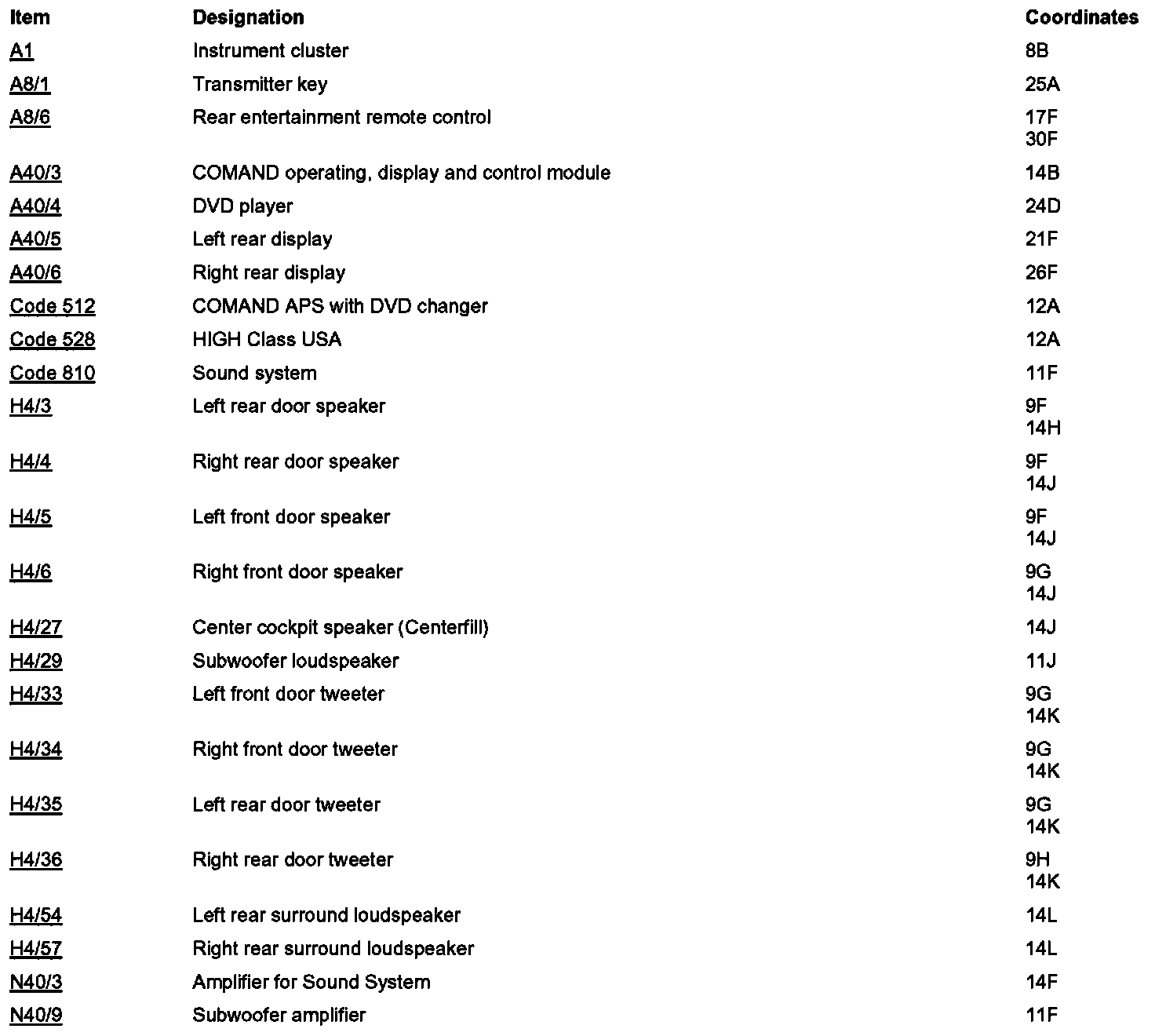

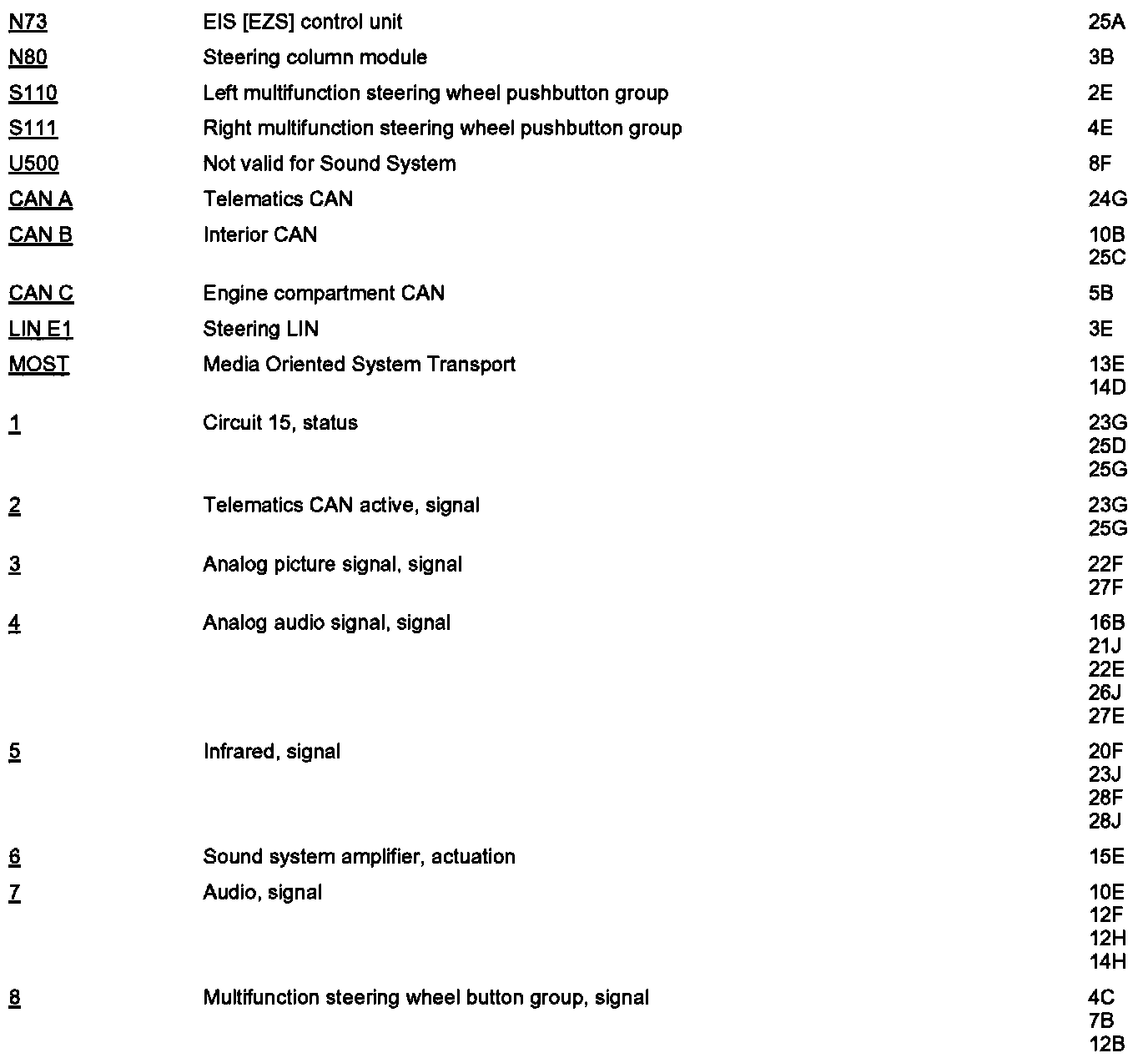

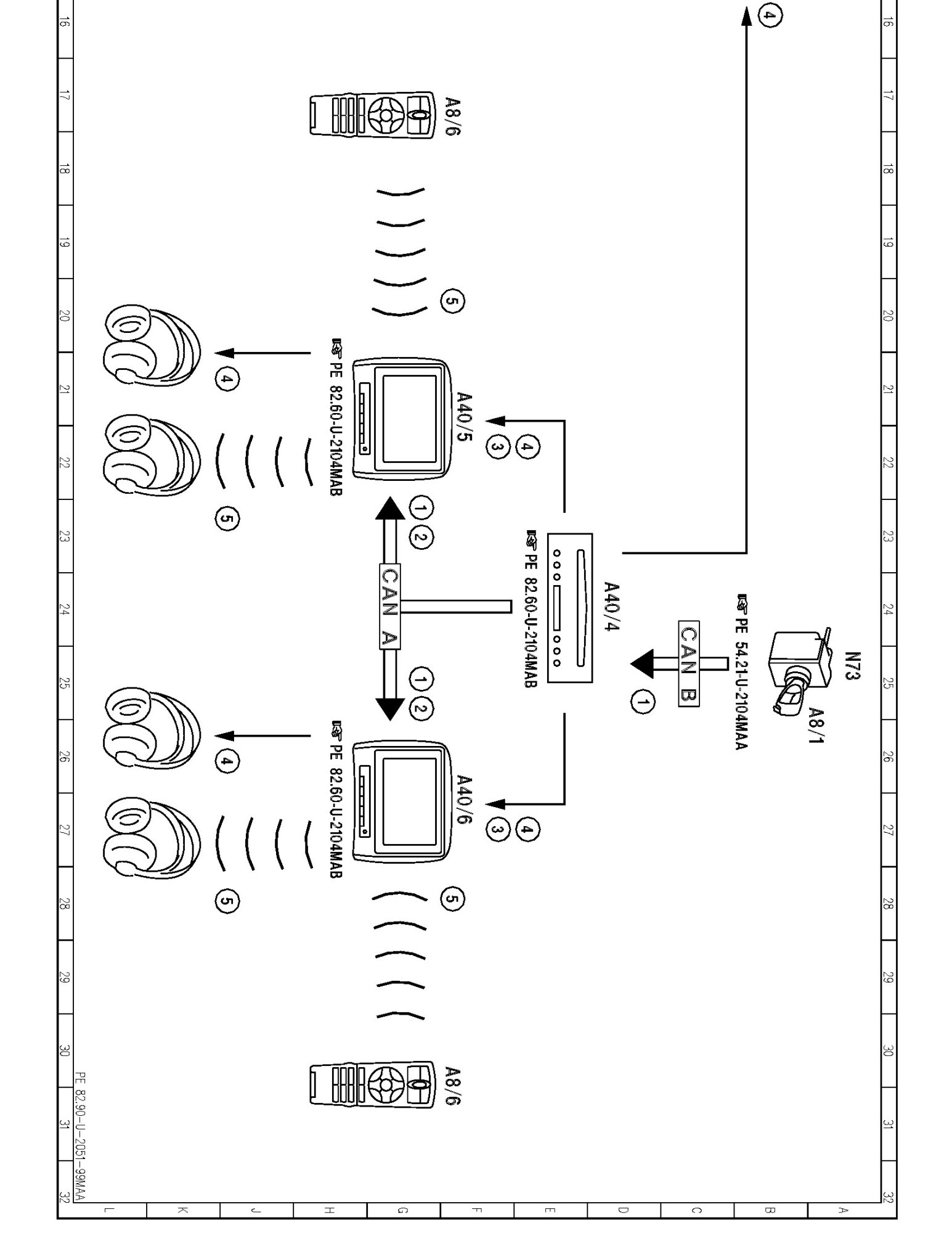

PE82.90-U-2051MAA Electrical Function Schematic For Rear Entertainment Disk Applications

PE82.90-U-2051MAA Electrical Function Schematic For Rear Entertainment Disk Applications
- with CODE (864) Rear entertainment system
- with CODE (866) Preinstallation for rear entertainment system



















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
