PE30.30-P-2051MAB Electrical Function Schematic for Cruise Control (CC)

Electrical Function Schematic for Cruise Control (CC) PE30.30-P-2051MAB
- with CODE (440) Cruise control
- as of model year 2009

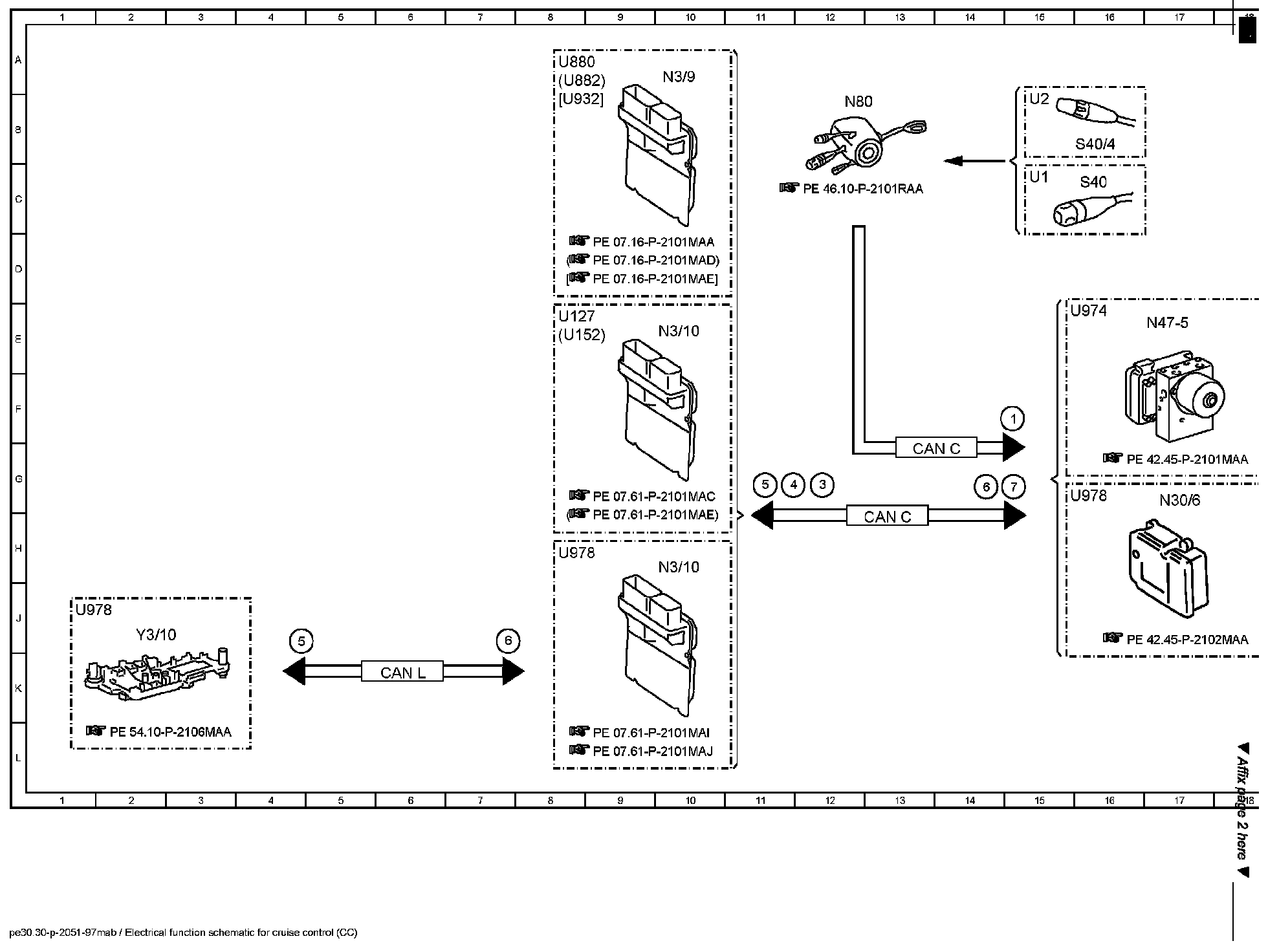

Function Diagram (Part 1):

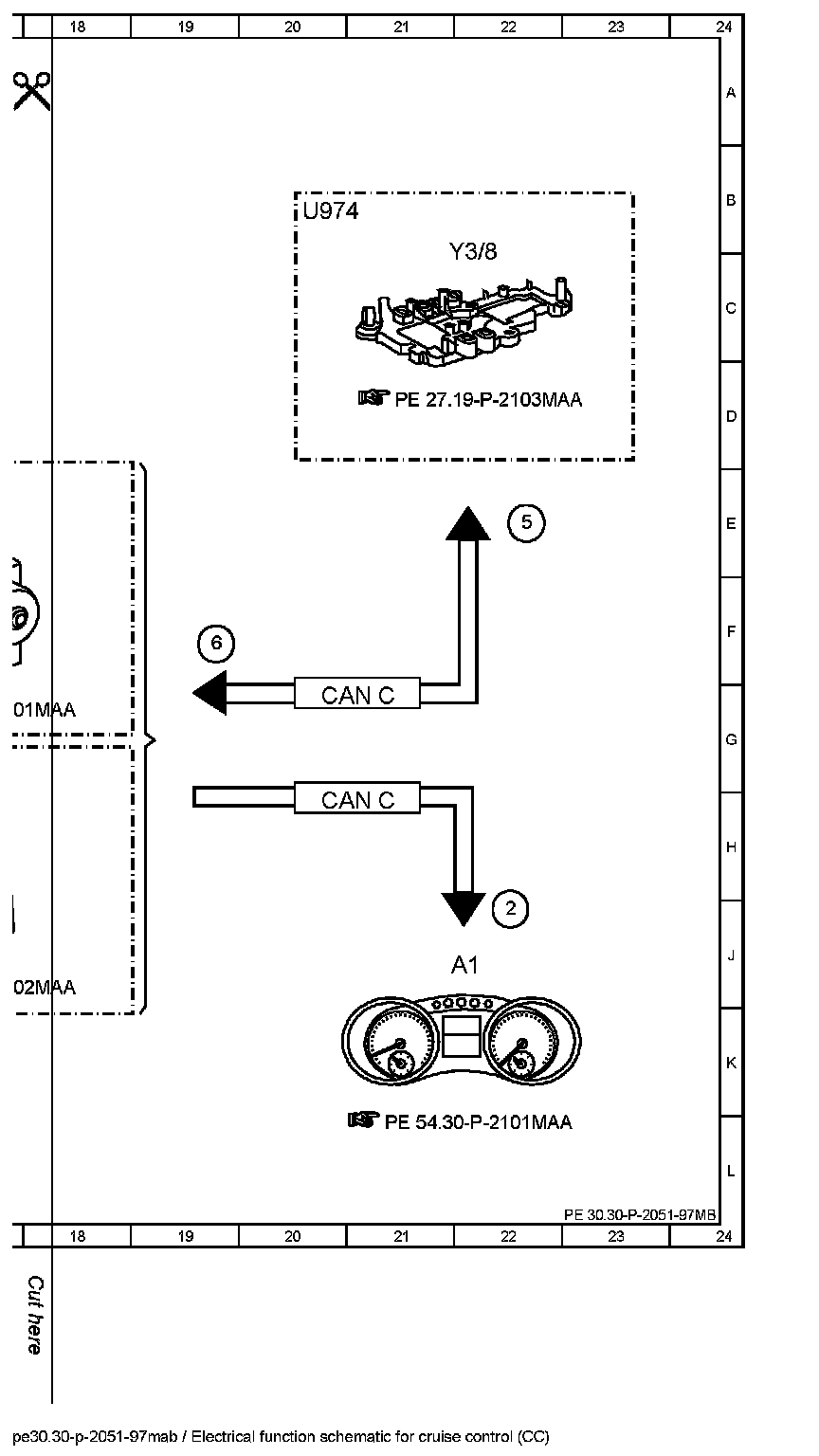

Function Diagram (Part 2):

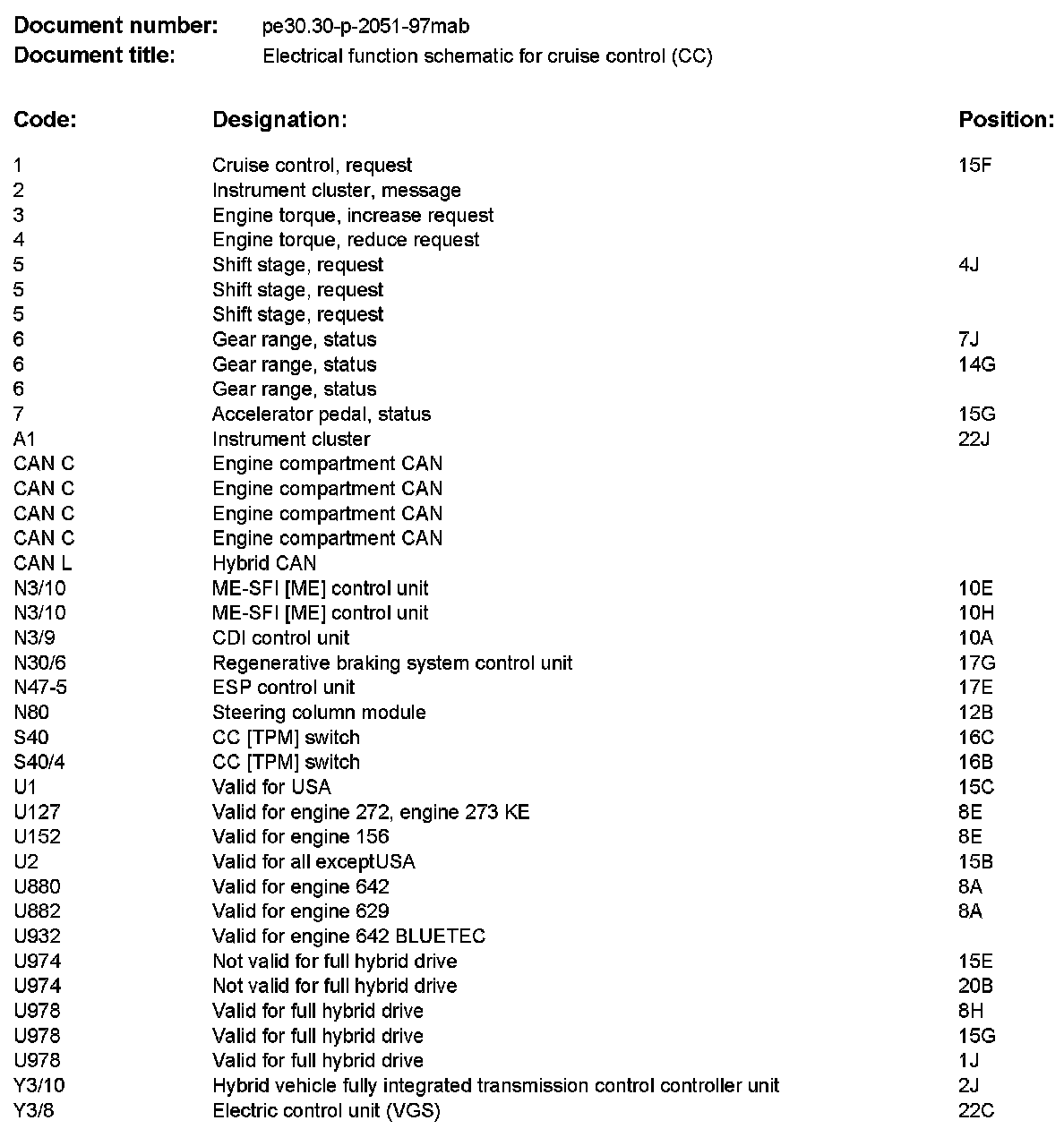

Component Description/Coordinates, 1 To Y3/8:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
