PE82.70-P-2054MAB Electrical Function Schematic for Mobile Phone, Switch On and Switch Off Characteristics

Electrical Function Schematic for Mobile Phone, Switch On and Switch Off Characteristics PE82.70-P-2054MAB
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (498) Japan version
- basic telephony
- refinement package
- as of model year 2009

Function Diagram:

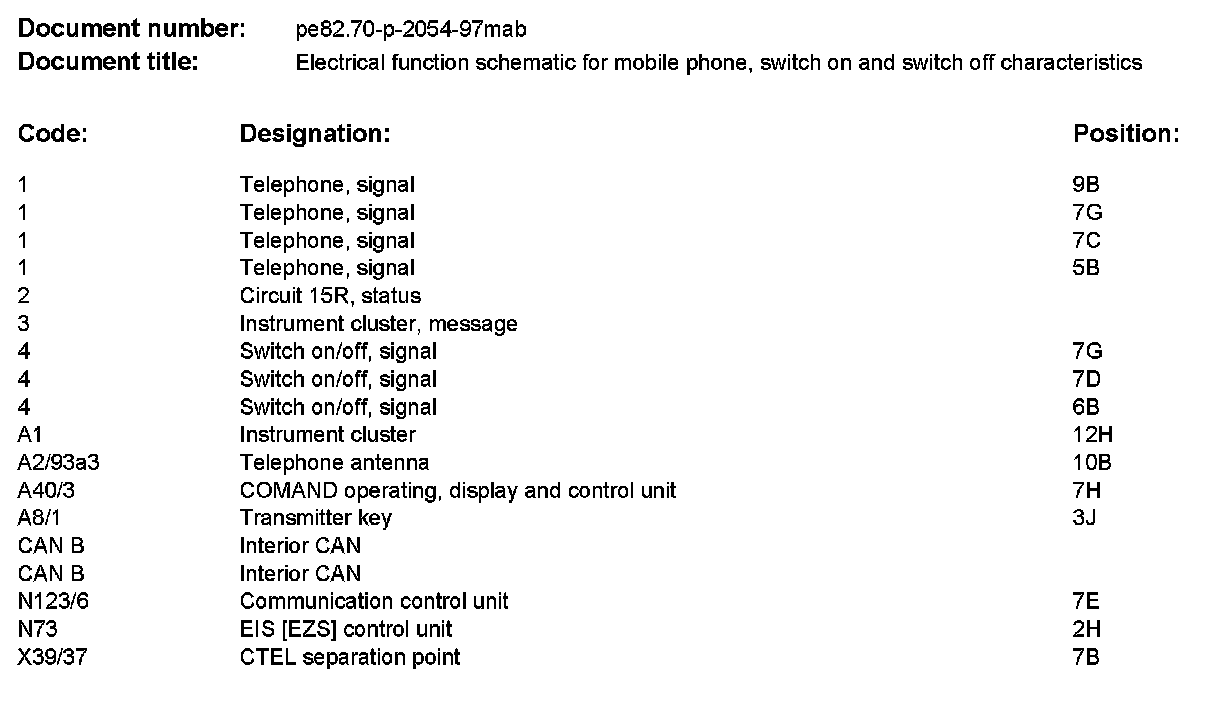

Component Description/Coordinates, 1 To X39/37:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
