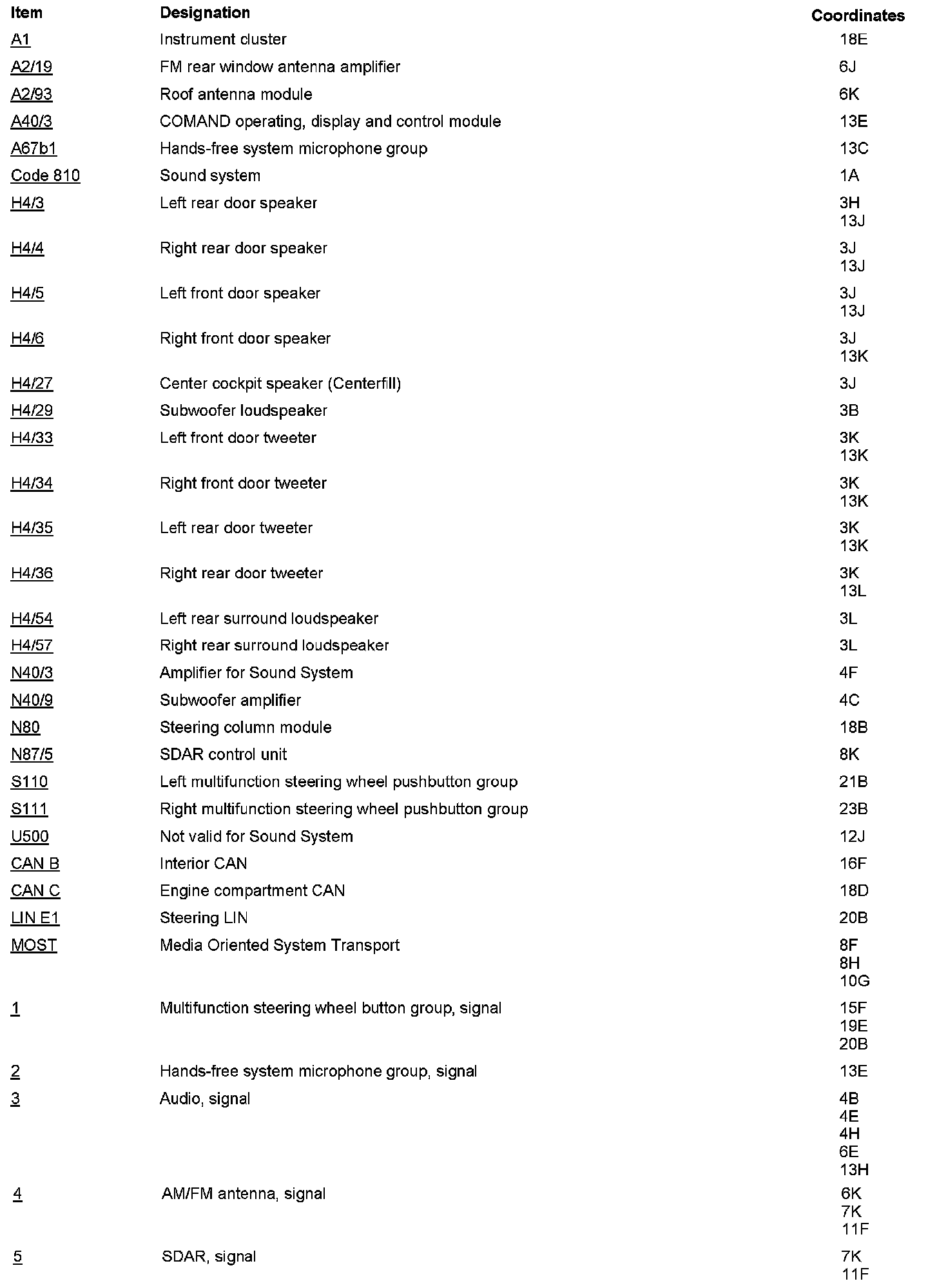

PE82.85-U-2060MAA Electrical Function Schematic For HD Radio, Function

PE82.85-U-2060MAA Electrical Function Schematic For HD Radio, Function
- with CODE (517) HD Radio














Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
