PE82.85-P-2065MAB Electrical Function Diagram for TV Mode, Function



Electrical Function Diagram for TV Mode, Function PE82.85-P-2065MAB
- with CODE (865) TV tuner
- refinement package
- as of model year 2009

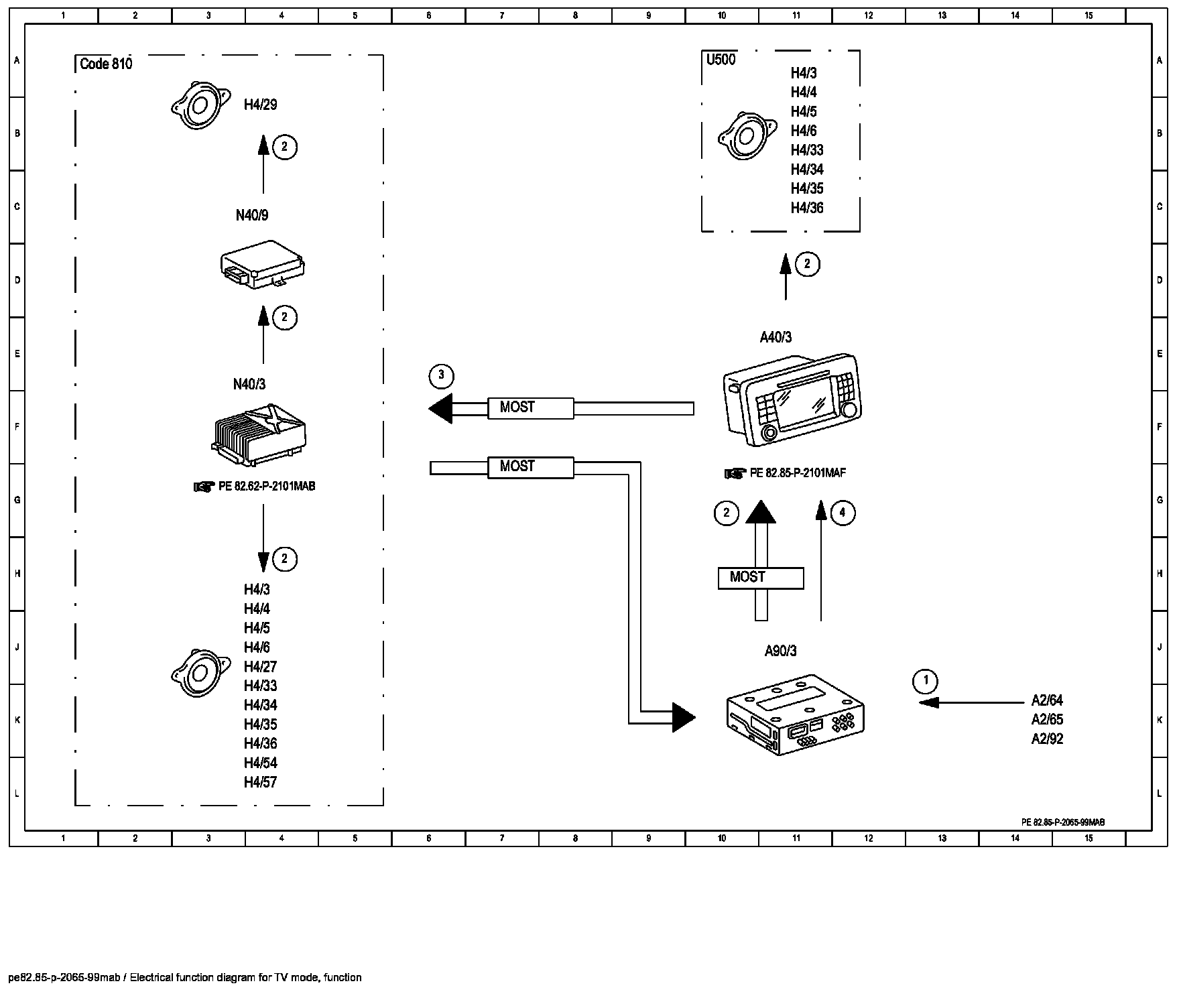

Function Diagram:

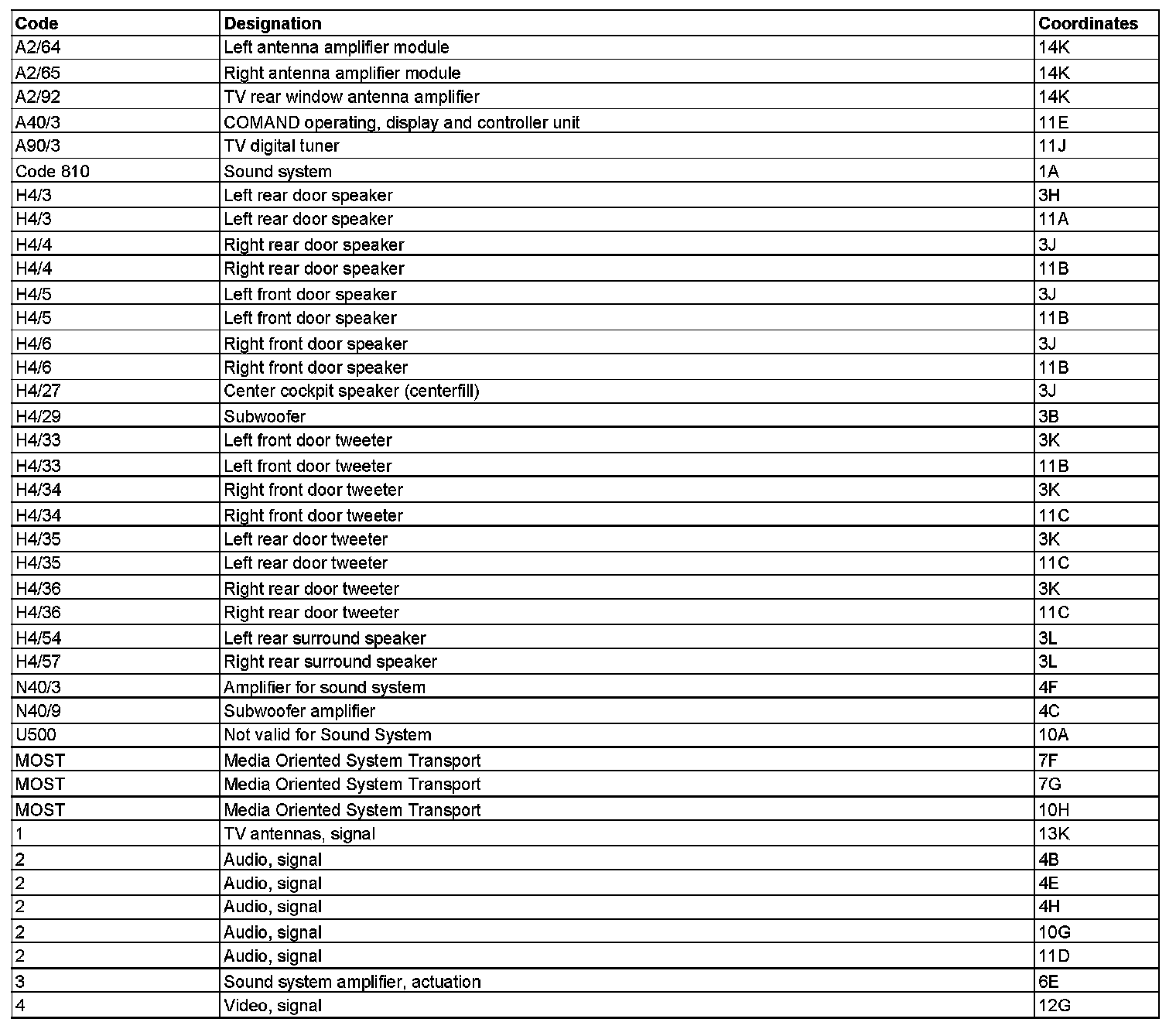

Component Description/Coordinates, A2/64 To 4:






Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
