PE82.85-P-2061MAB Electrical Function Diagram for Route Guidance By Voice Output (COMAND), Function

Electrical Function Diagram for Route Guidance By Voice Output (COMAND), Function PE82.85-P-2061MAB
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (498) Japan version
- refinement package
- as of model year 2009

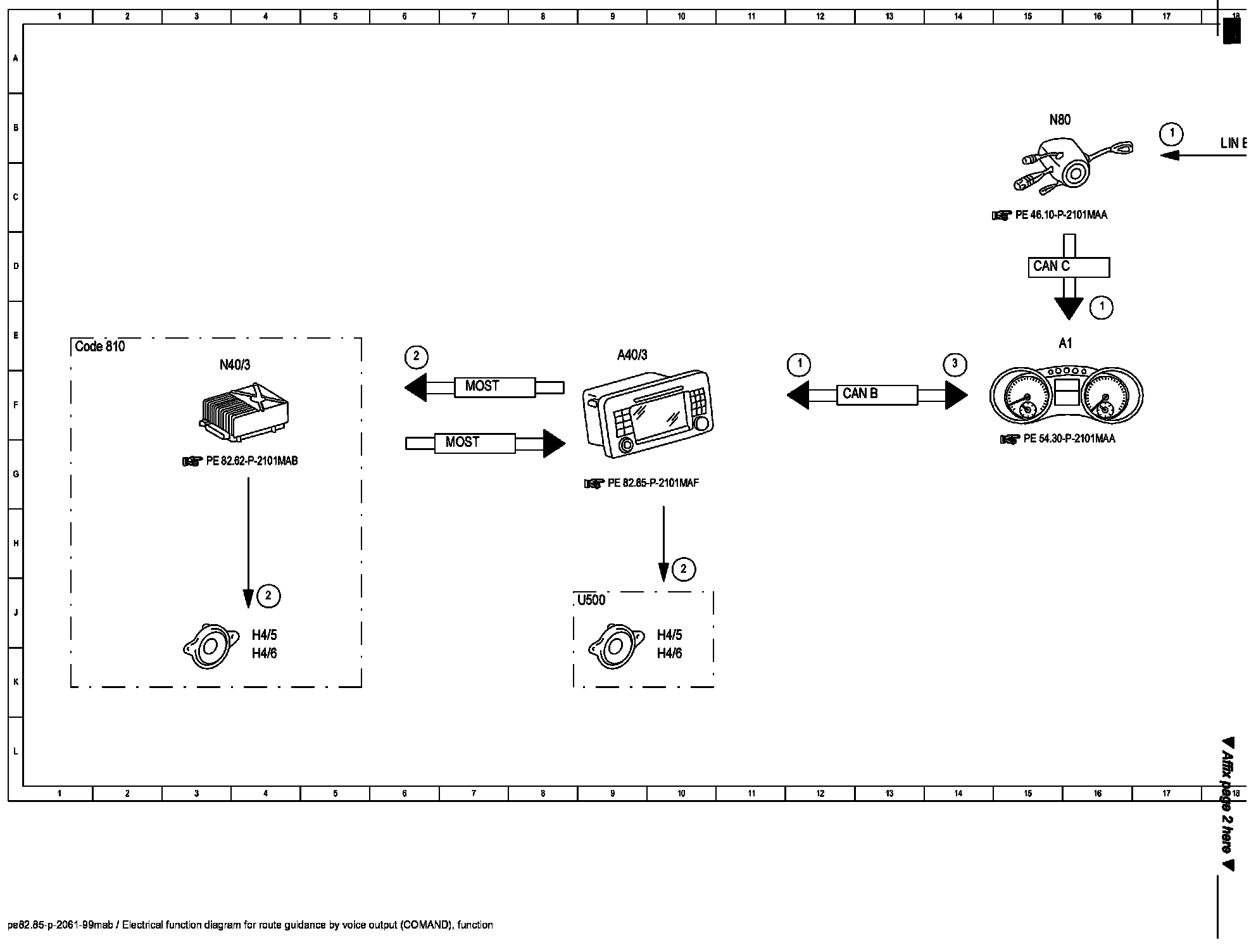

Function Diagram (Part 1):

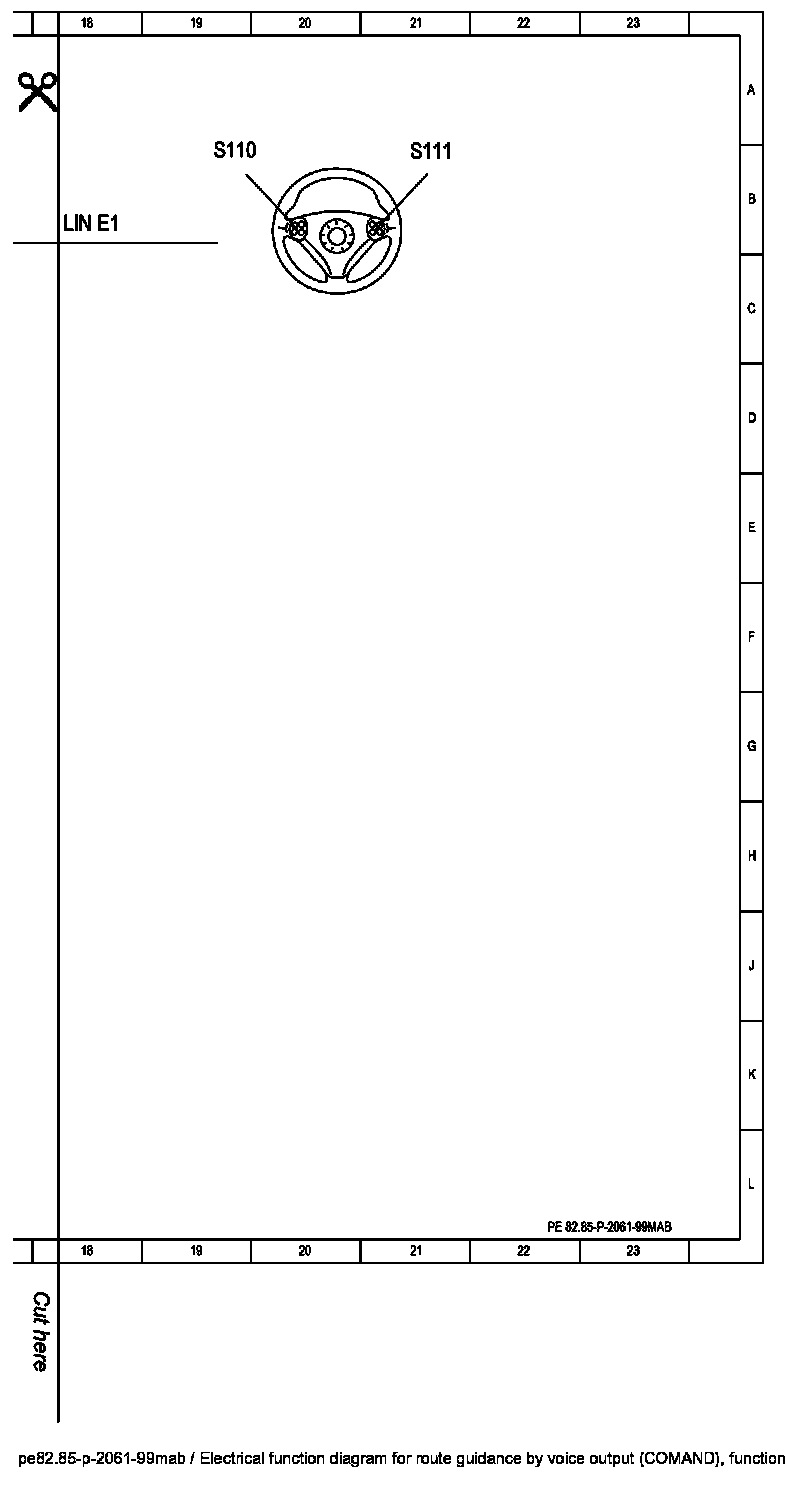

Function Diagram (Part 2):

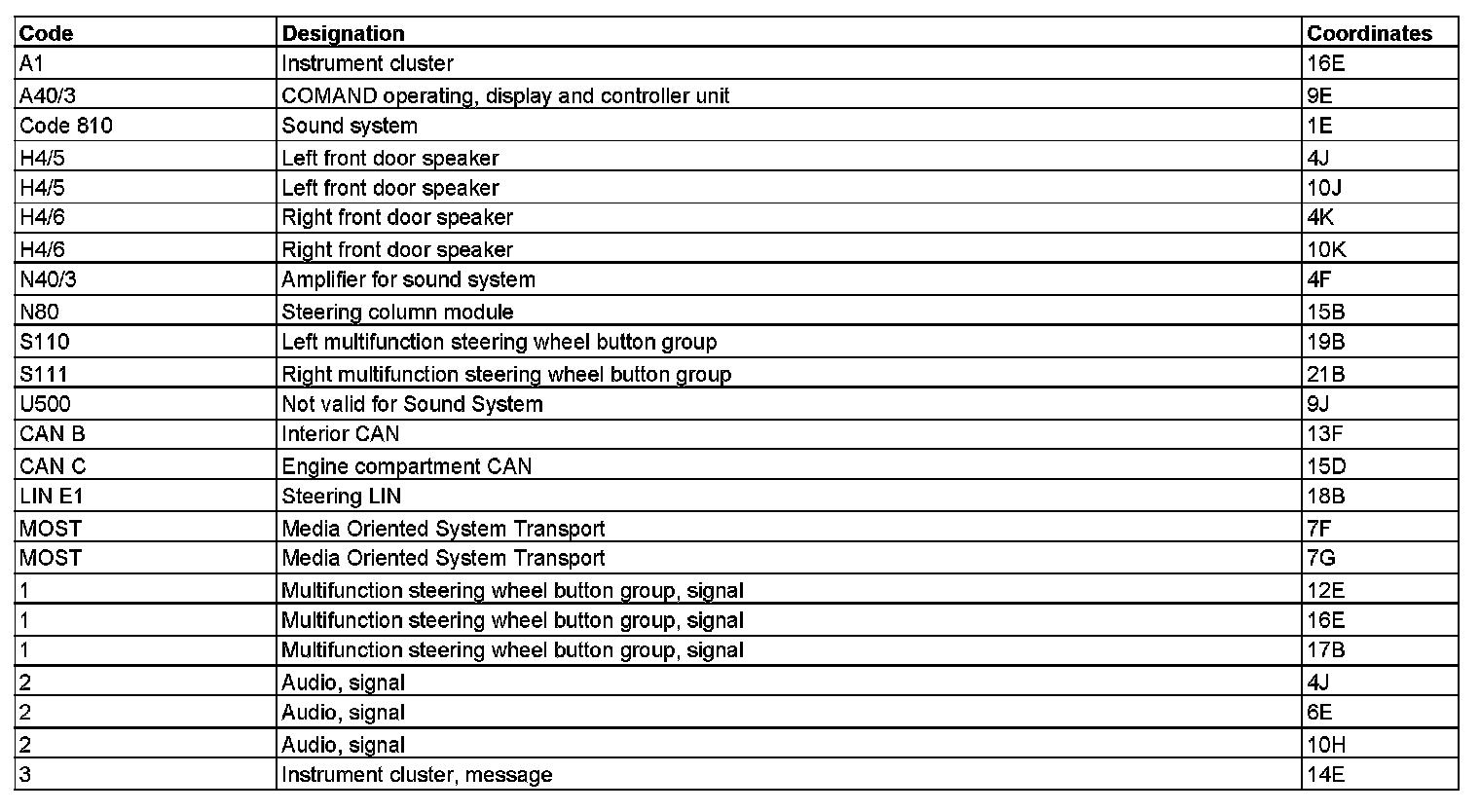

Component Description/Coordinates, A1 To 3:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
