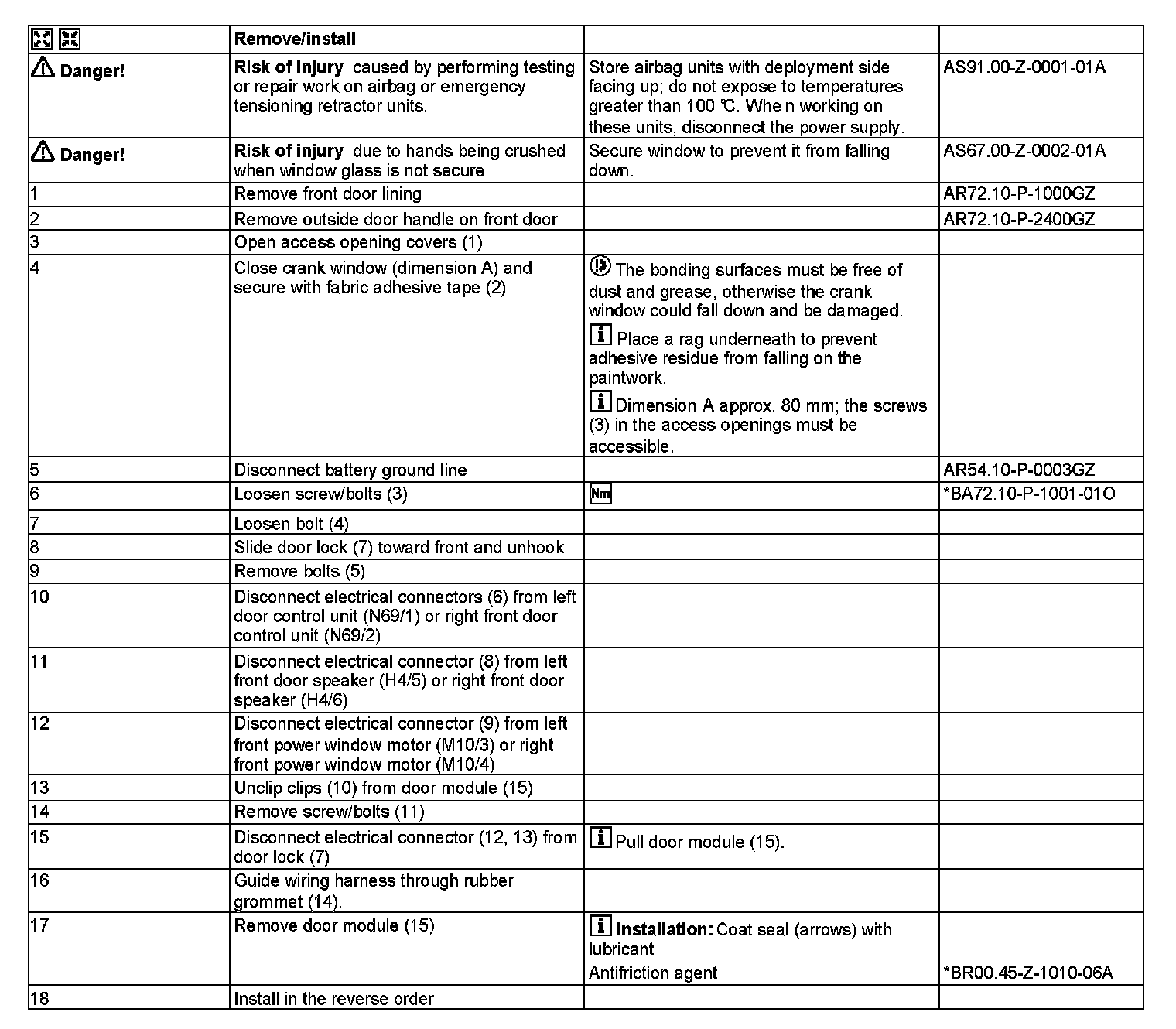

AR72.10-P-0900GZ Remove/Install Door Module

AR72.10-P-0900GZ Remove/Install Door Module
MODEL 164

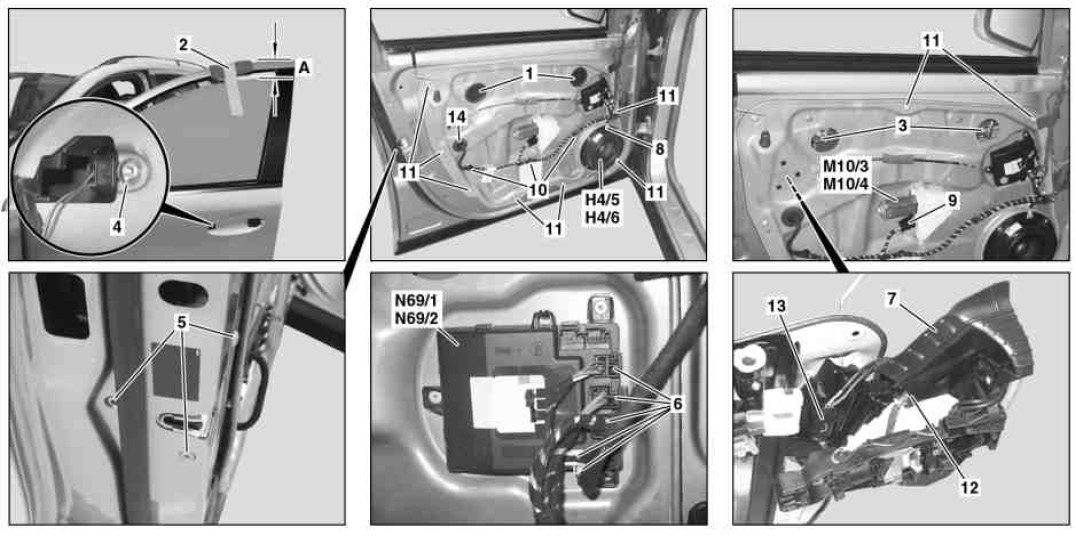

Shown on model 164.1

1 Access opening covers
2 Adhesive fabric tape
3 Bolts
4 Screw
5 Bolts
6 Electrical connectors
7 Door lock
8 Electrical connector
9 Electrical connector
10 Clips
11 Bolts
12 Electrical connector
13 Electrical connector
14 Rubber grommet

H4/5 Left front door speaker
H4/6 Right front door speaker
M10/3 Left front power window motor
M10/4 Right front power window motor
N69/1 Door control module front left
N69/2 Door control module front right

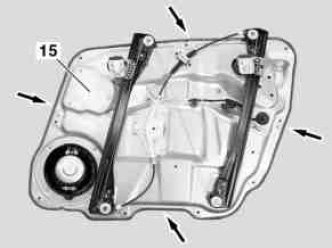

15 Door module
