AZ82.85-P-0006-05GZB Retrofit Medianavigation Center Connecting Cable

AZ82.85-P-0006-05GZB Retrofit MediaNavigation Center Connecting Cable
- MODEL 164.1 /8 with CODE (830) China version

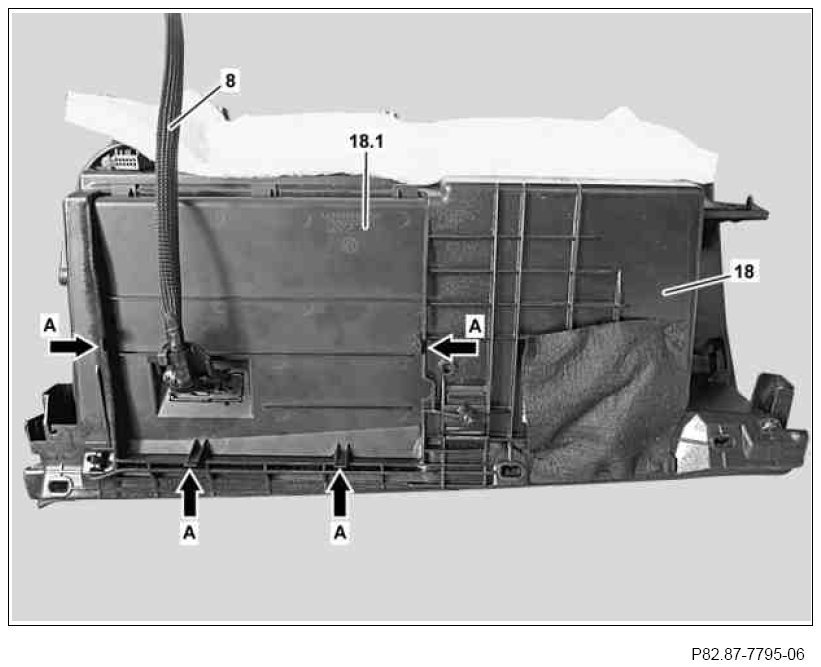

1 Insert cover (18.1) with MediaNavigation Center connecting cable (8) into glove box (18) and clip in catches (arrows A).
The glove box (18) is installed at a later stage.
