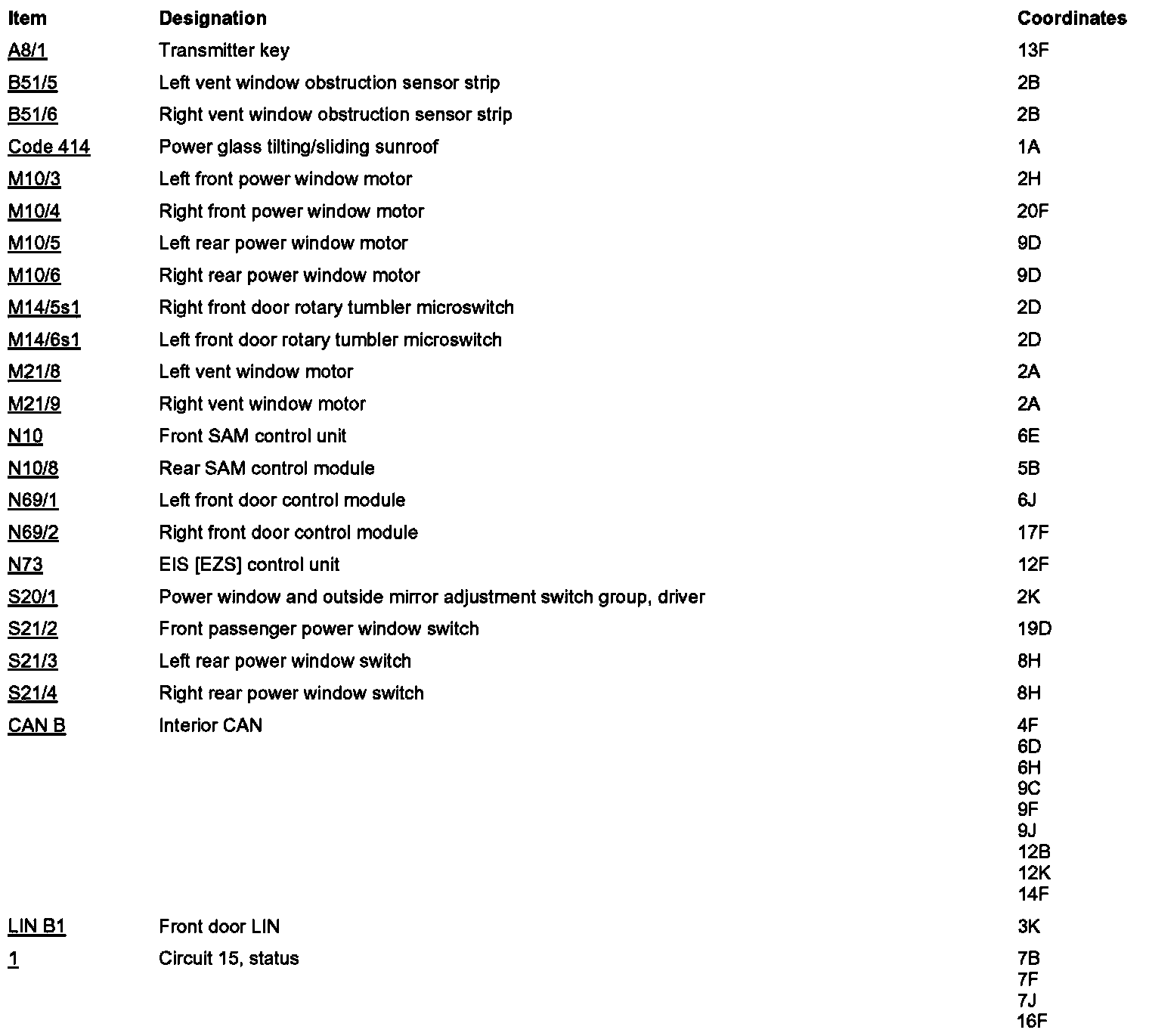

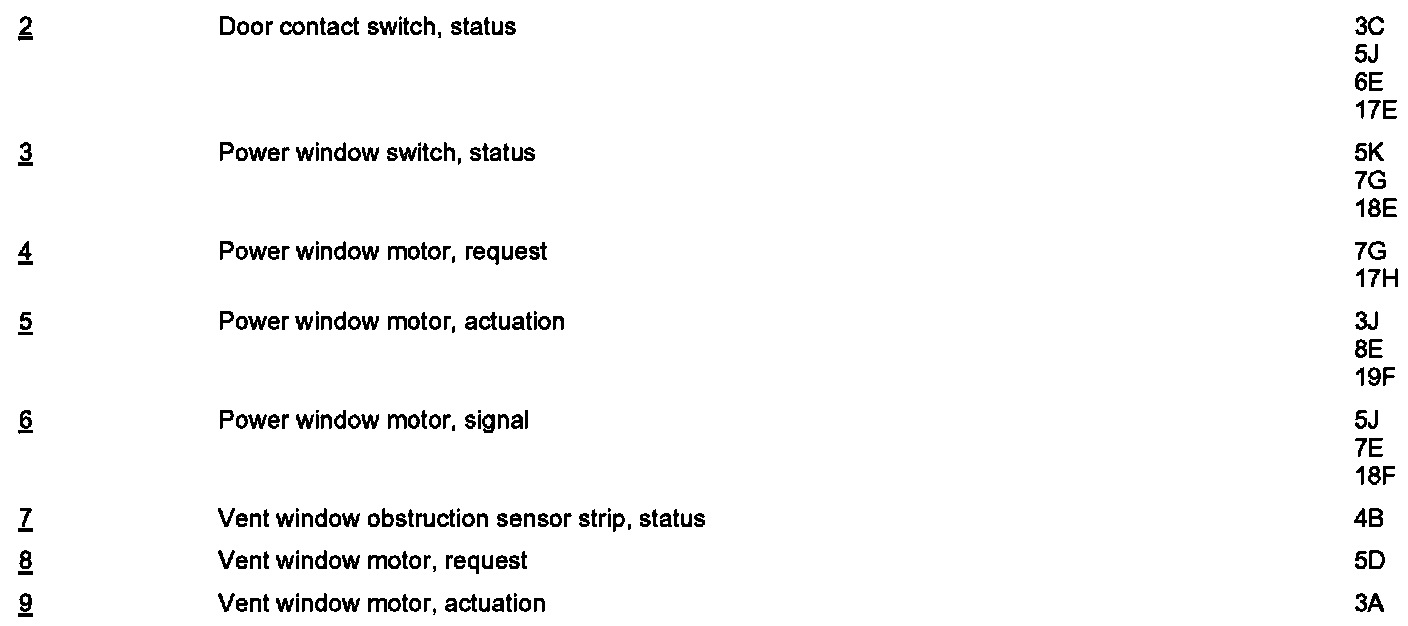

PE72.29-U-2050RAB Function Schematic For Power Window Electrical System

PE72.29-U-2050RAB Function Schematic For Power Window Electrical System
- as of model year 09


















Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
