Function Diagrams

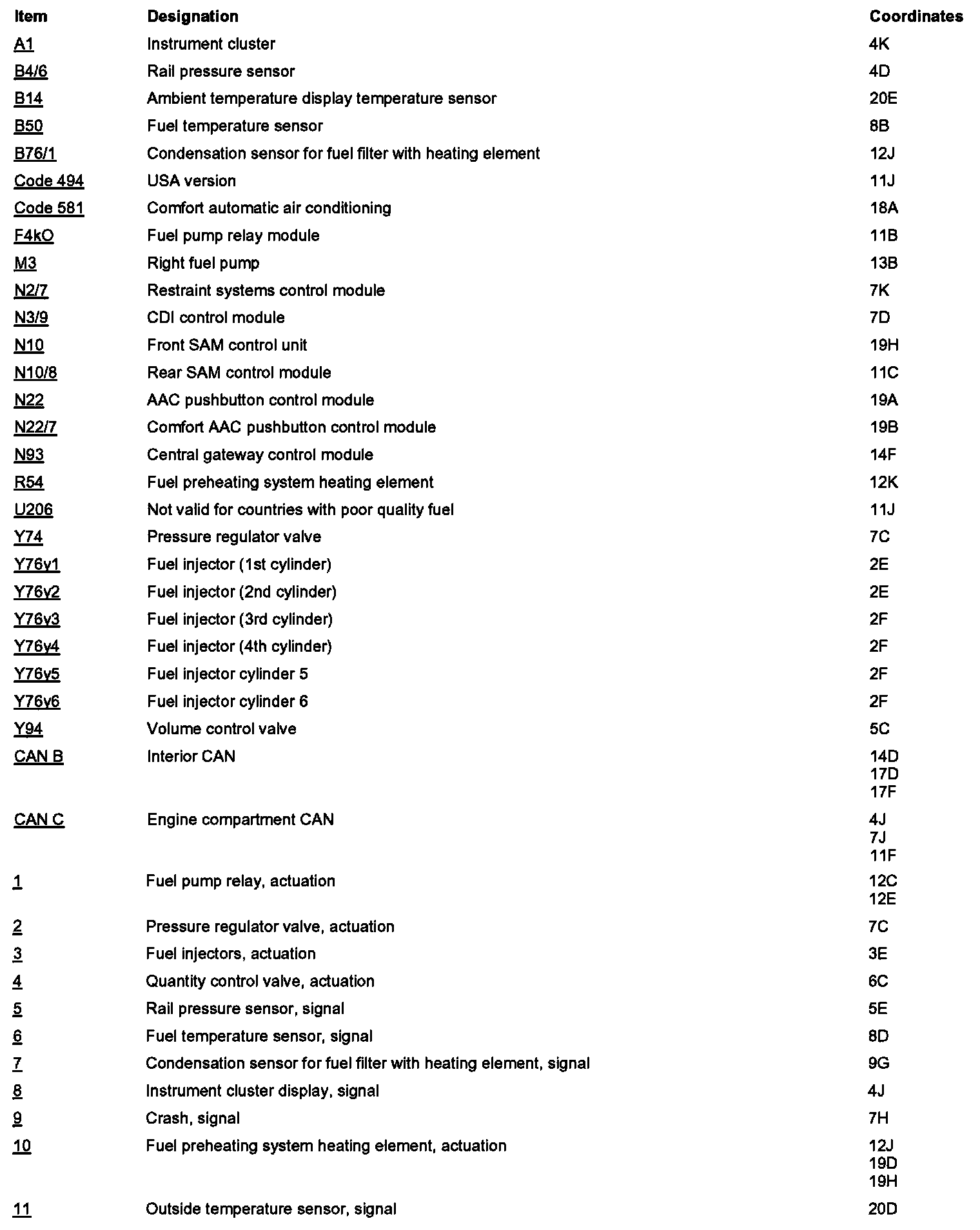

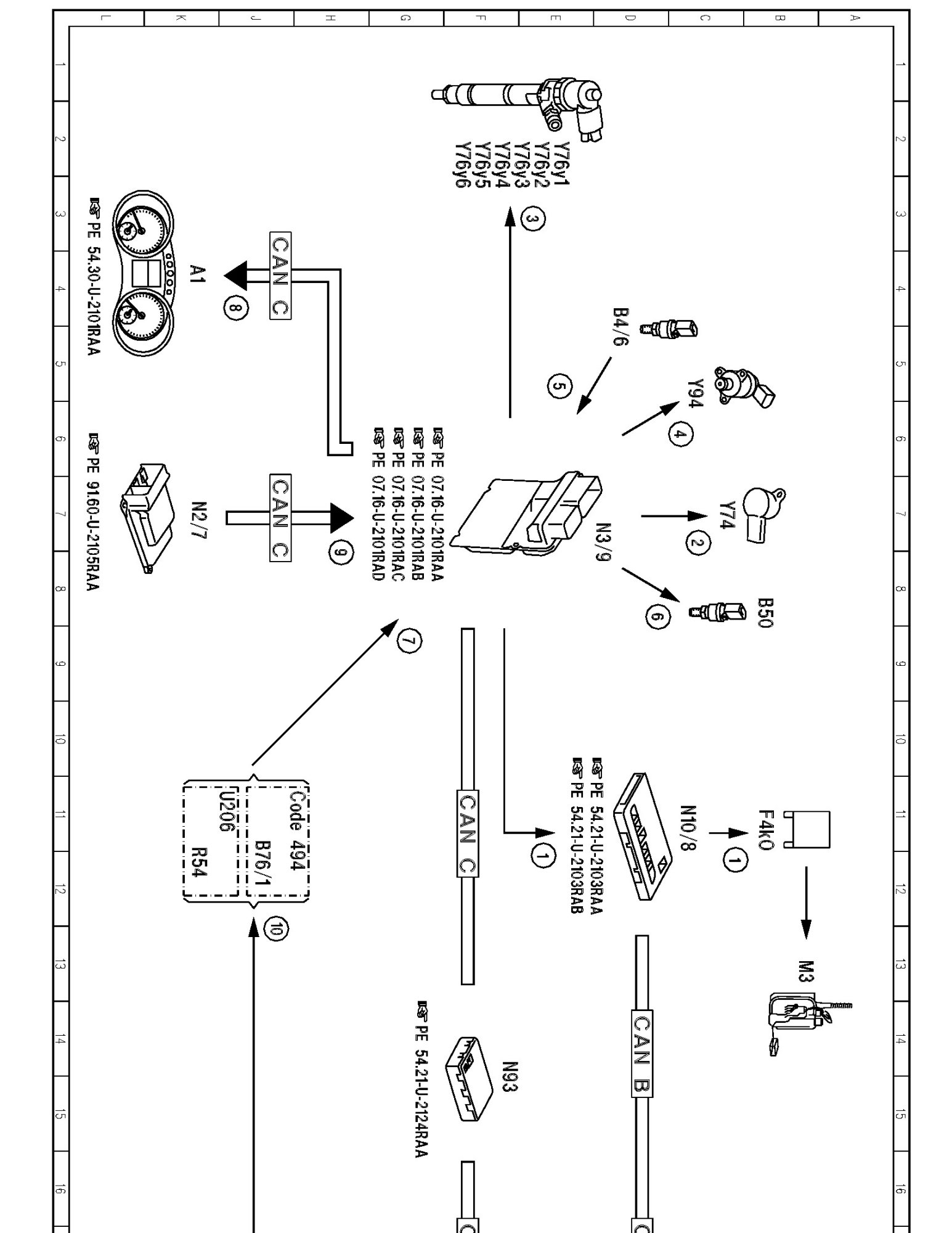

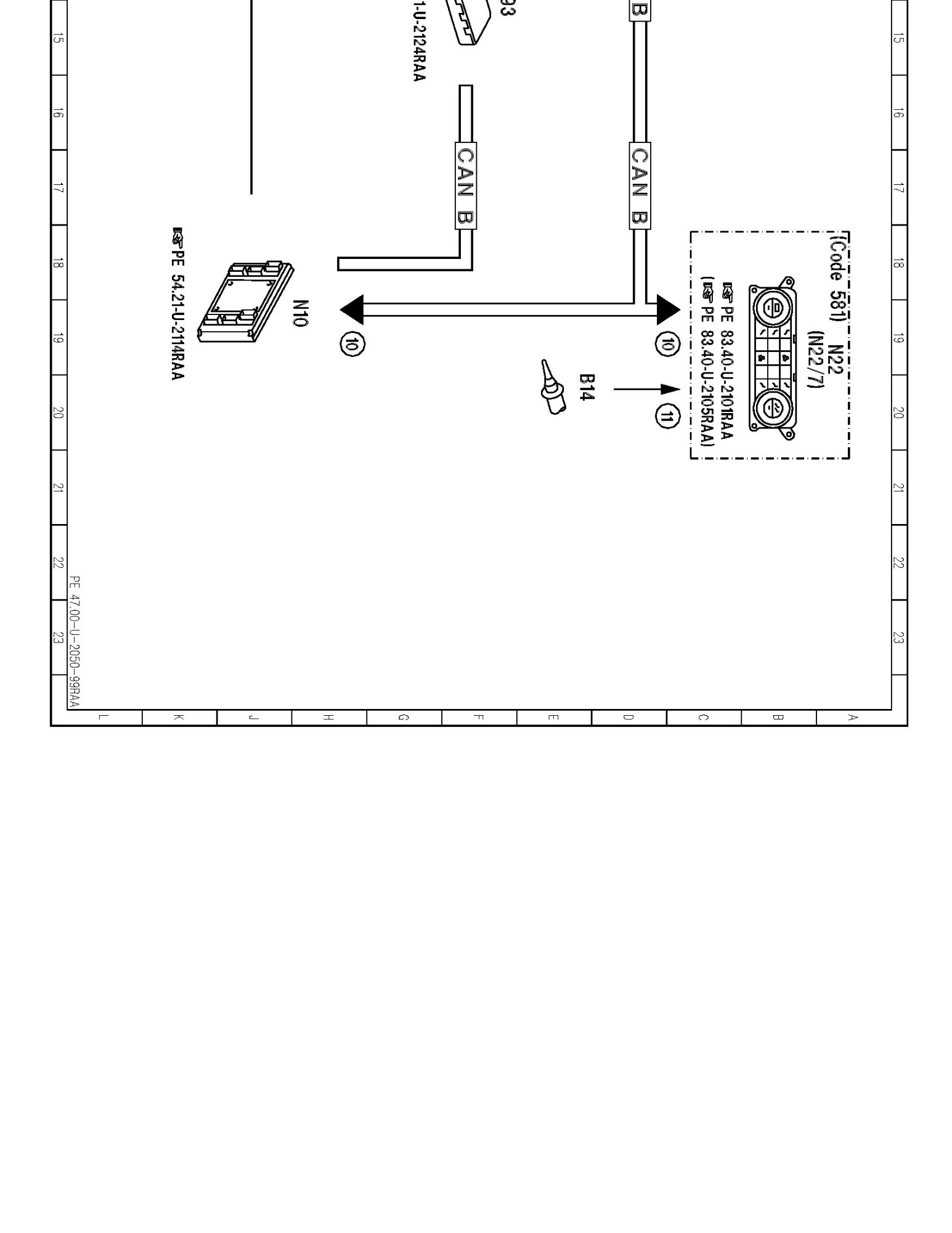

PE47.00-U-2050RAA Electrical Function Diagram For Fuel Supply
- with CODE (U42) BLUETEC diesel exhaust gas cleaning
- as of model year 09














Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
