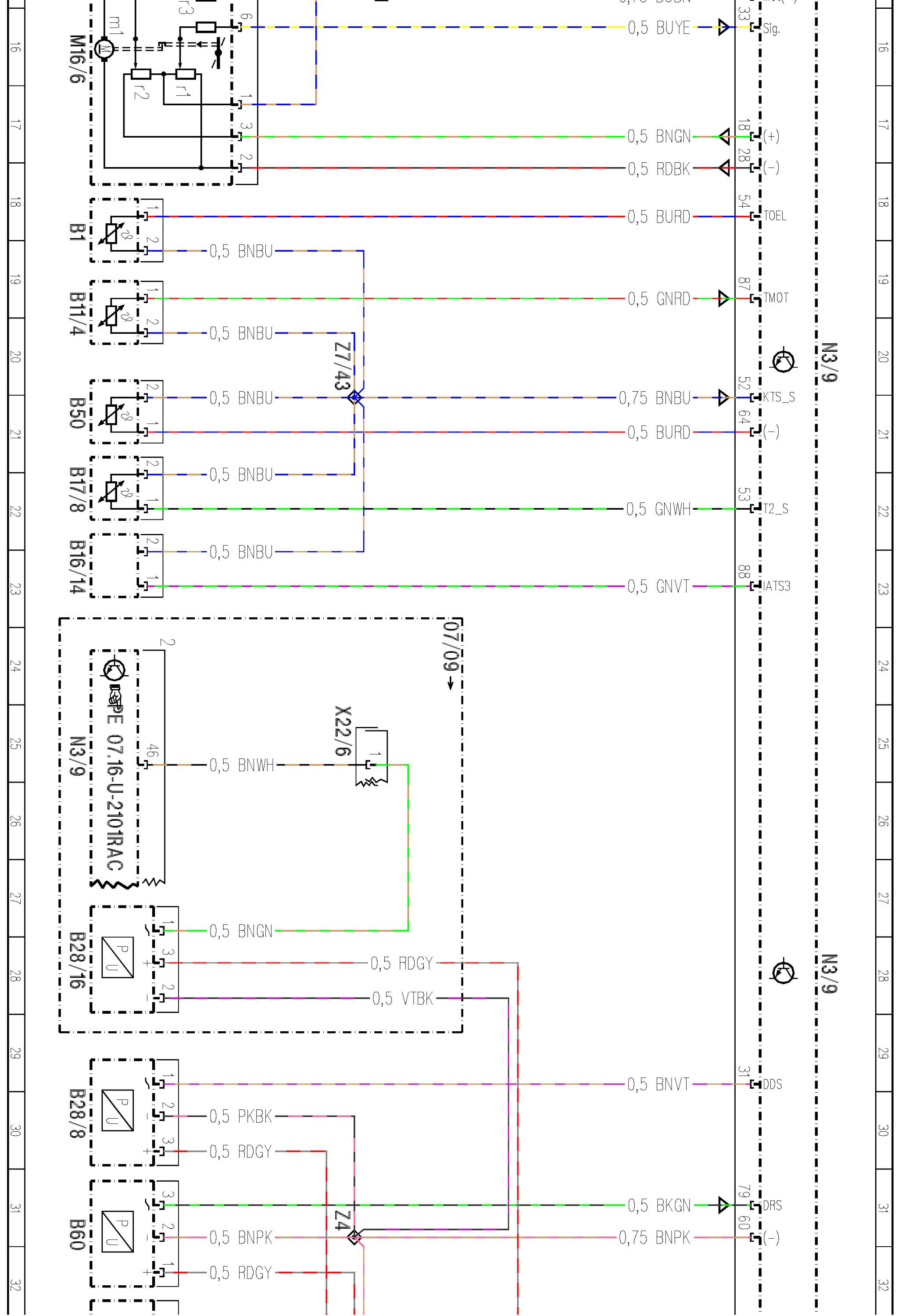

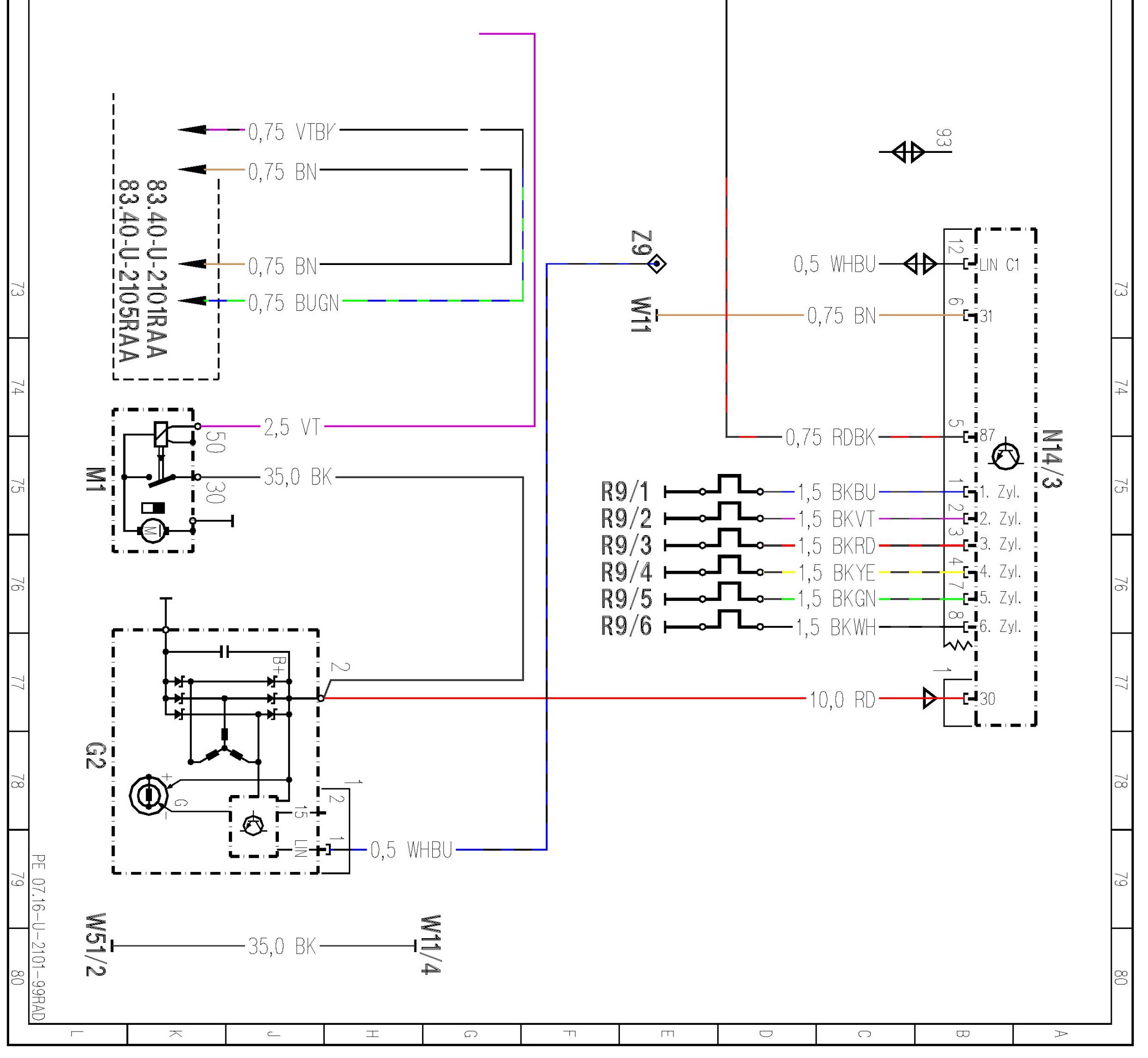

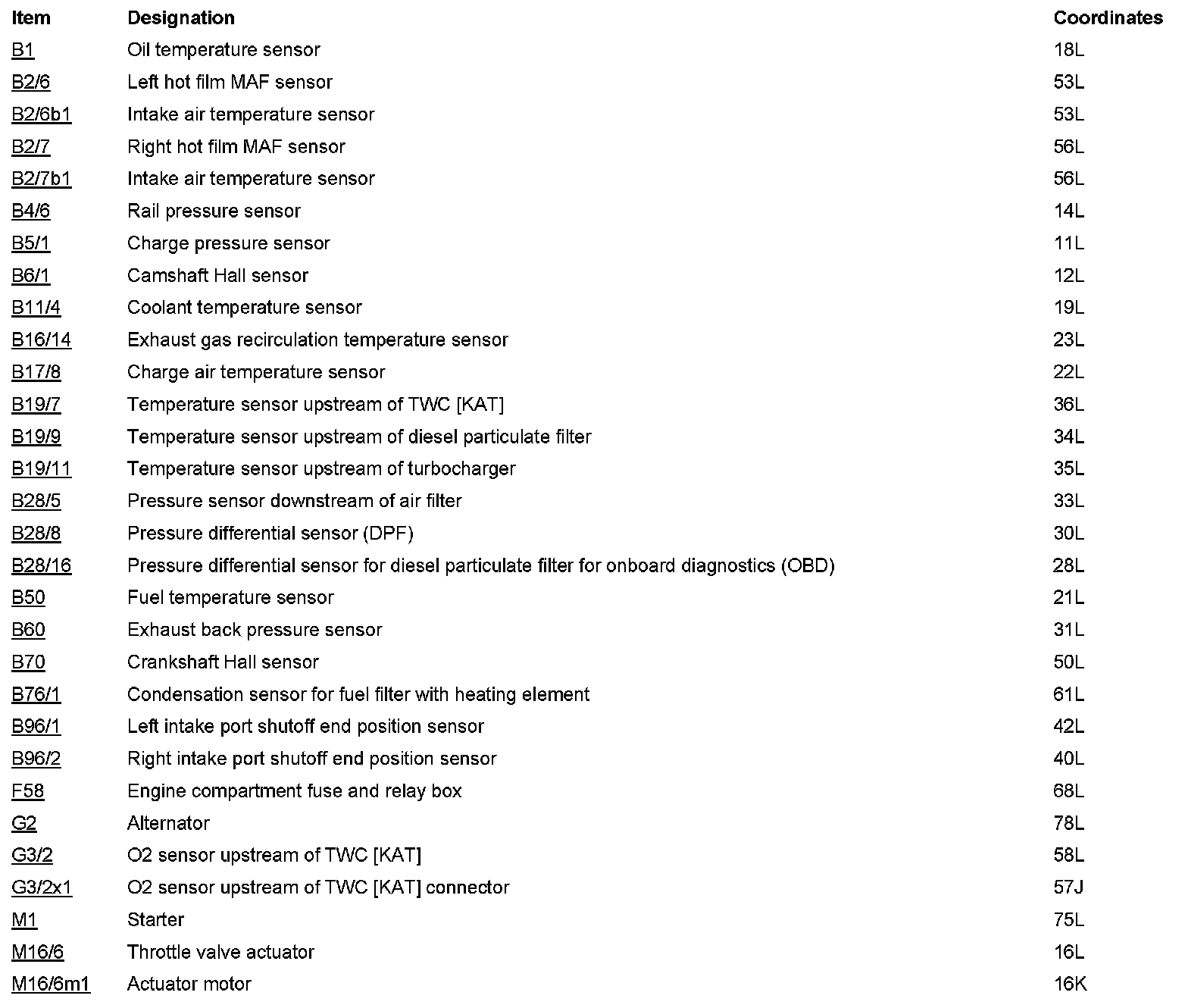

PE07.16-U-2101RAD Common Rail Diesel Injection (CDI) Control Module

PE07.16-U-2101RAD Common Rail Diesel Injection (CDI) Control Module

ENGINE 642.8 in MODEL 251
- as of Model Year 2009
- with CODE (U42) BlueTEC diesel exhaust treatment (SCR)
- control unit N3/9, sheet 2














































Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Components
