AR07.52-P-1465GZB Remove/Install Intake Air Temperature Sensor
AR07.52-P-1465GZB Remove/Install Intake Air Temperature Sensor
AR07.52-P-1465GZB Remove/Install Intake Air Temperature Sensor

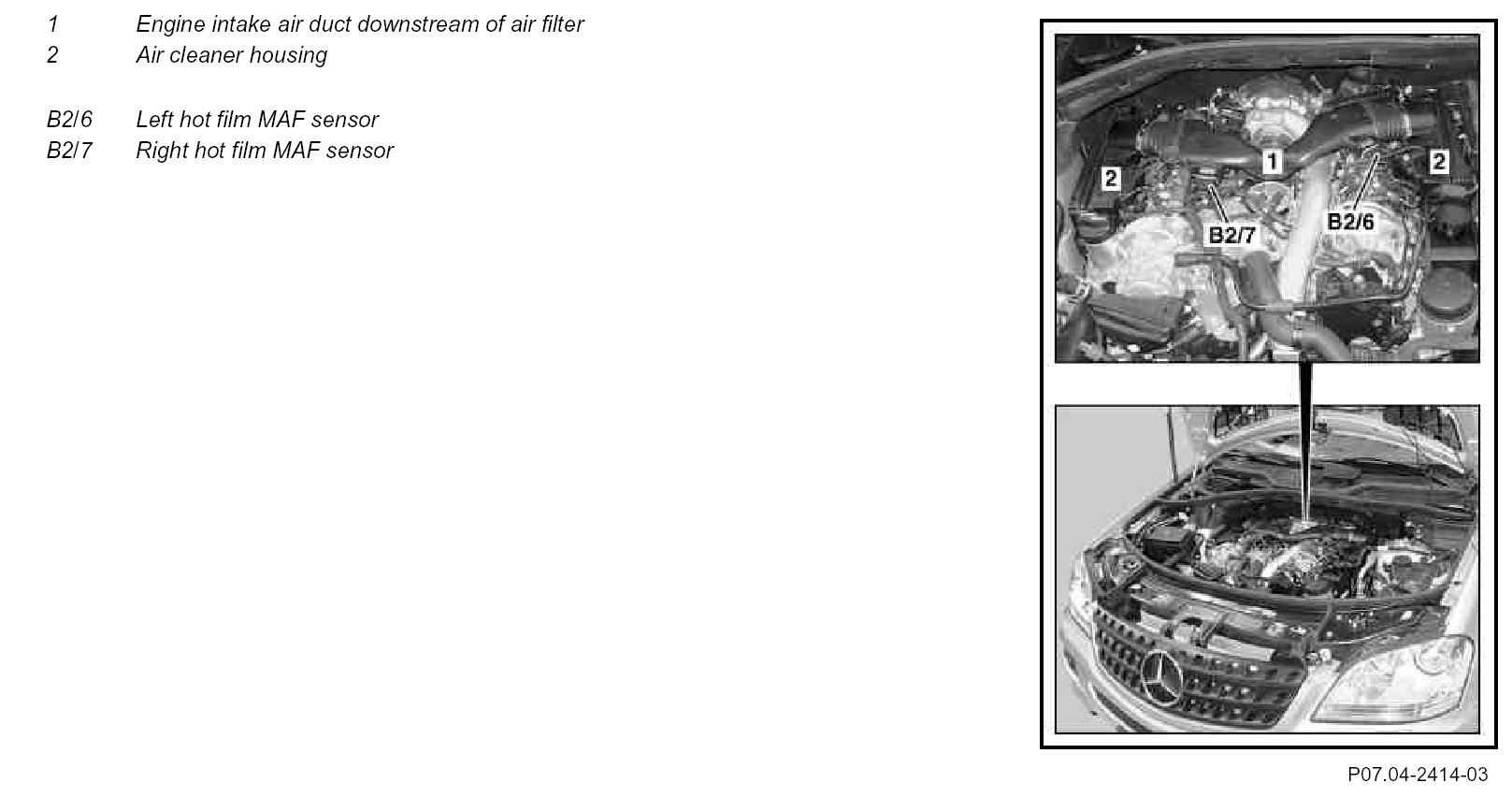

Component Identification:

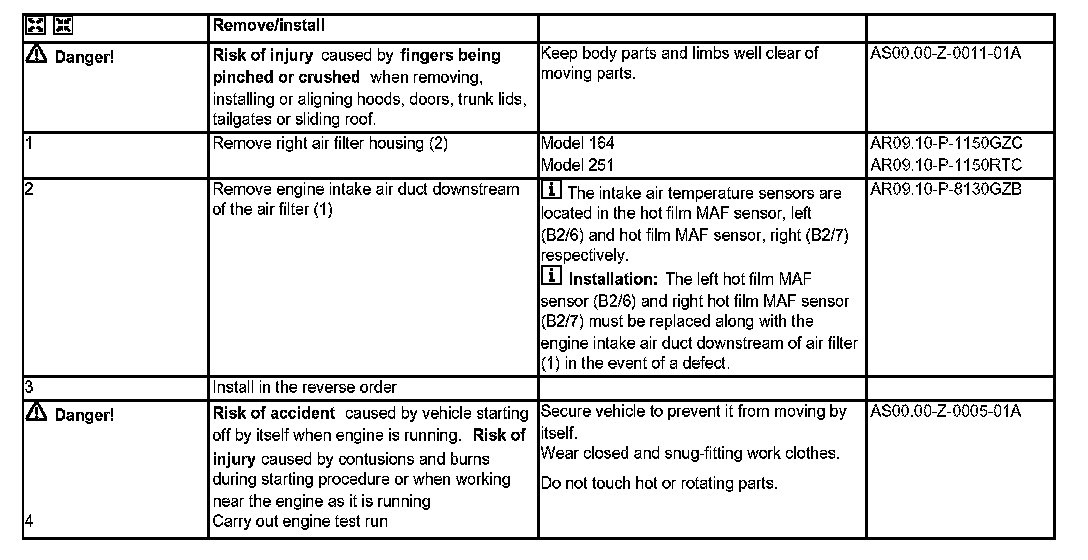

Steps 1 - 4:
