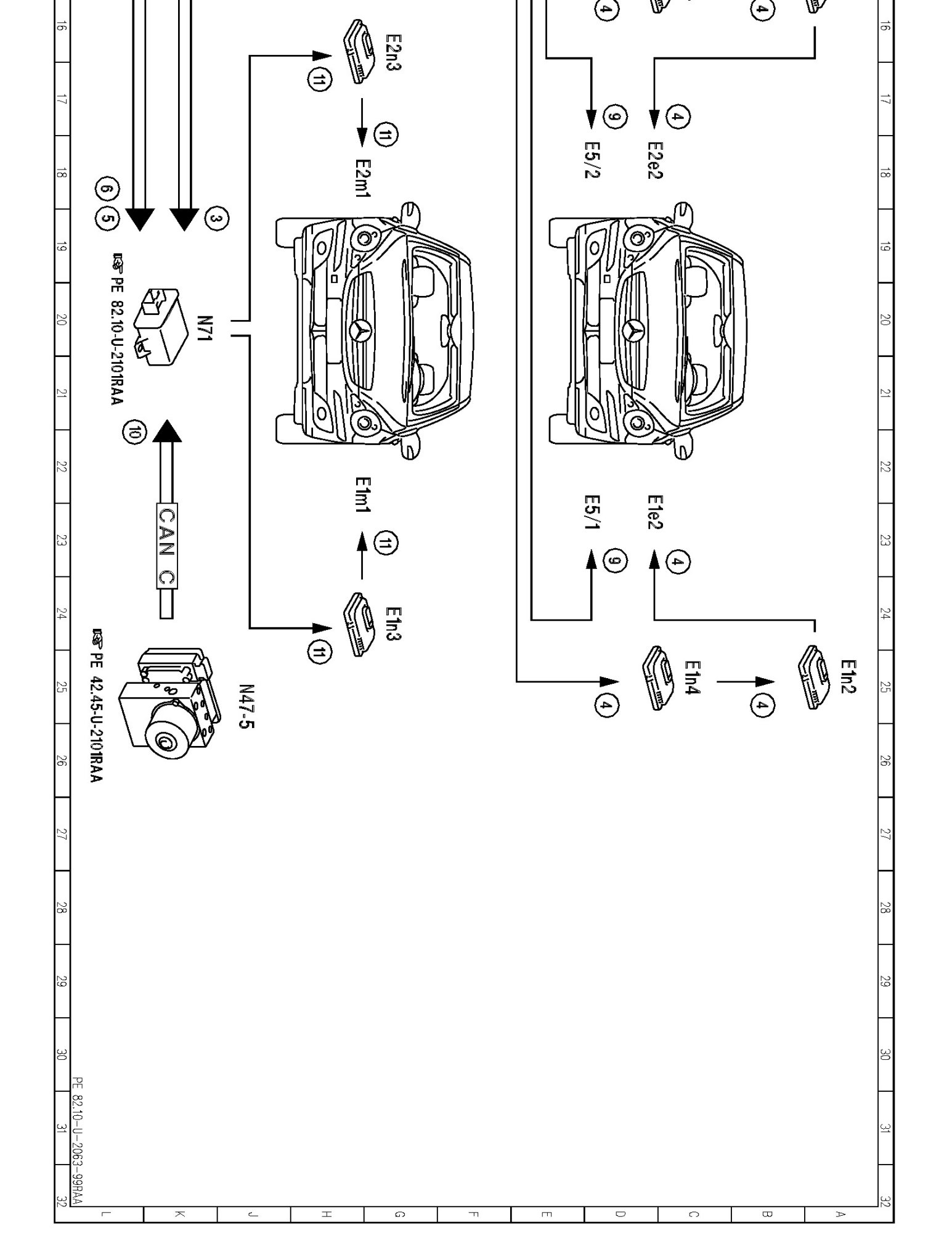

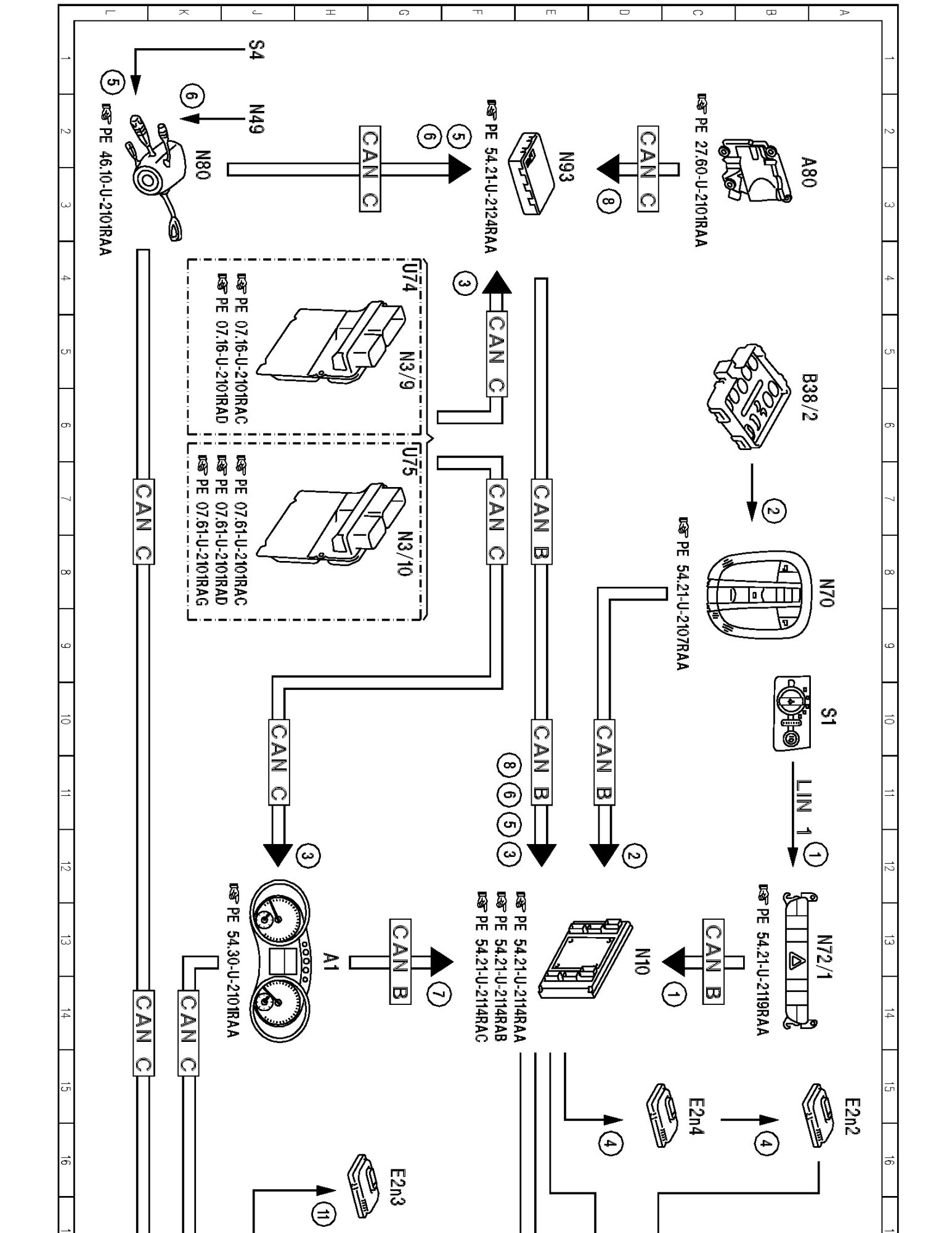

PE82.10-U-2063RAA Electrical Function Schematic For Additional Functions, Driving Lights Actuation

PE82.10-U-2063RAA Electrical Function Schematic For Additional Functions, Driving Lights Actuation
- with CODE (615) Bi-xenon headlamp unit with integrated curve illumination
- with CODE (616) Bi-xenon headlamp unit with asymmetric curve illumination
- as of model year 09

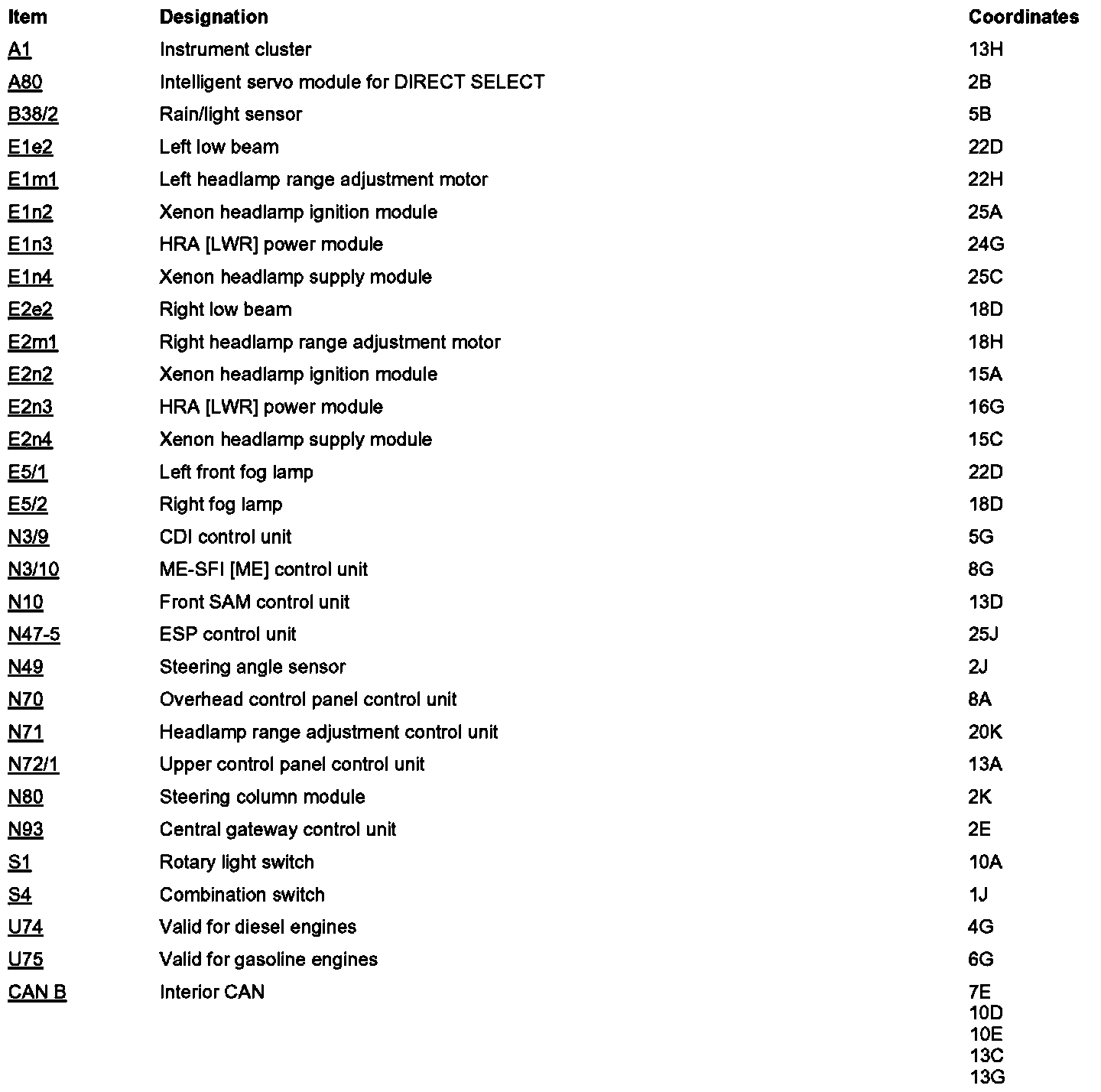

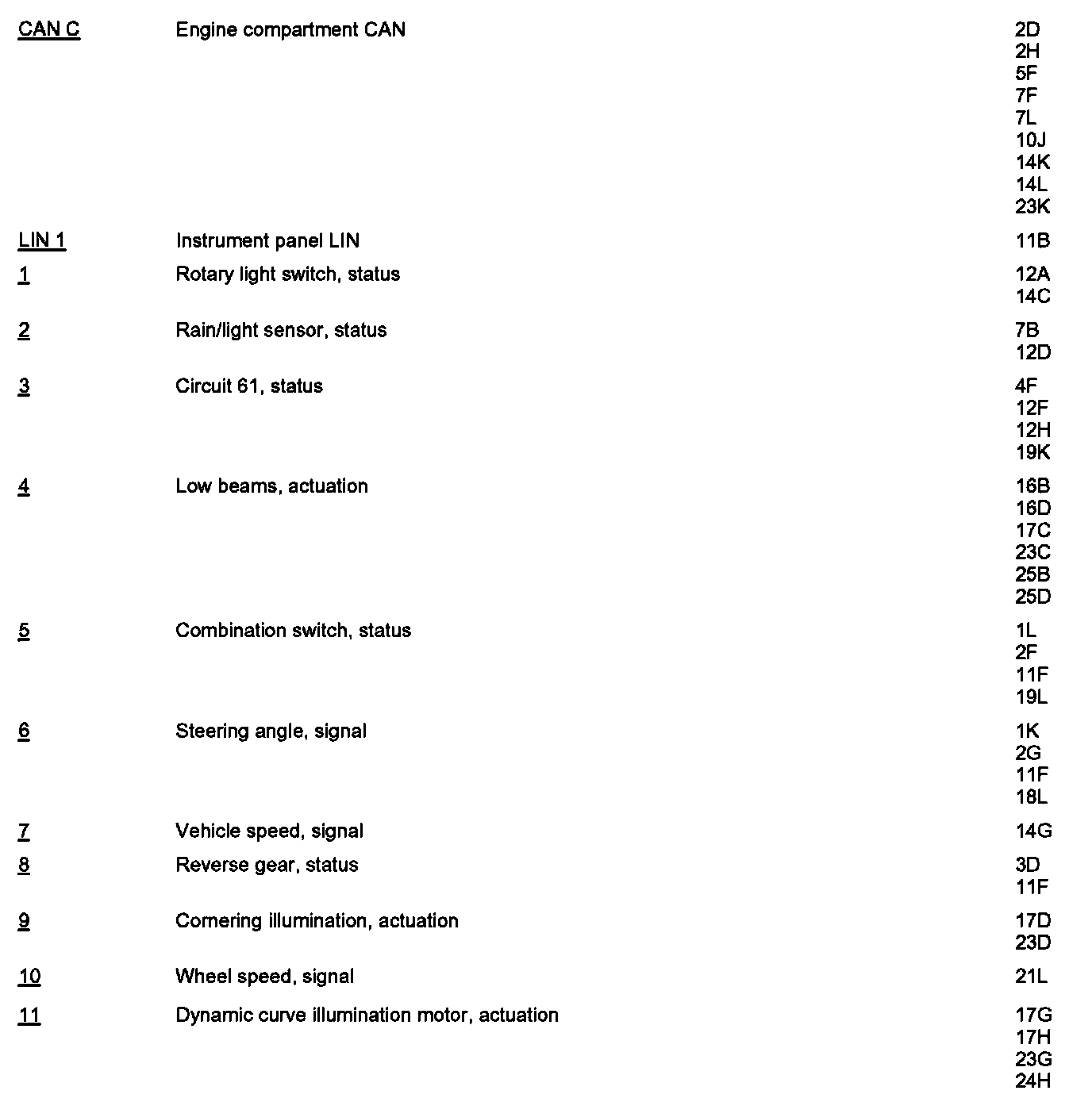

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
