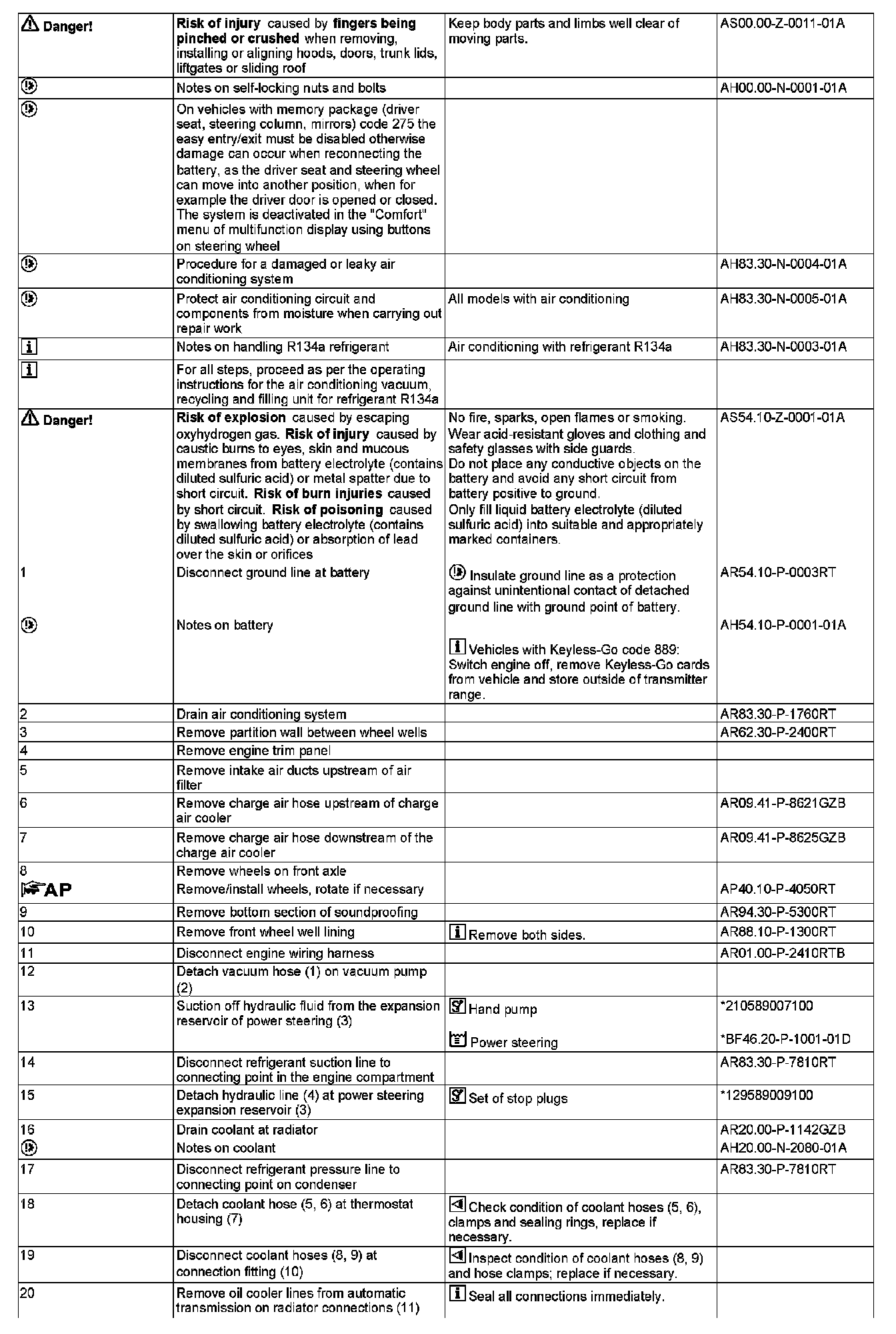

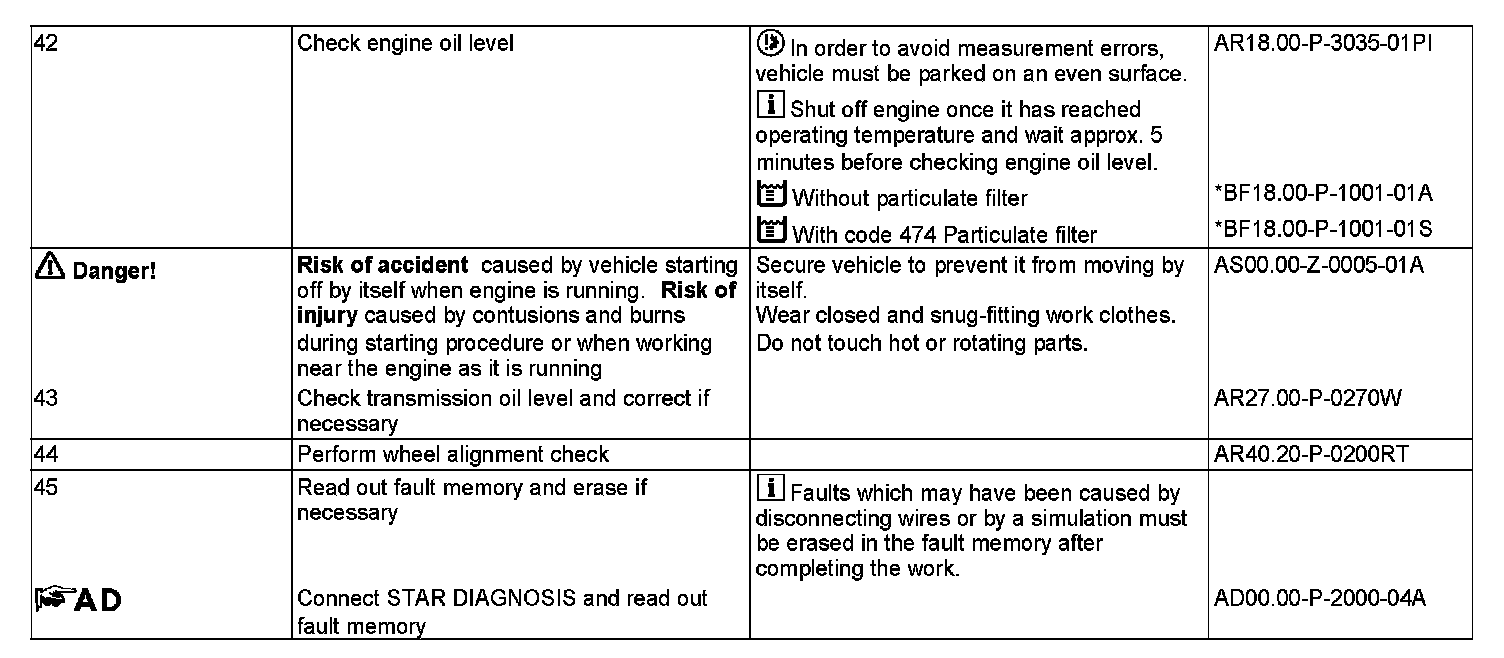

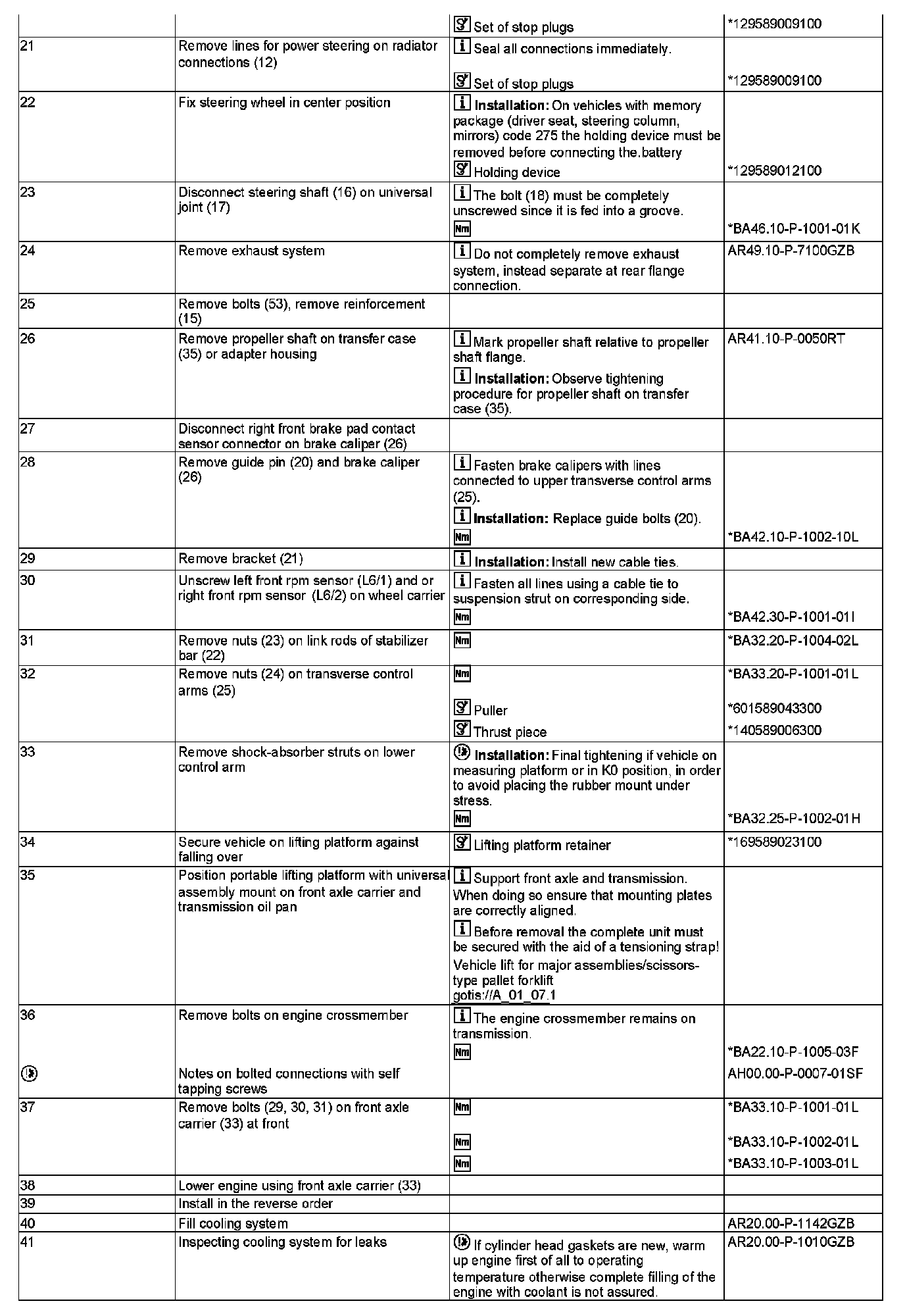

AR01.10-P-2500RTB Remove/Install Engine With Front Axle Carrier

AR01.10-P-2500RTB Remove/Install Engine With Front Axle Carrier
ENGINES 642 in MODEL 251

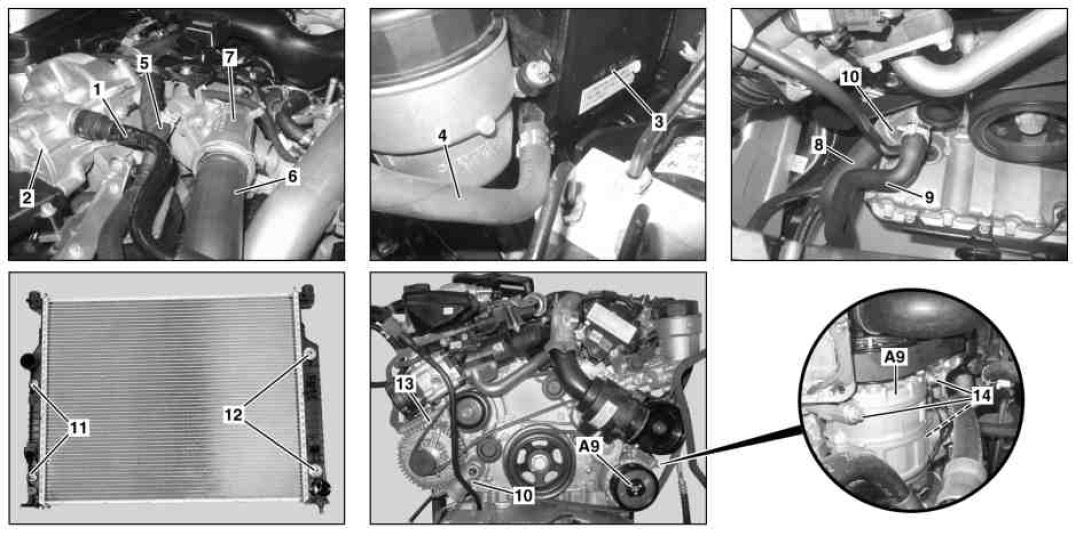

1 Vacuum hose
2 Vacuum pump
3 Power steering expansion reservoir
4 Hydraulic line
5 Coolant hose
6 Coolant hose
7 Thermostat housing
8 Coolant hose
9 Coolant hose
10 Connection fitting
11 Radiator connection
12 Radiator connection
13 Poly-V-belt
14 Bolts

A9 Refrigerant compressor

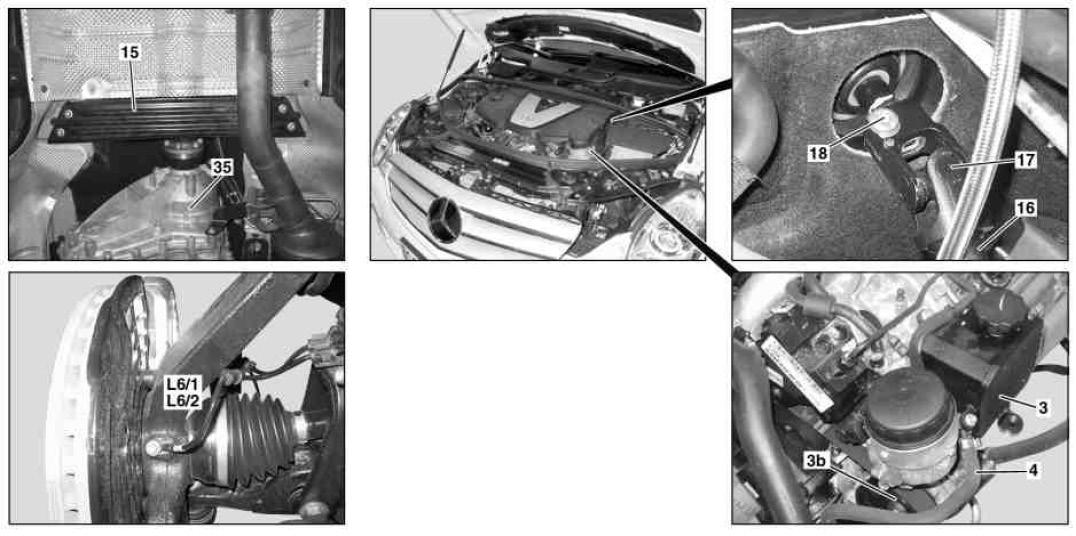

3 Power steering expansion reservoir
3b Power steering pump
4 Hydraulic line
15 Reinforcement
16 Steering shaft
17 Universal joint
18 Screw
35 Transfer case

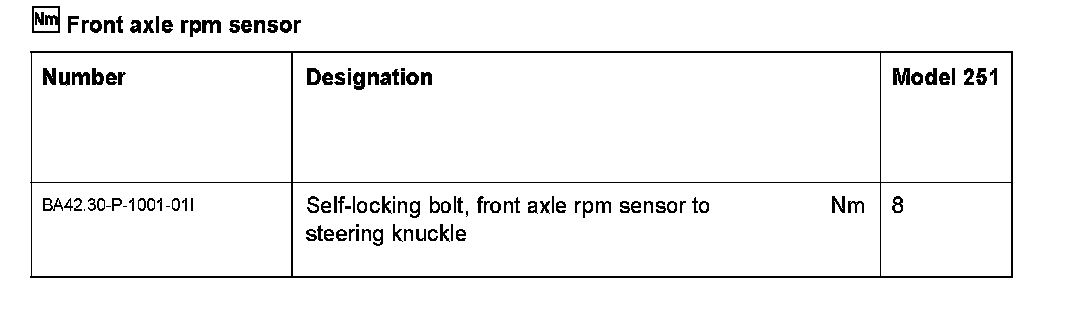

L6/1 Left front rpm sensor
L6/2 Right front rpm sensor

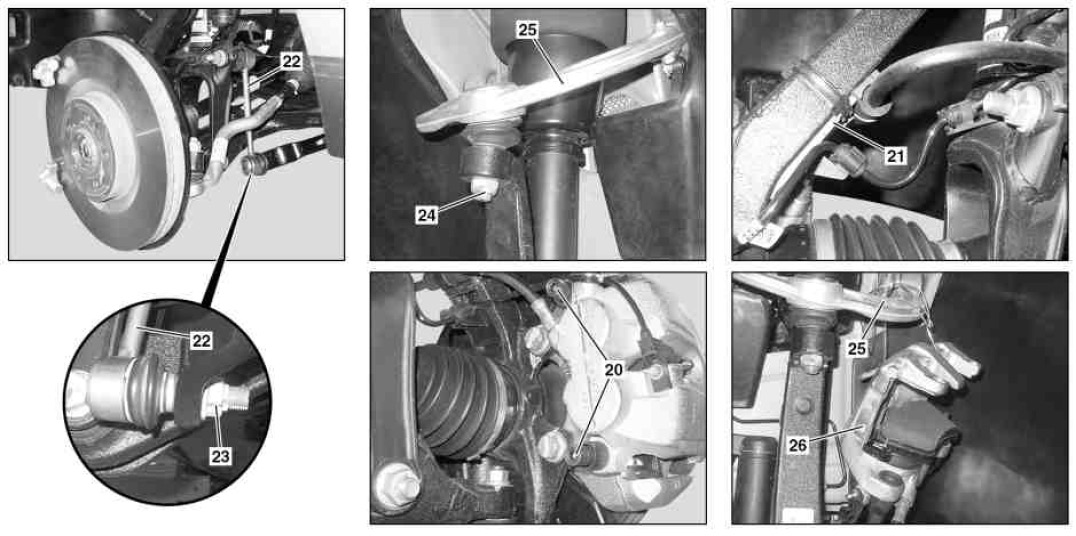

20 Guide bolts
21 Bracket

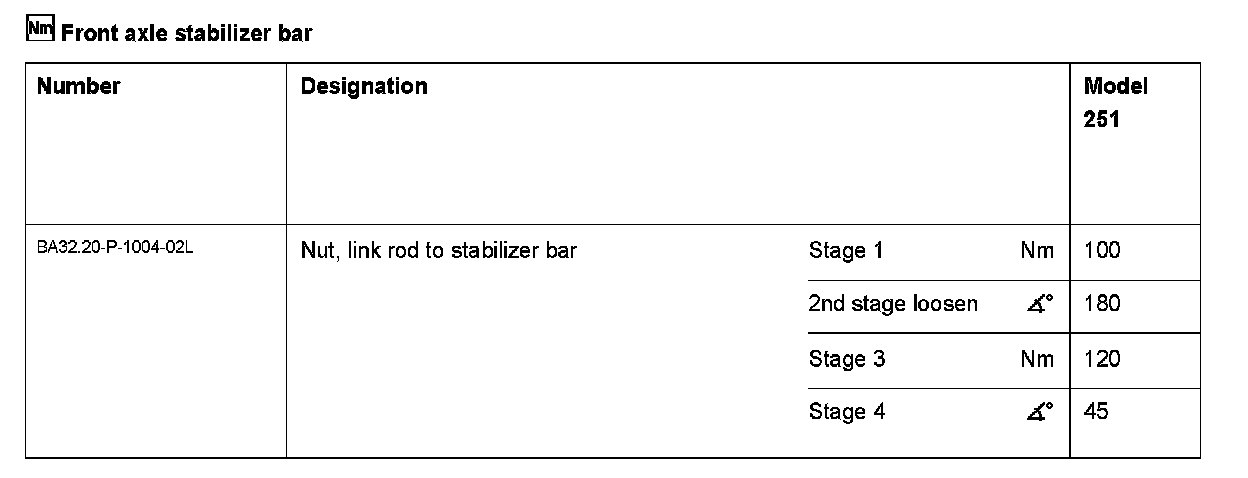

22 Stabilizer link rod
23 Nut
24 Nut
25 Transverse control arm

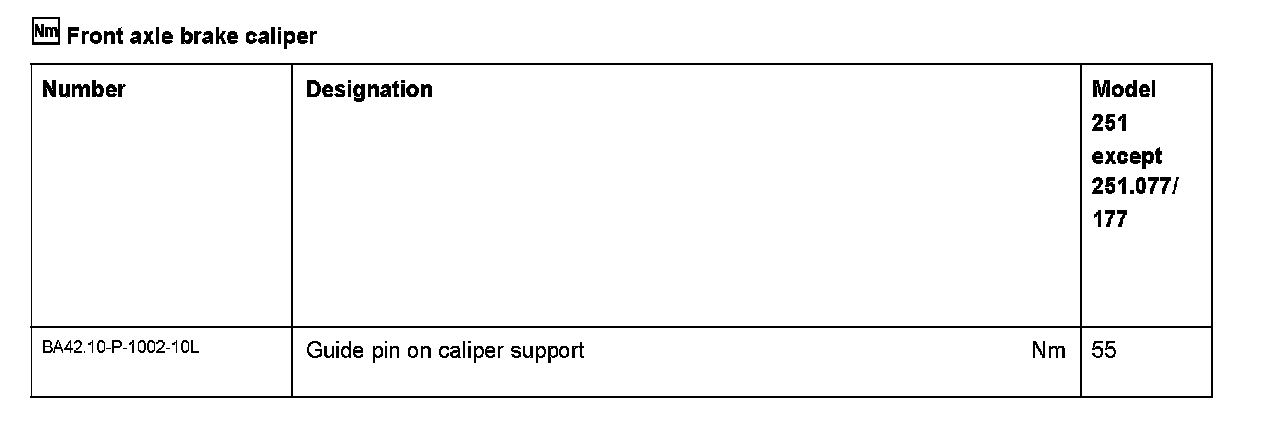

26 Brake caliper

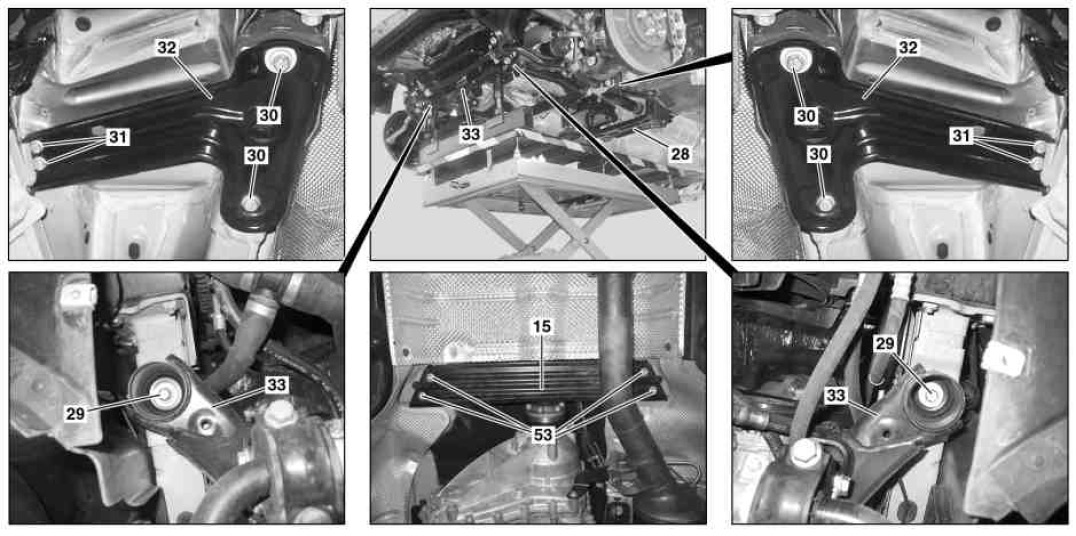

15 Reinforcement
29 Bolts
30 Bolts
31 Bolts
32 Stiffening plate

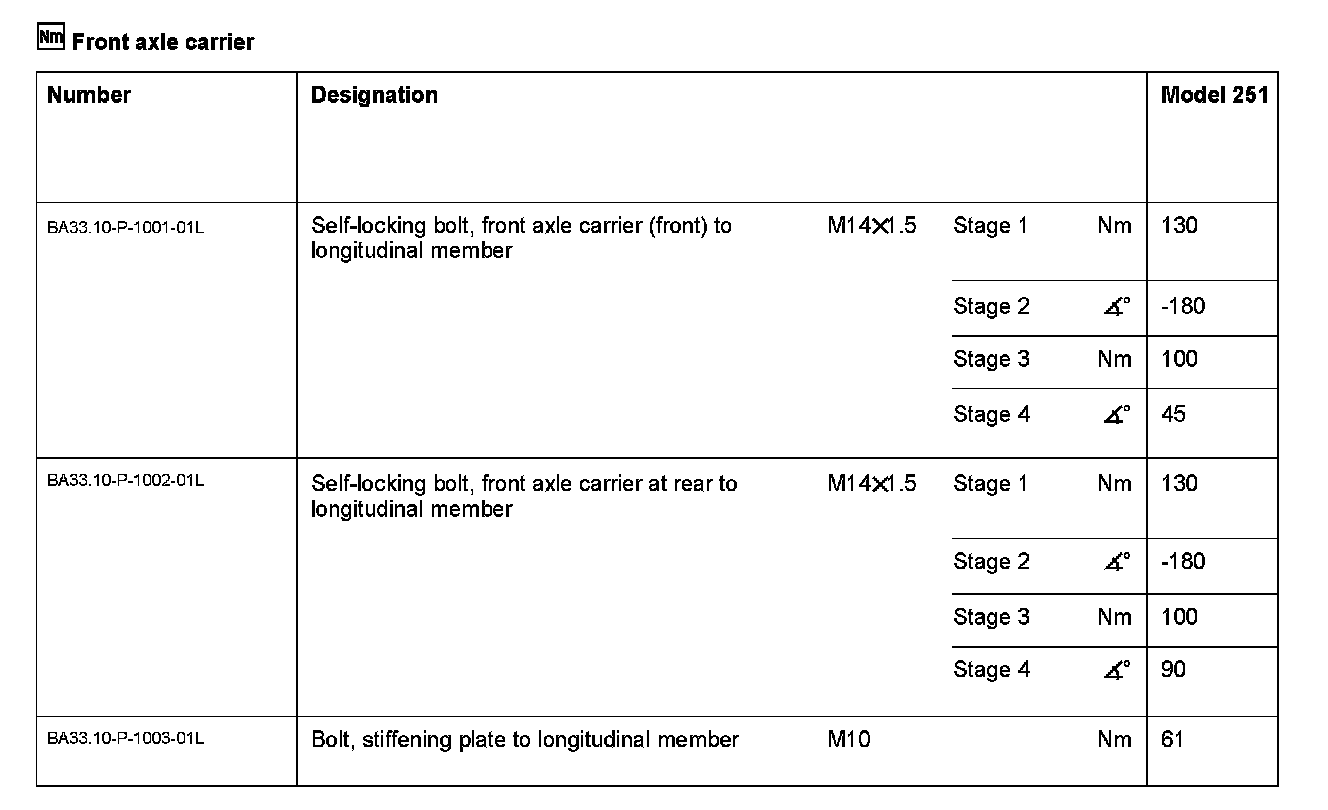

33 Front axle carrier
53 Bolts


















































129 589 00 91 00
Set of stop plugs





210 589 00 71 00
Hand pump





129 589 01 21 00
Holding device





601 589 04 33 00
Puller





140 589 00 63 00
Thrust piece





169 589 02 31 00

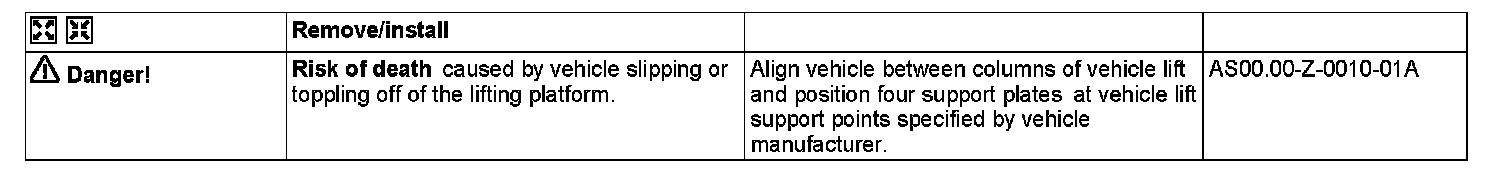

Vehicle lift safety device
