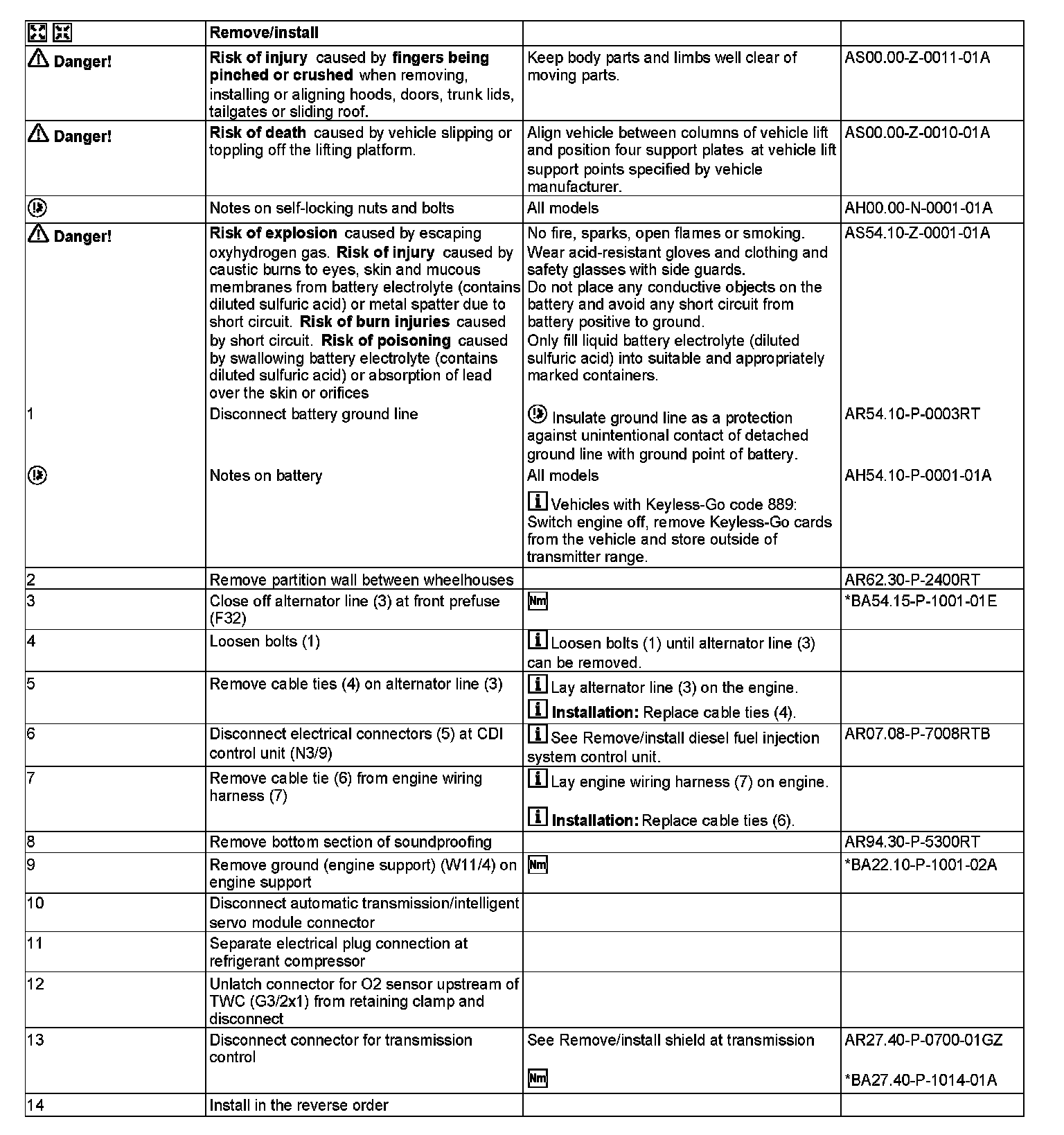

AR01.00-P-2410RTB Disconnect, Connect Engine Wiring Harness

AR01.00-P-2410RTB Disconnect, Connect Engine Wiring Harness
ENGINE 642 in MODEL 251

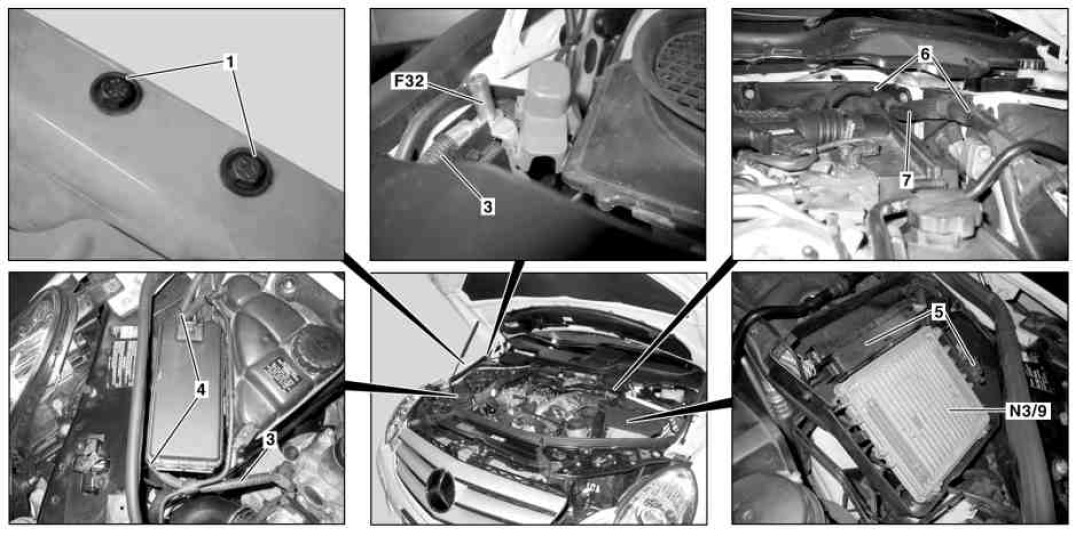

1 Bolts
3 Alternator line
4 Cable tie
5 Electrical connectors
6 Cable tie
7 Engine wiring harness

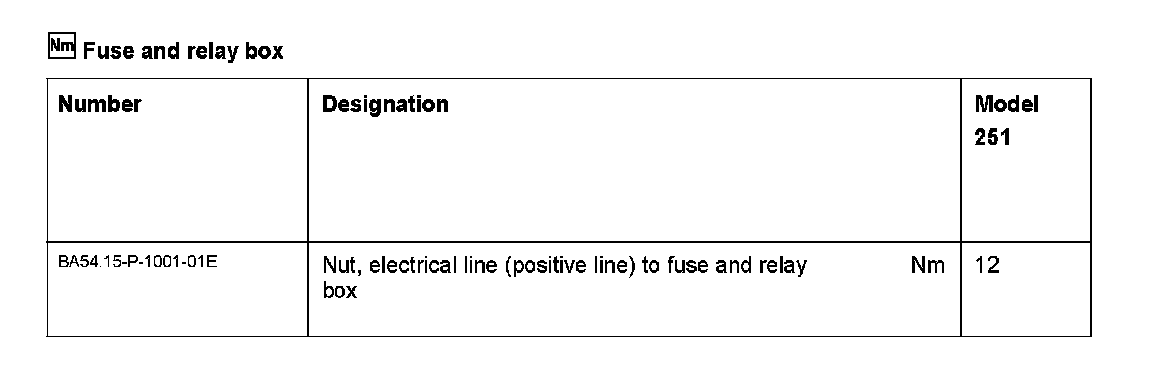

F32 Front prefuse
N3/9 CDI control unit

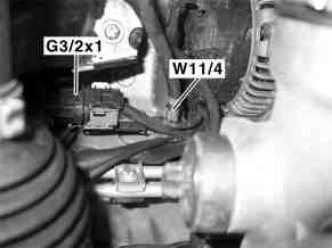

G3/2x1 Connector for O2 sensor upstream of TWC

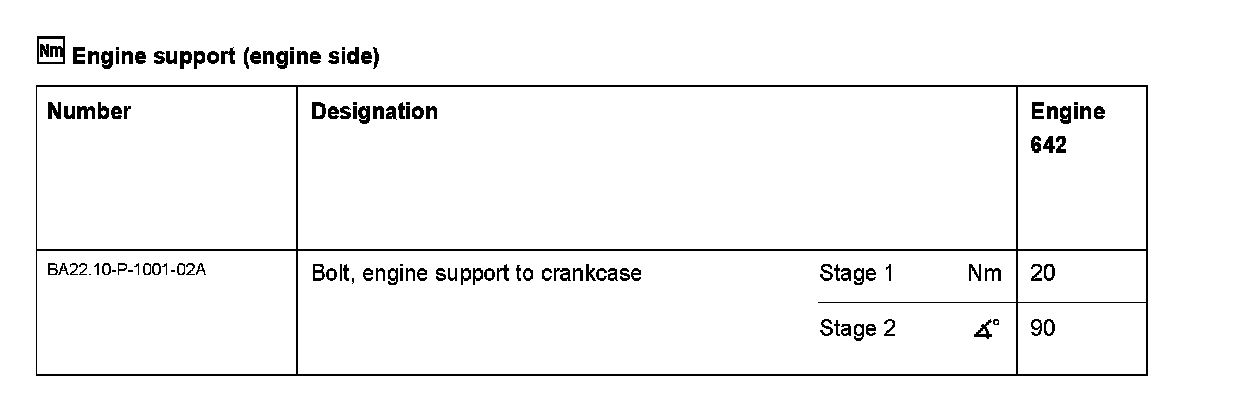

W11/4 Ground (engine support)
