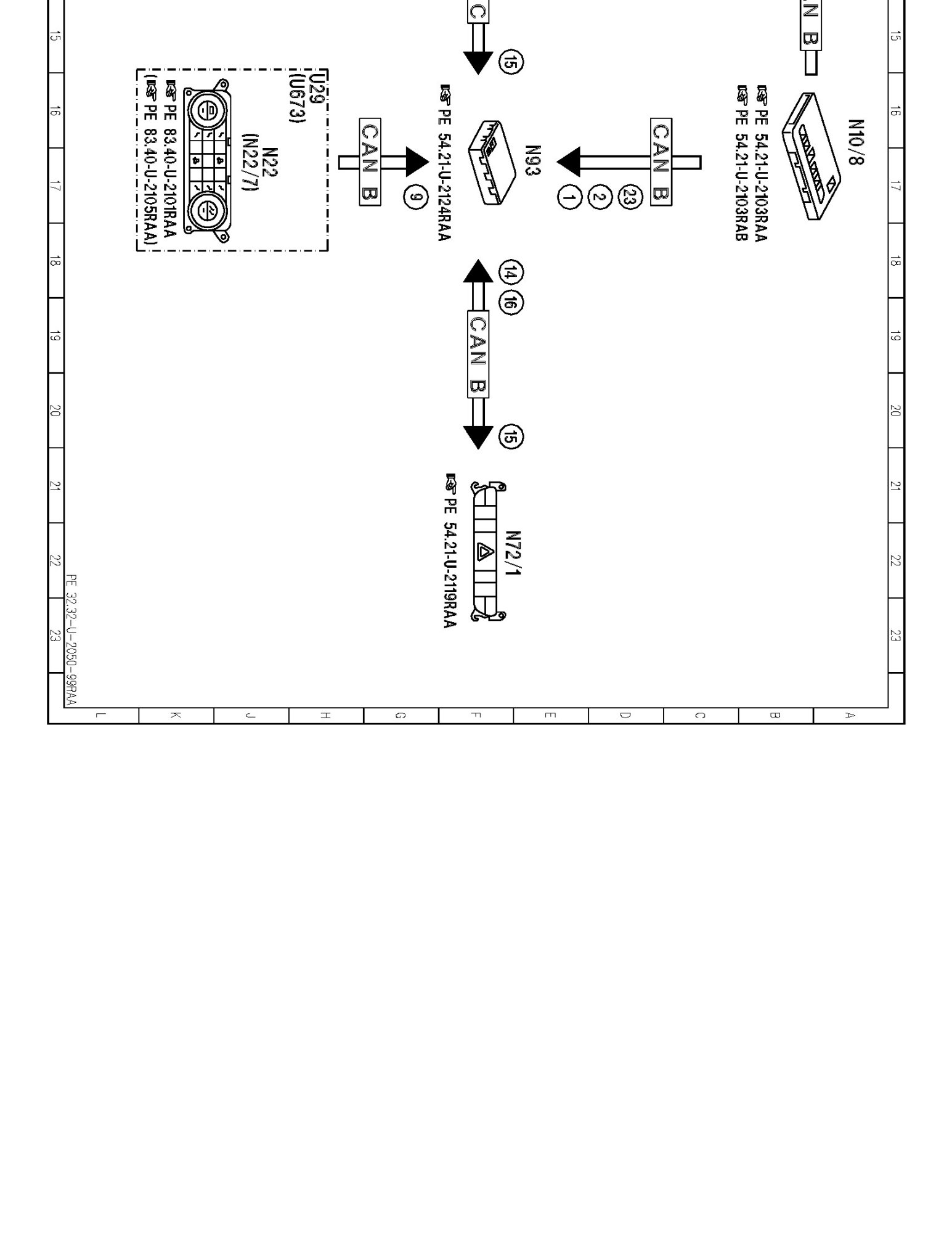

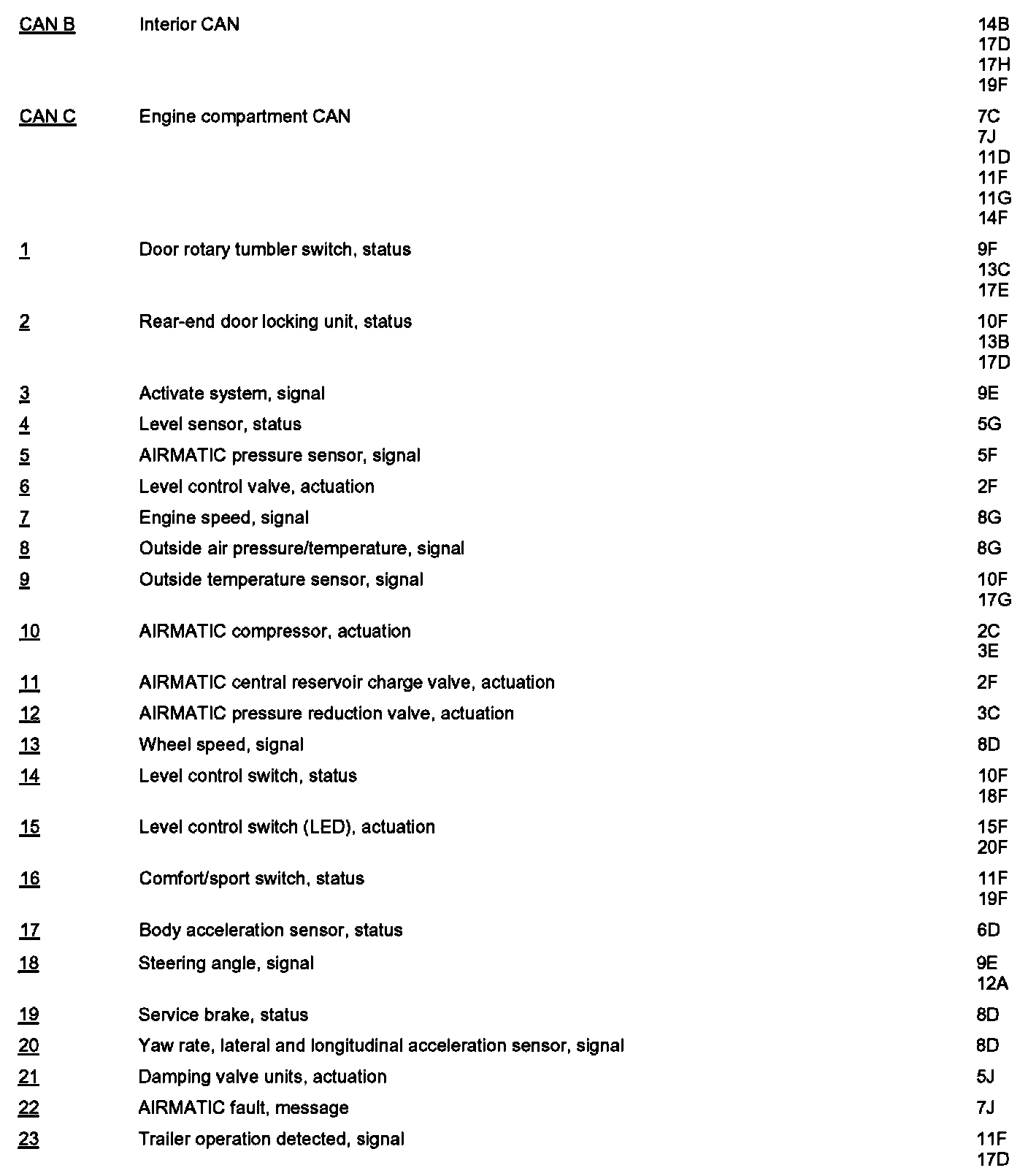

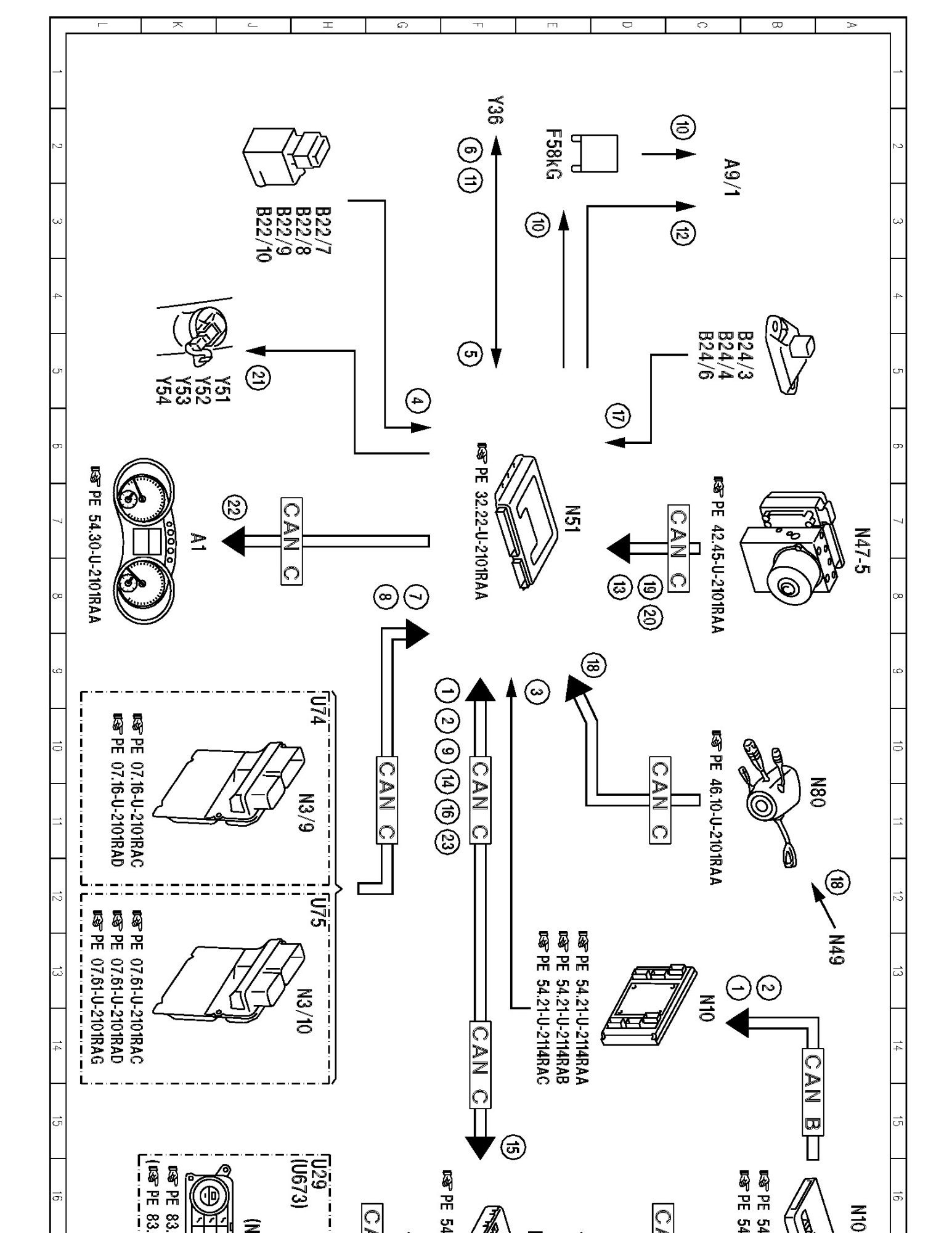

PE32.32-U-2050RAA Electrical Function Schematic For AIRmatic

PE32.32-U-2050RAA Electrical Function Schematic For AIRmatic
- with CODE (489) Airmatic (air suspension with level adjustment and adaptive damping system ADS)
- as of model year 09

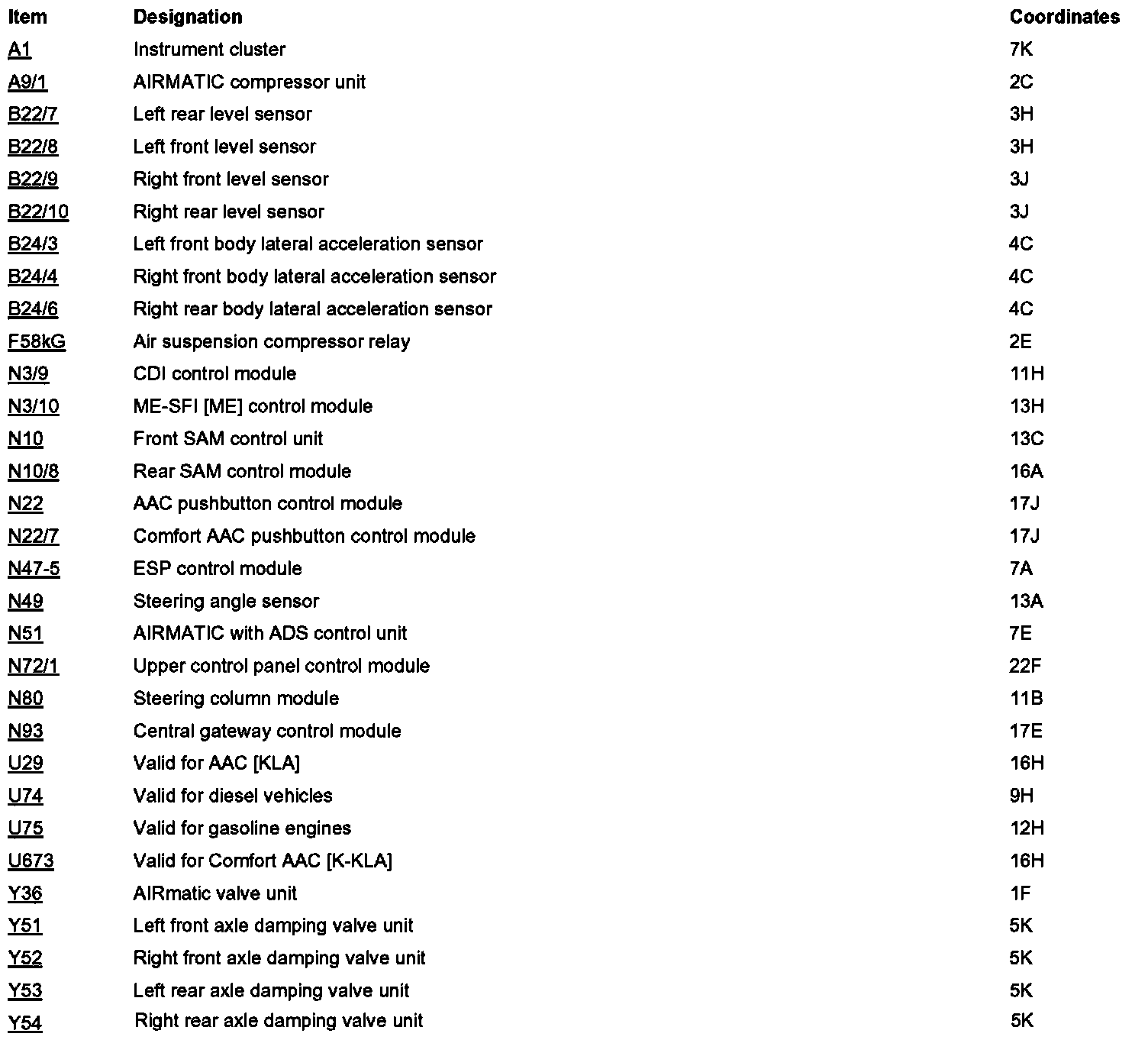

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
