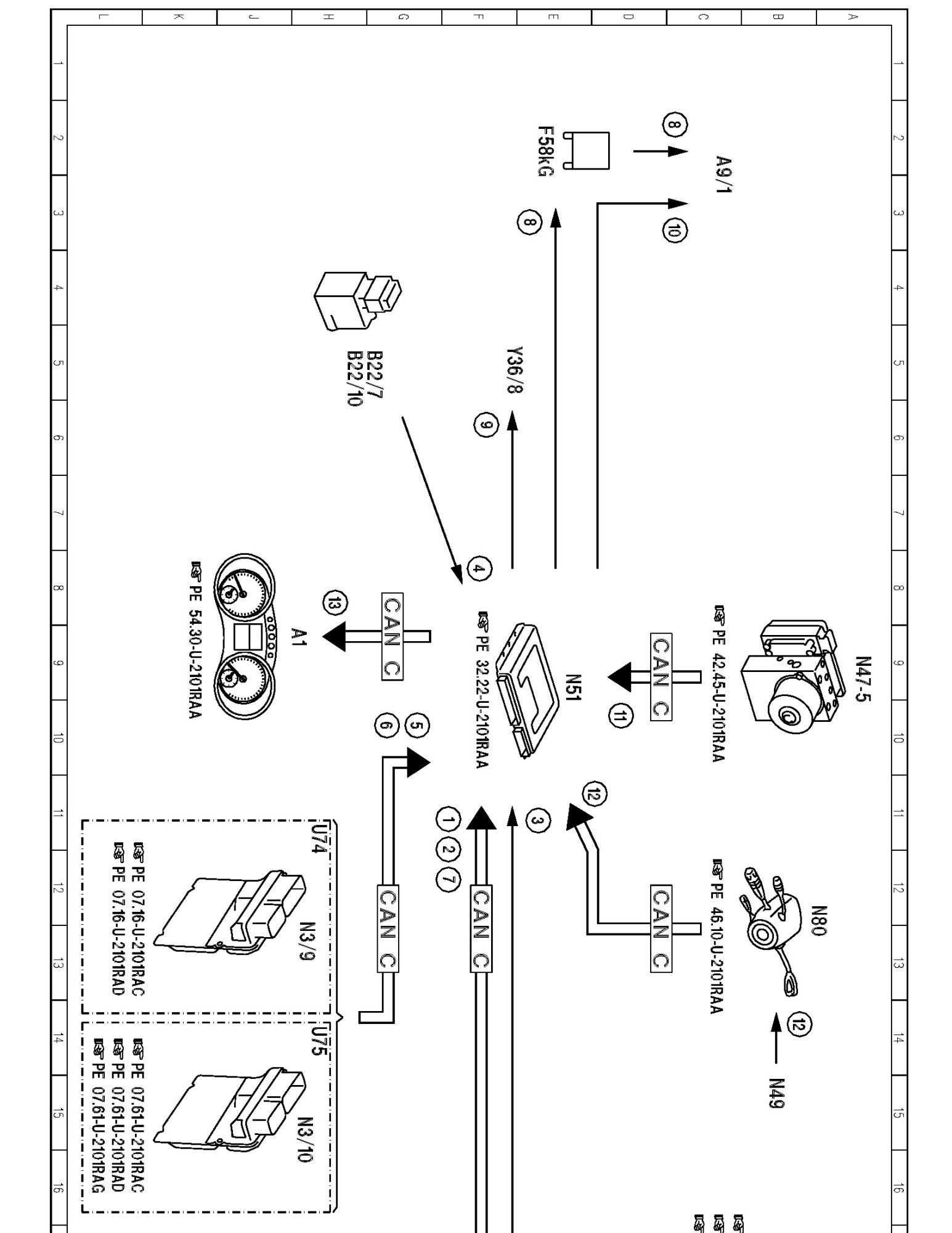

PE32.22-U-2052RAA Electrical Function Schematic For Rear Axle Level Control

PE32.22-U-2052RAA Electrical Function Schematic For Rear Axle Level Control
- with CODE (488) Steel/air suspension
- as of model year 09

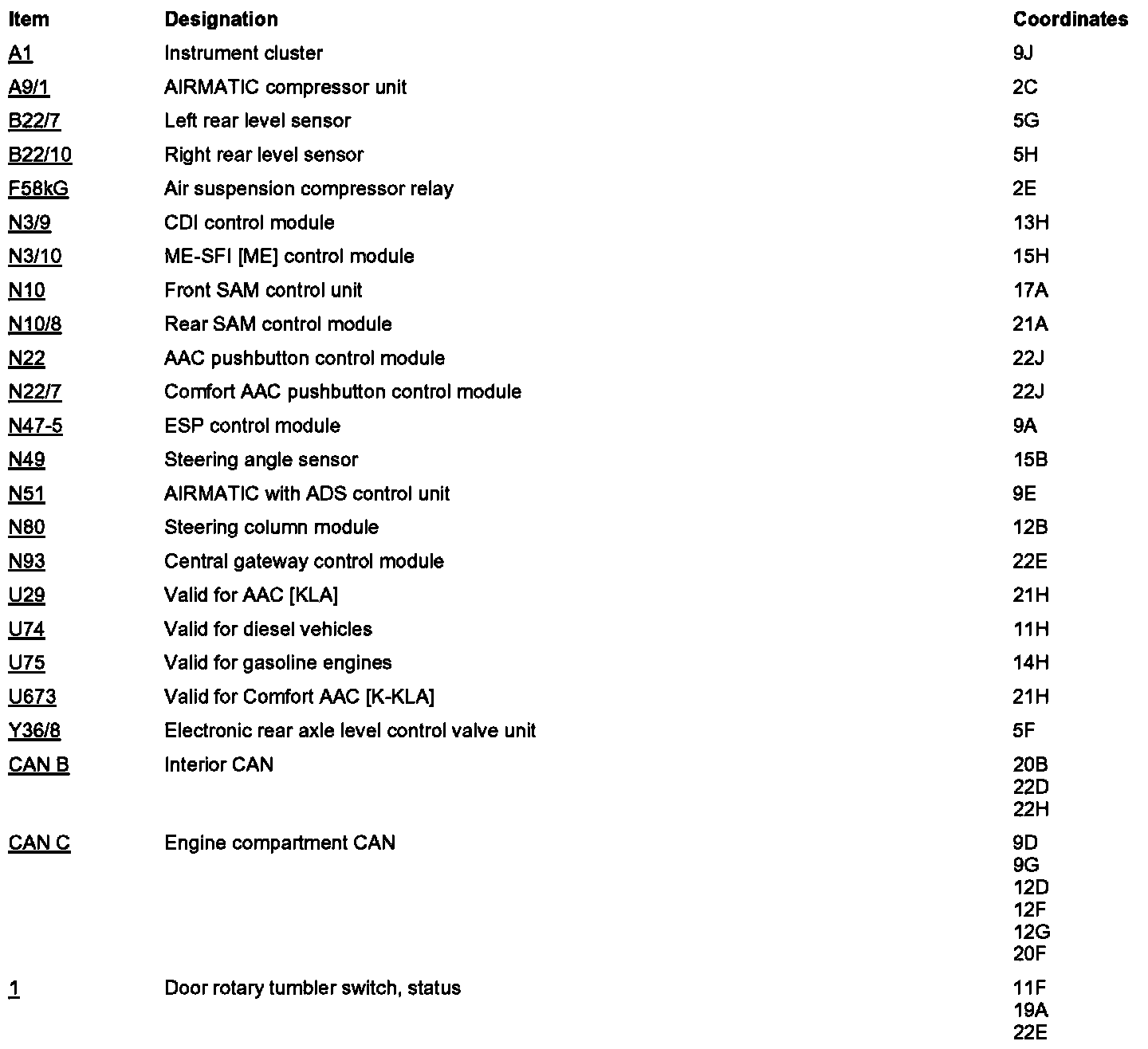

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
