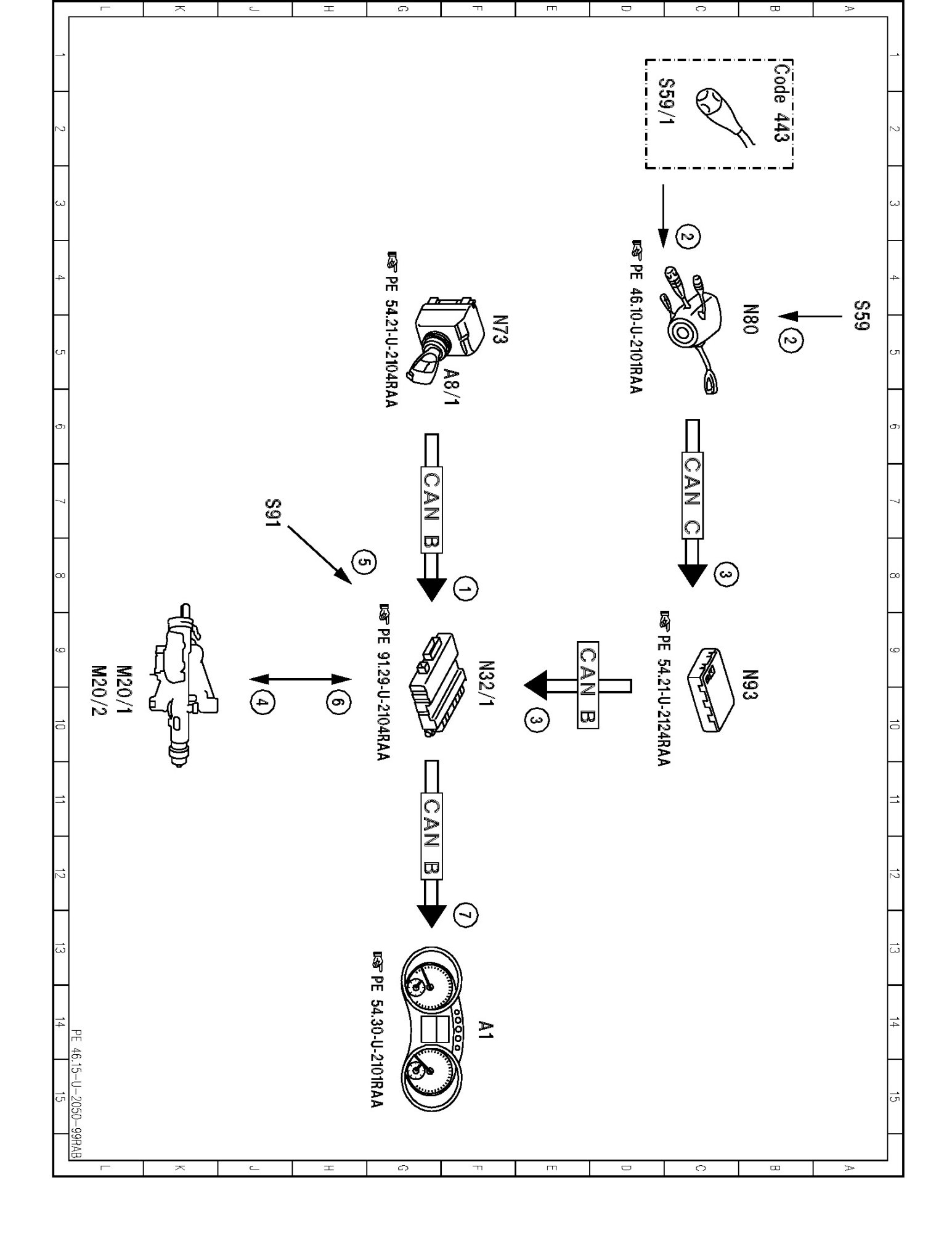

PE46.15-U-2050RAB Function Diagram of Electrical System For Steering Column Adjustment

PE46.15-U-2050RAB Function Diagram of Electrical System For Steering Column Adjustment
- with CODE (275) Memory package (driver seat, steering column, mirrors)
- as of model year 2009

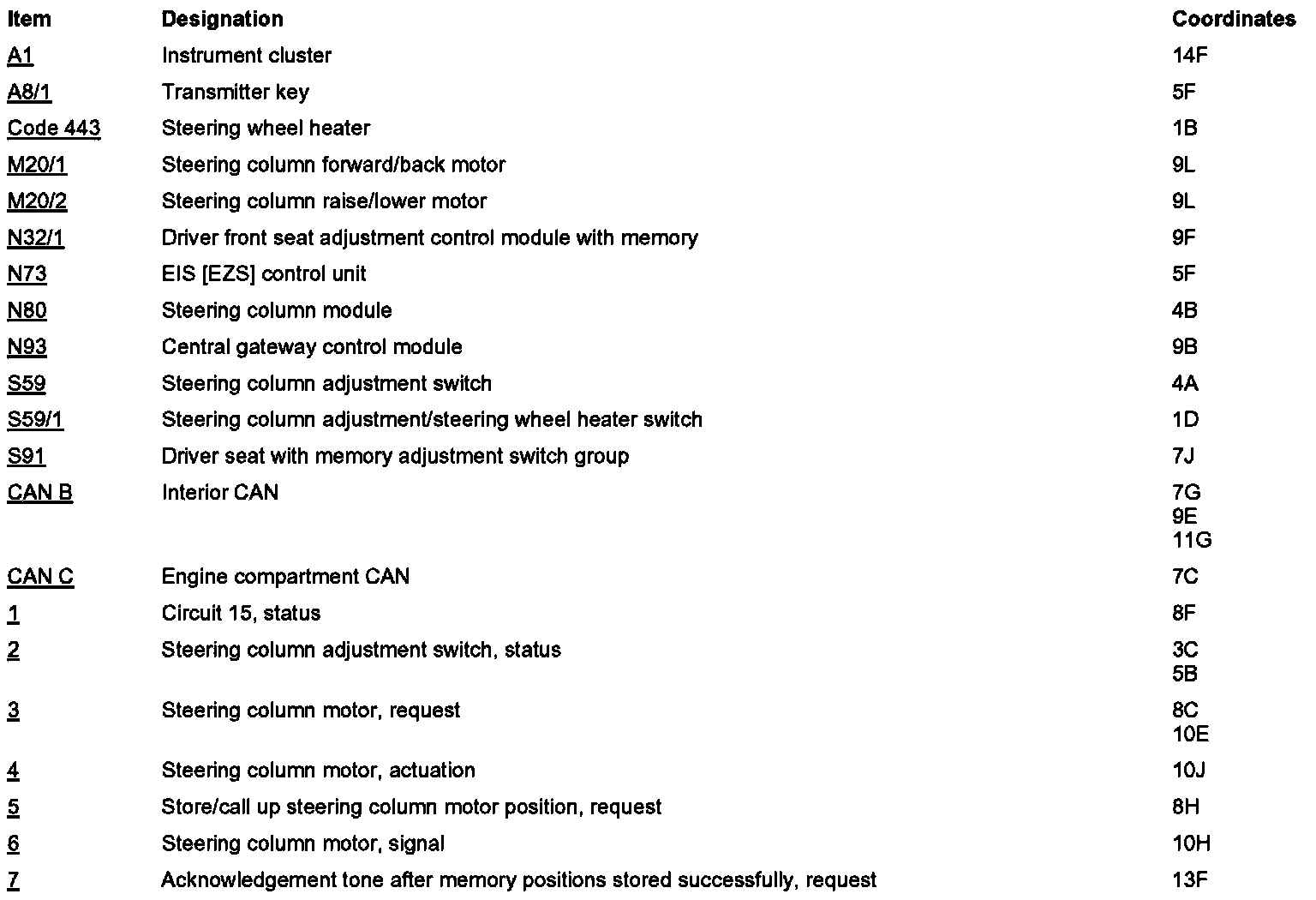

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
