PE15.30-U-2052RAA Electrical Function Schematic For Common Rail Diesel Injection (CDI), Starting/Starter Control

PE15.30-U-2052RAA Electrical Function Schematic For Common Rail Diesel Injection (CDI), Starting/Starter Control
- with CODE (U42) BLUETEC diesel exhaust gas cleaning
- as of model year 09

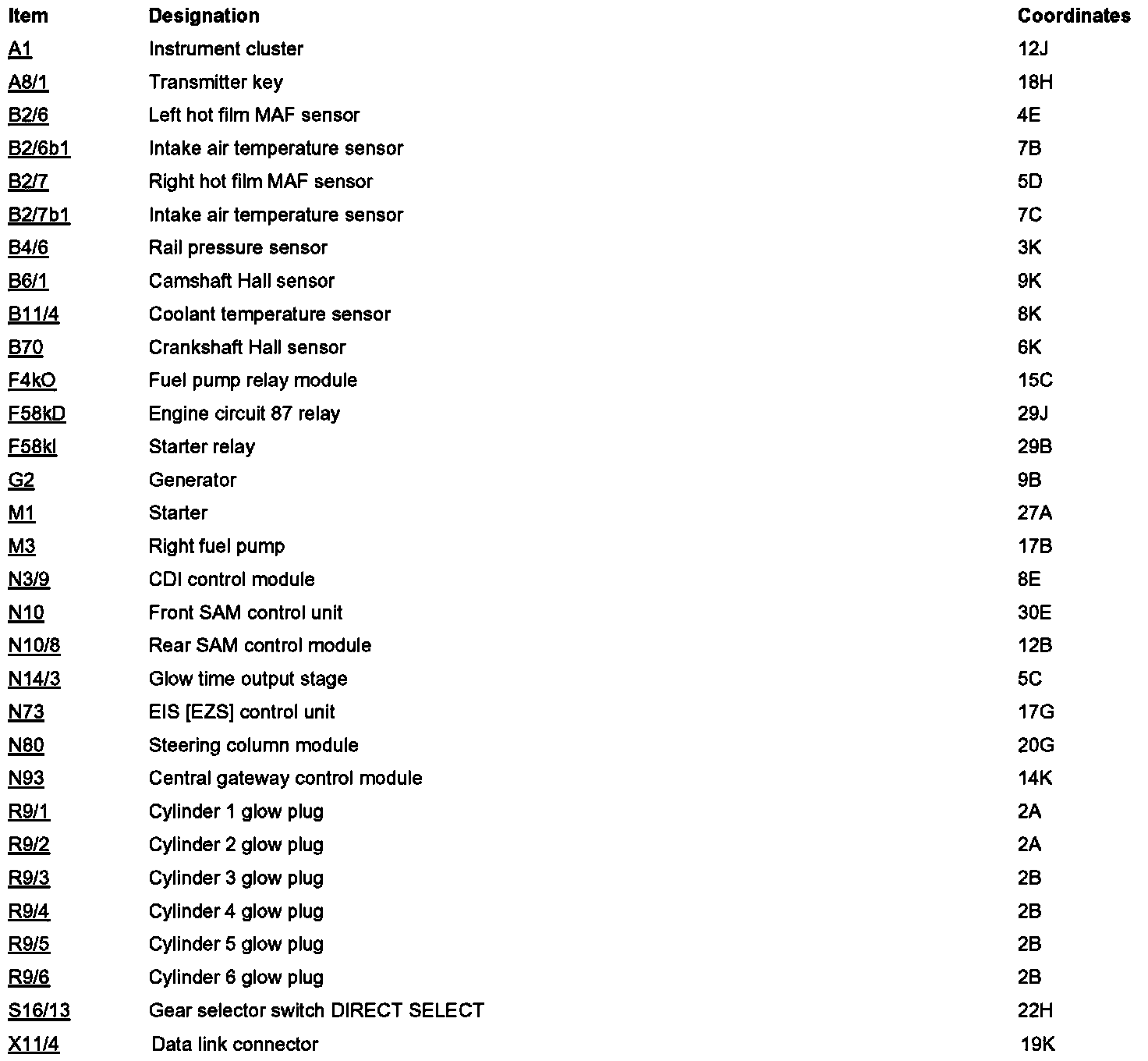

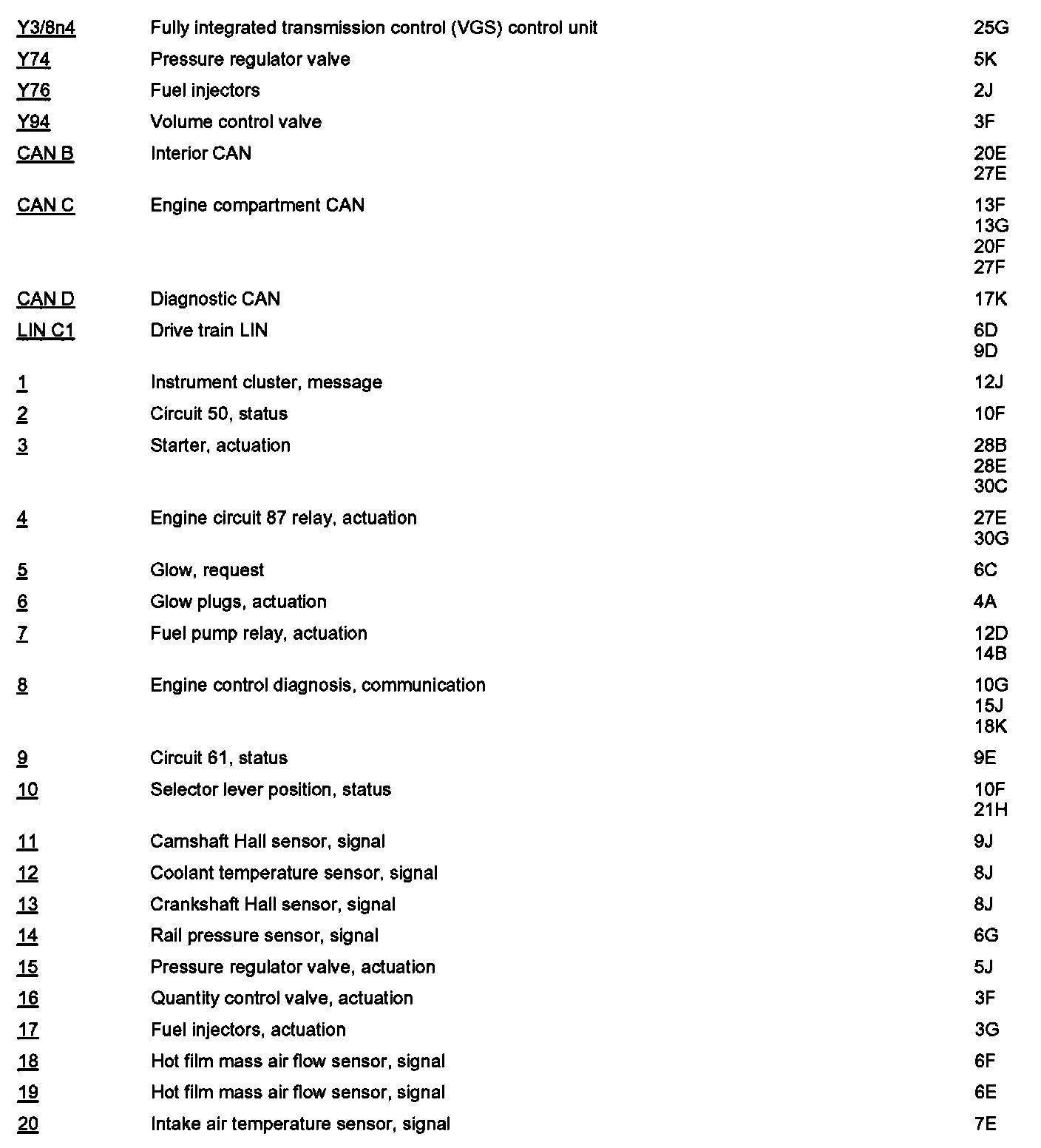

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
