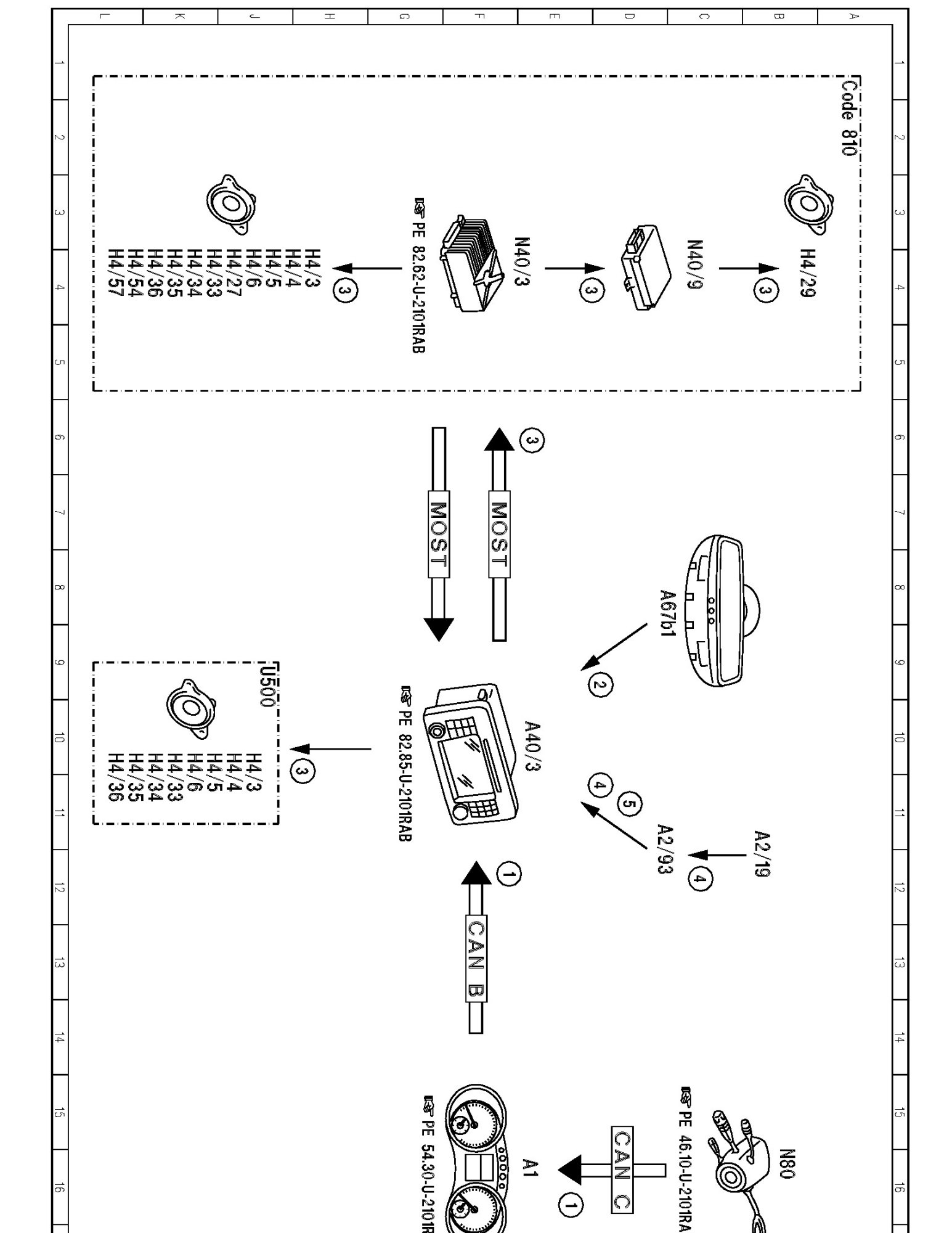

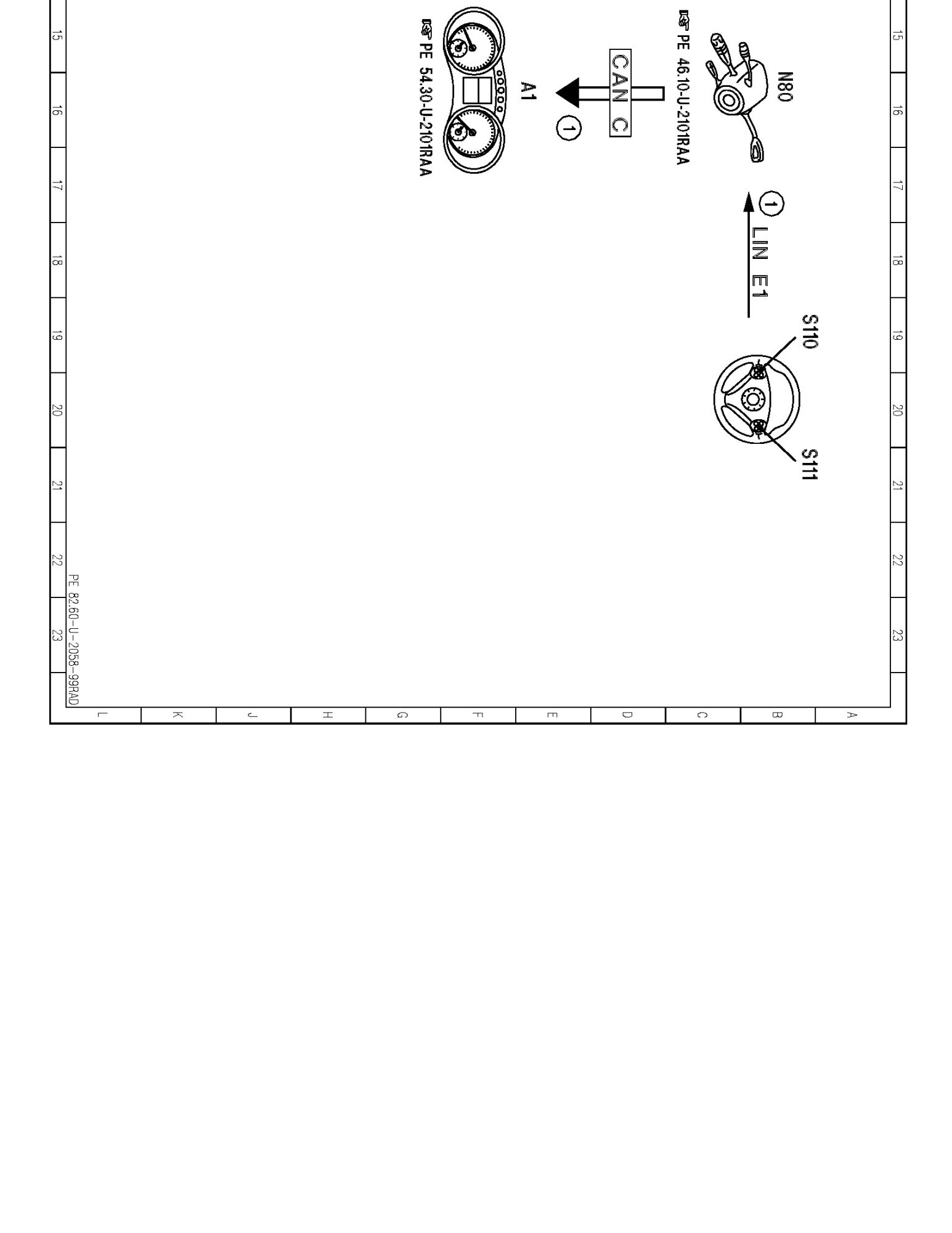

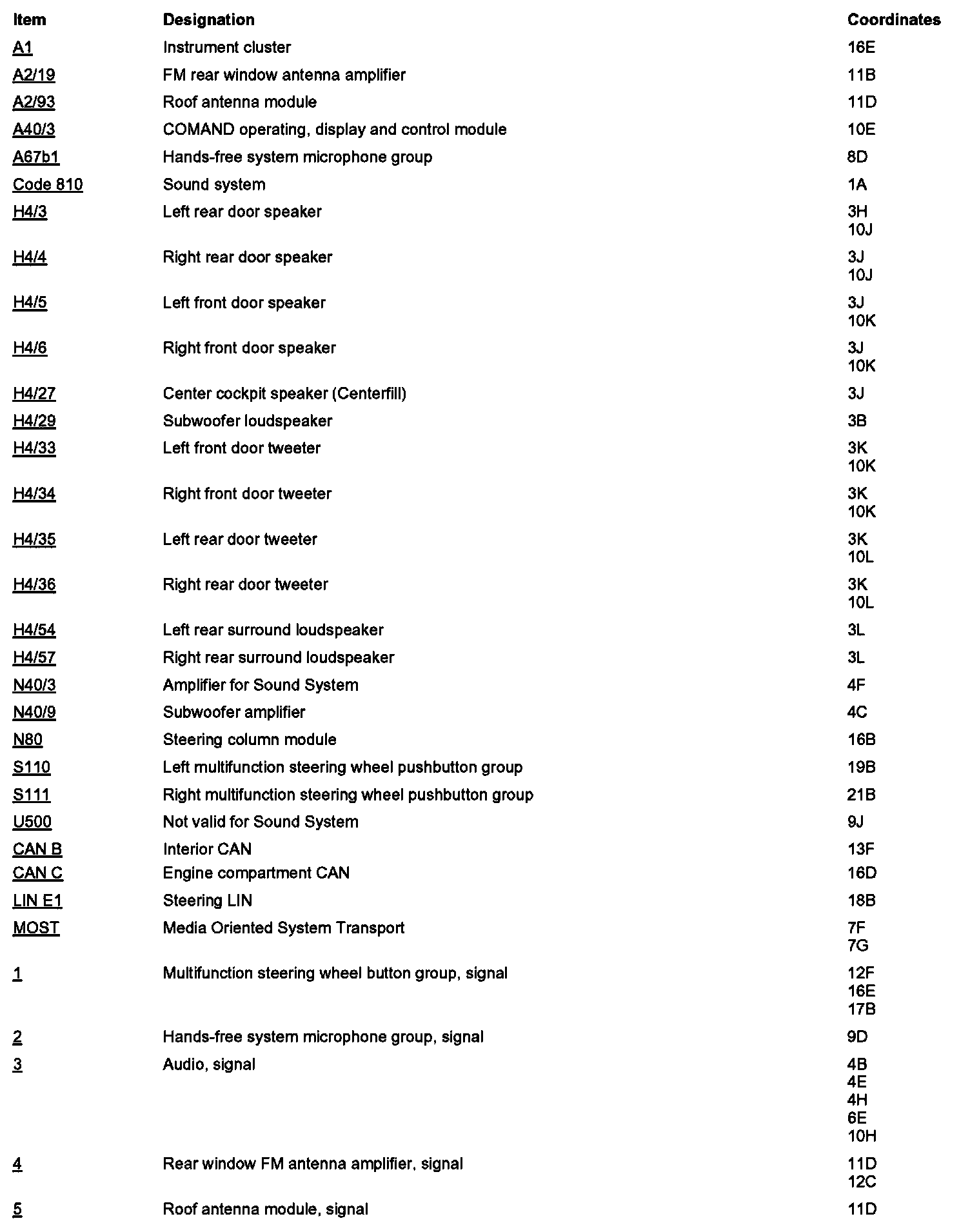

PE82.60-U-2058RAD Electrical Function Schematic For Audio Mode, Function

PE82.60-U-2058RAD Electrical Function Schematic For Audio Mode, Function















Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
