PE82.60-P-2059RAB Electrical Function Diagram For Volume/Sound Settings, Function

Electrical Function Diagram For Volume/sound Settings, Function PE82.60-P-2059RAB
- with CODE (525) MB Audio 50 APS radio
- as of model year 09

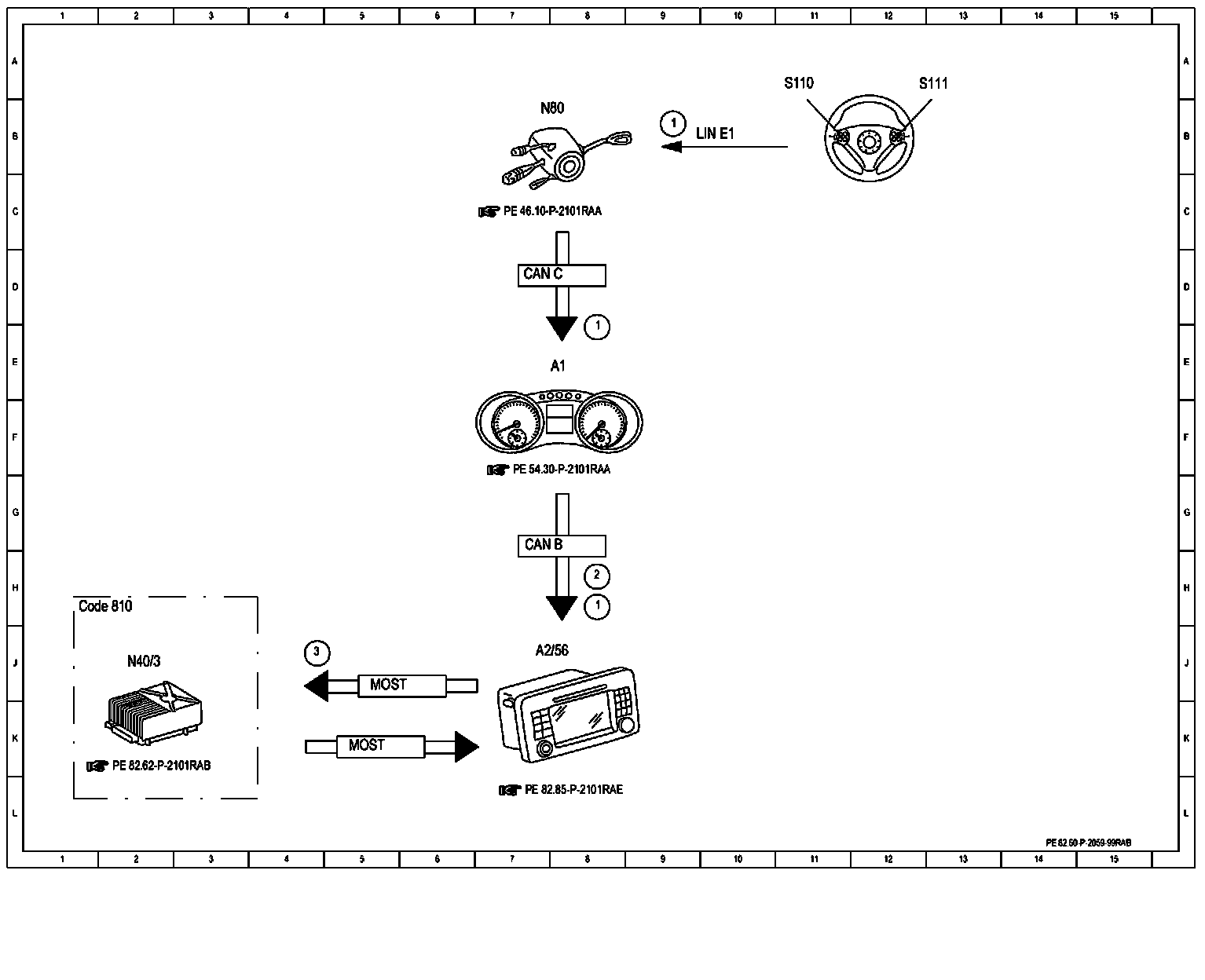

Function Diagram:

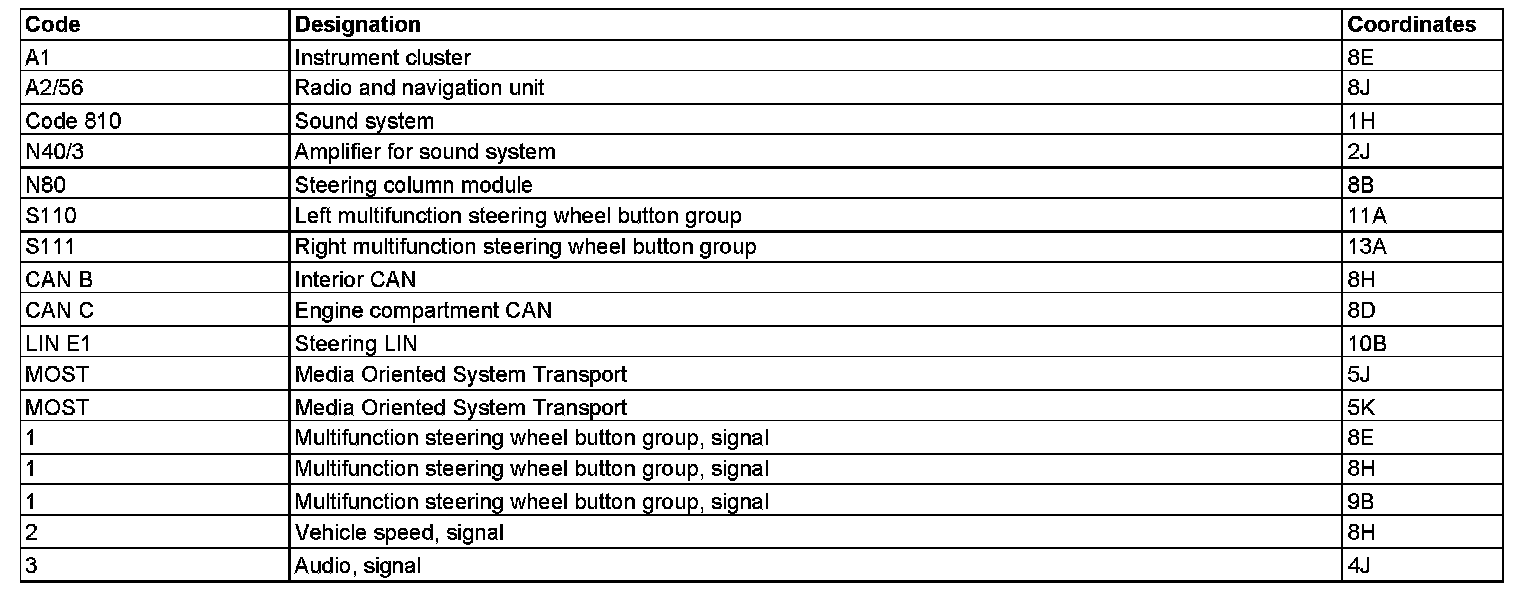

Component Description/Coordinates, A1 To 3:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
