PE82.60-P-2059RAA Electrical Function Diagram For Volume/Sound Settings, Function

Electrical Function Diagram For Volume/sound Settings, Function PE82.60-P-2059RAA
- with CODE (523) MB Audio 20 radio
- as of model year 09

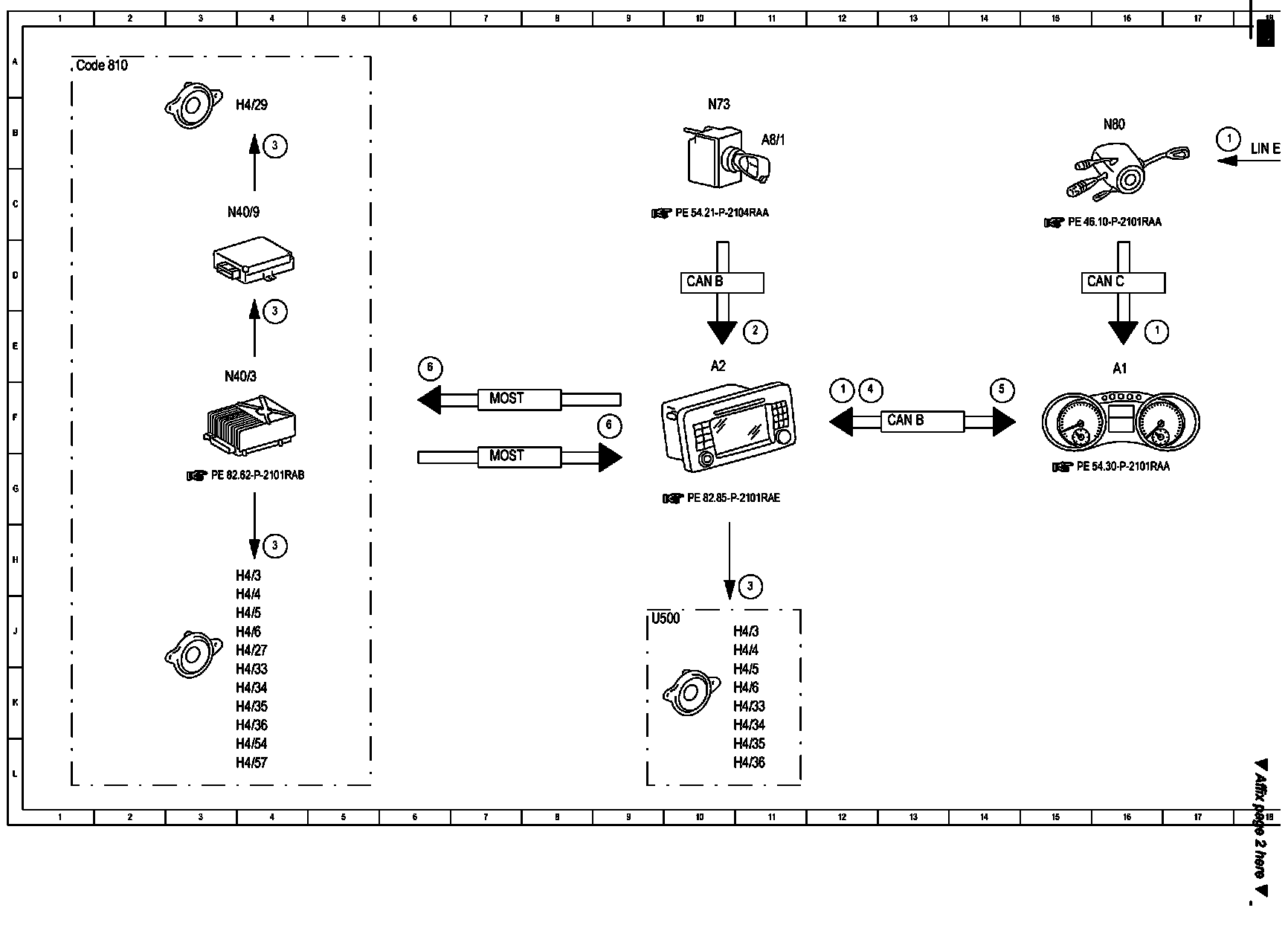

Function Diagram (Part 1):

Function Diagram (Part 2):

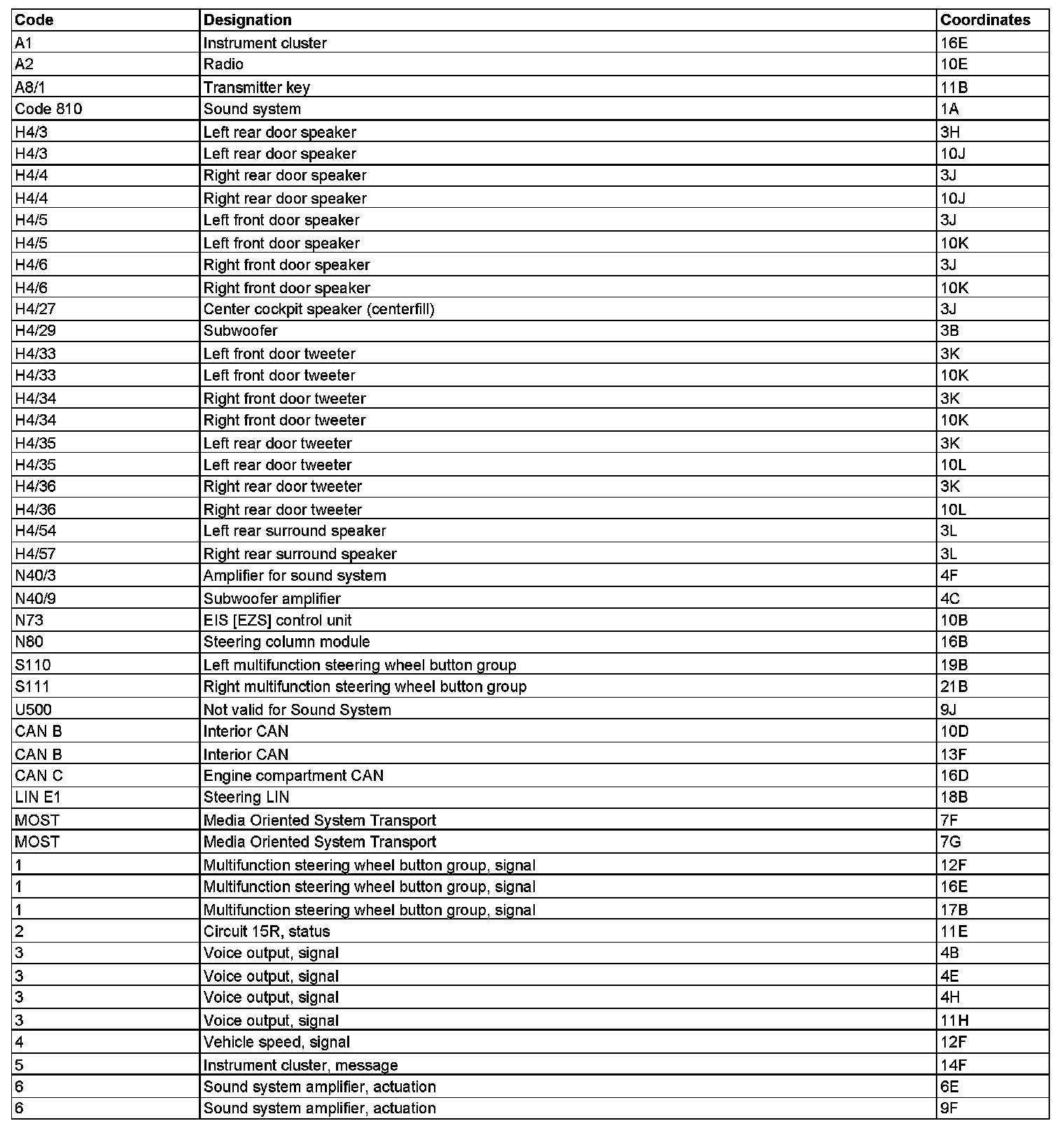

Component Description/Coordinates, A1 To 6:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
