PE82.60-P-2058RAC Electrical Function Diagram For Audio Mode, Function

Electrical Function Diagram For Audio Mode, Function PE82.60-P-2058RAC
- with CODE (525) MB Audio 50 APS radio
- as of model year 09

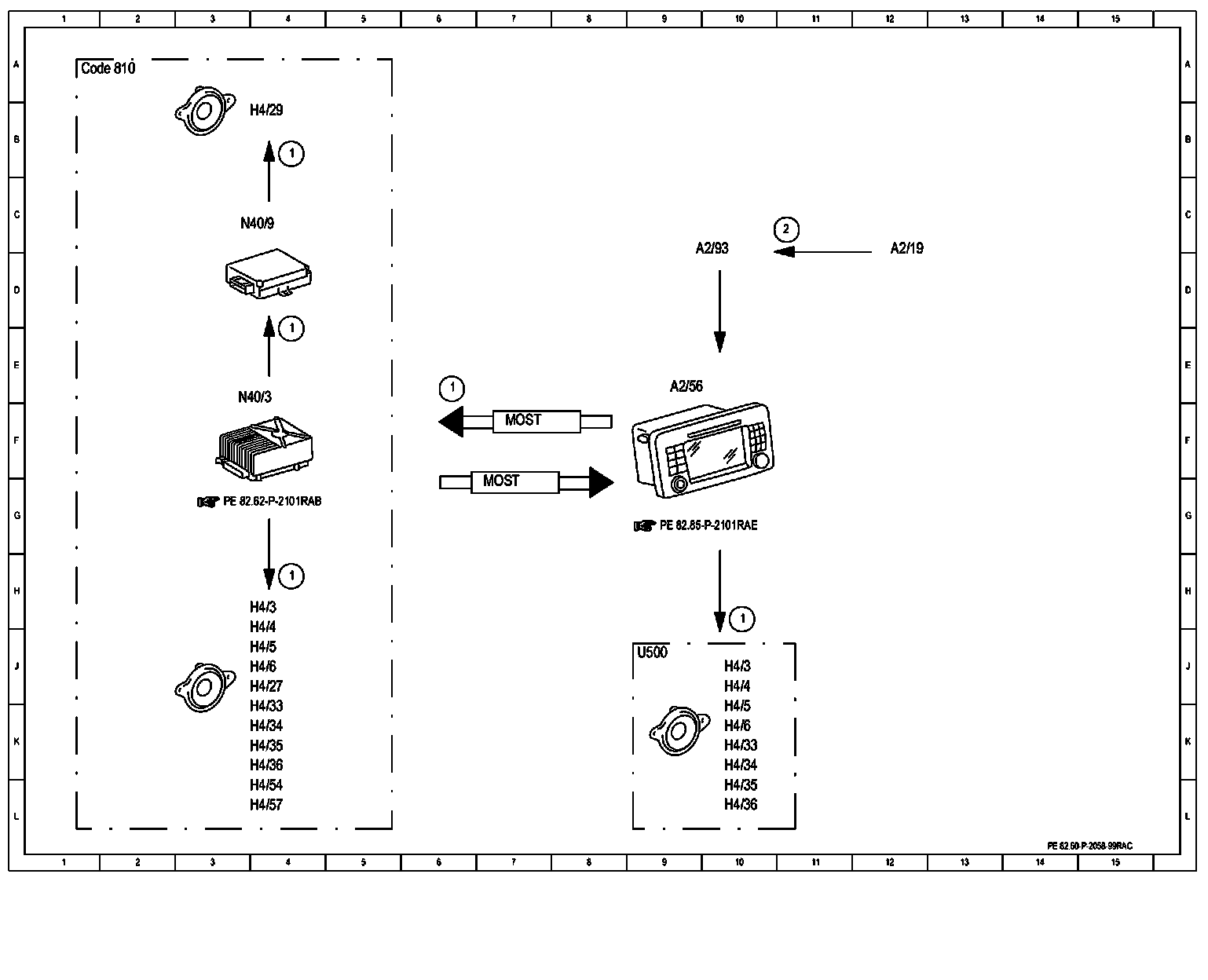

Function Diagram:

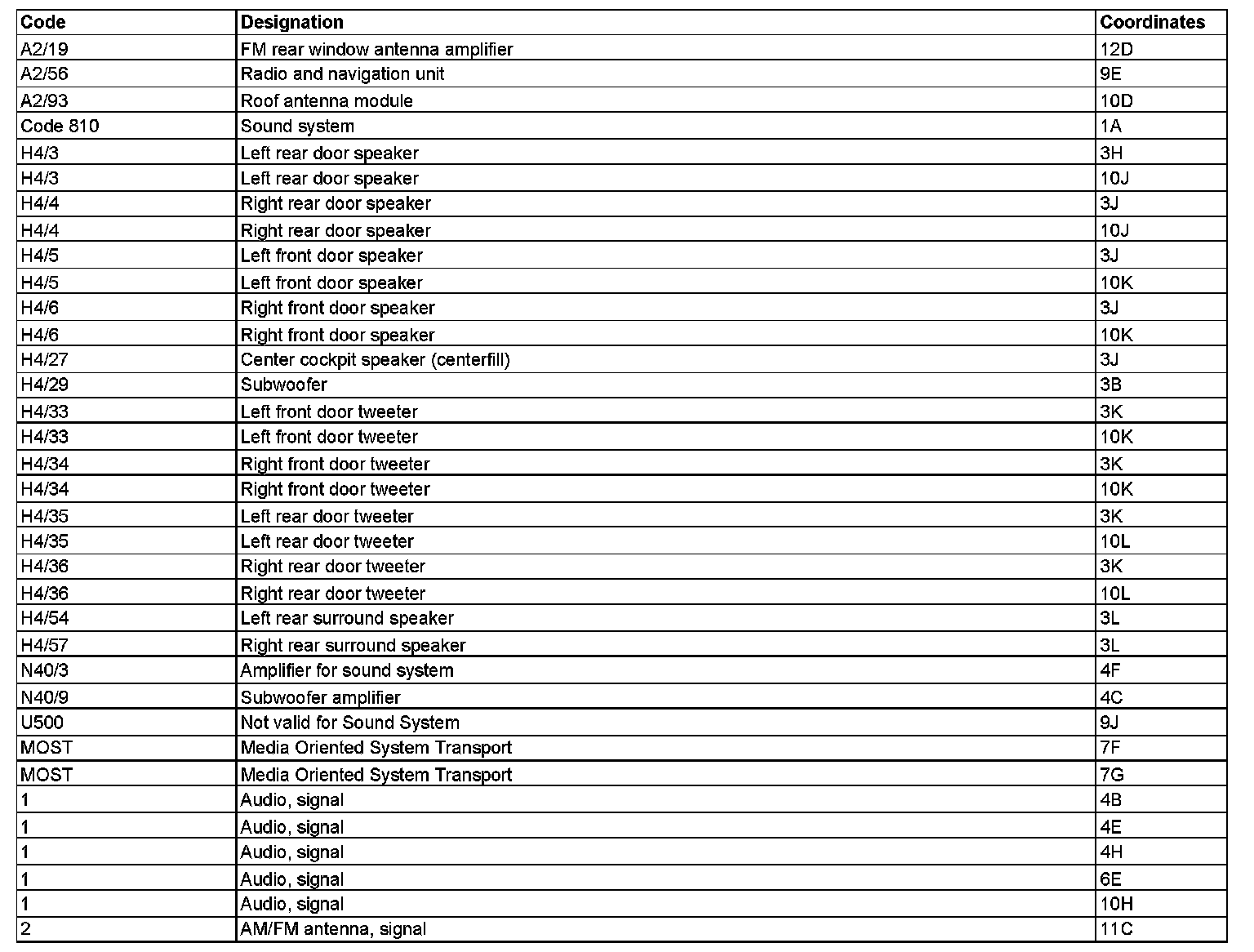

Component Description/Coordinates, A2/19 To 2:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
