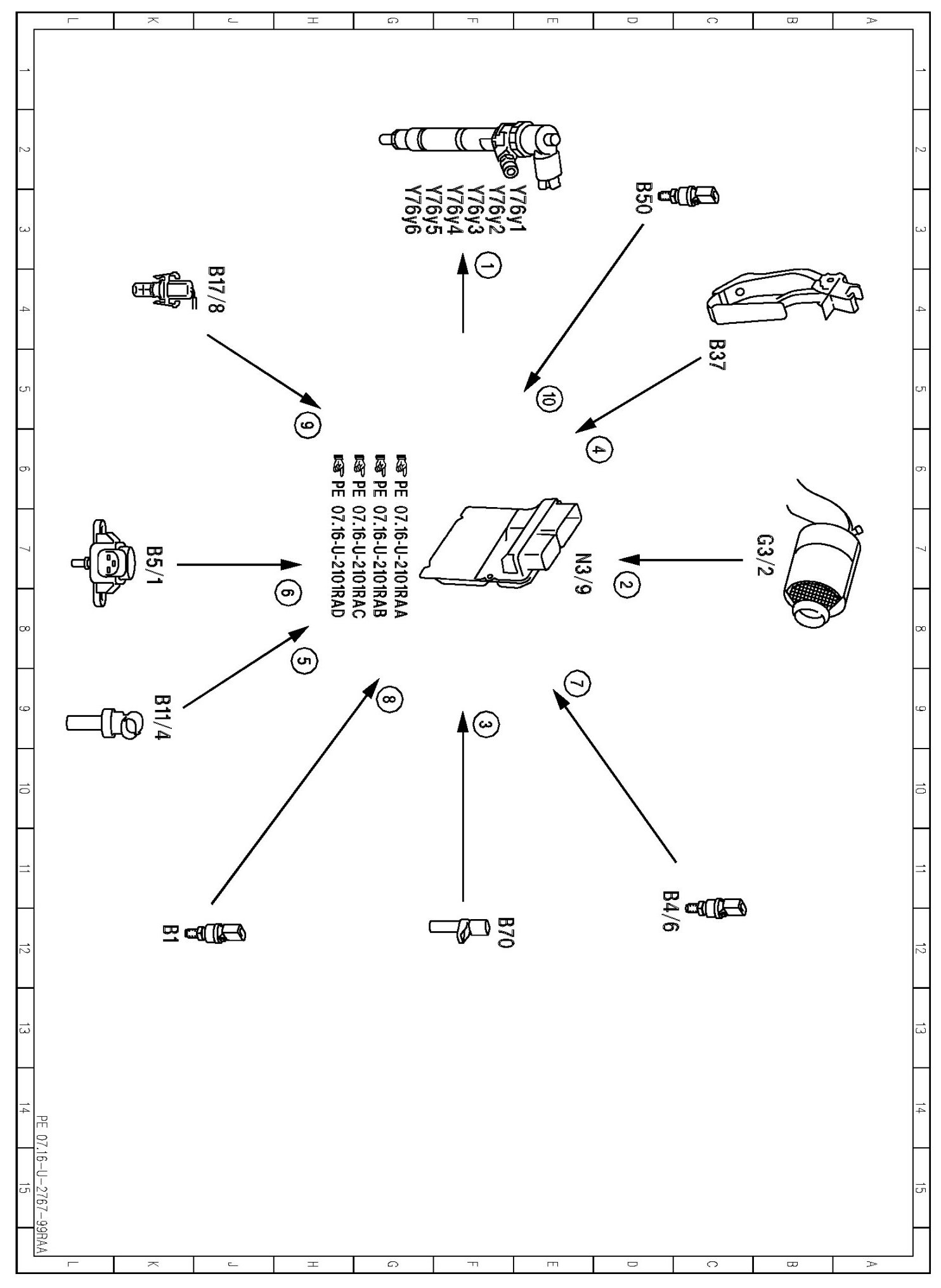

PE07.16-U-2767RAA Electrical Function Schematic For Common Rail Diesel Injection (CDI), Zero Quantity Calibration

PE07.16-U-2767RAA Electrical Function Schematic For Common Rail Diesel Injection (CDI), Zero Quantity Calibration

ENGINE 642.9 in MODEL 251.0
- as of Model Year 2009
ENGINE 642.9 in MODEL 251.1
- as of Model Year 2009
ENGINE 642.8 in MODEL 251.1
- with CODE (U42) BlueTEC diesel exhaust treatment (SCR)
- as of Model Year 2009

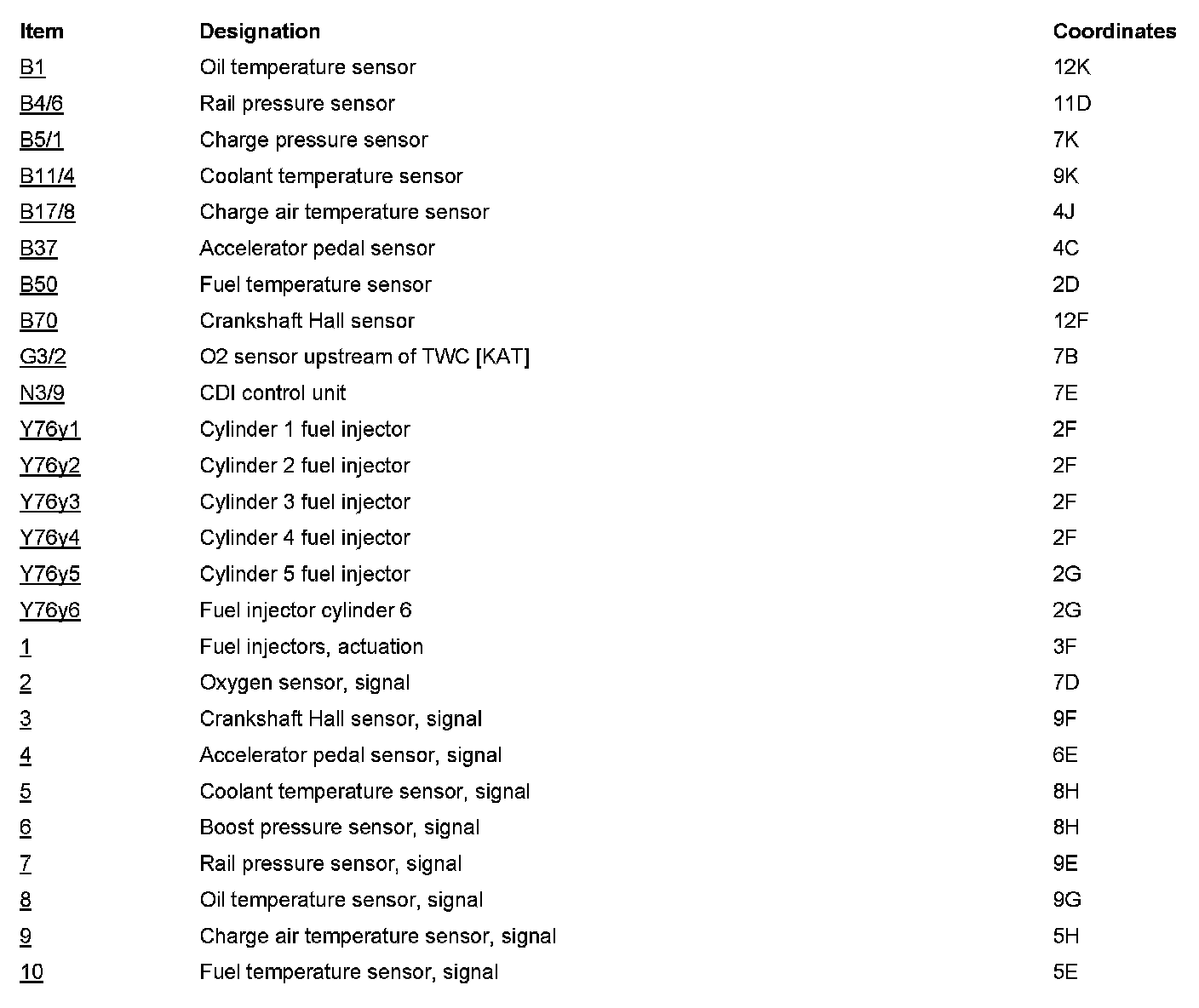

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Components
