PE07.16-U-2761RAB Electrical Function Schematic For Common Rail Diesel Injection (CDI), Injection Regulation

PE07.16-U-2761RAB Electrical Function Schematic For Common Rail Diesel Injection (CDI), Injection Regulation

ENGINE 642.8 in MODEL 251.1
- with CODE (U42) BlueTEC diesel exhaust treatment (SCR)
- as of Model Year 2009

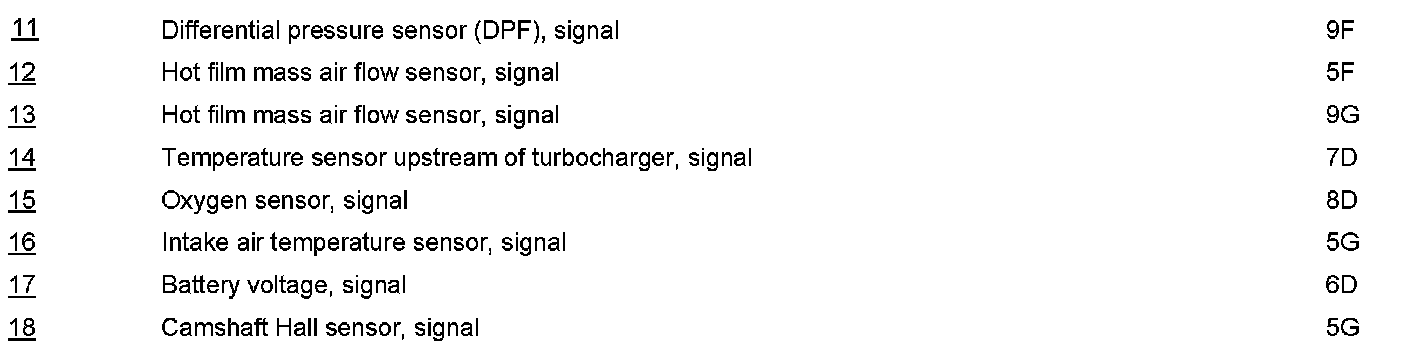

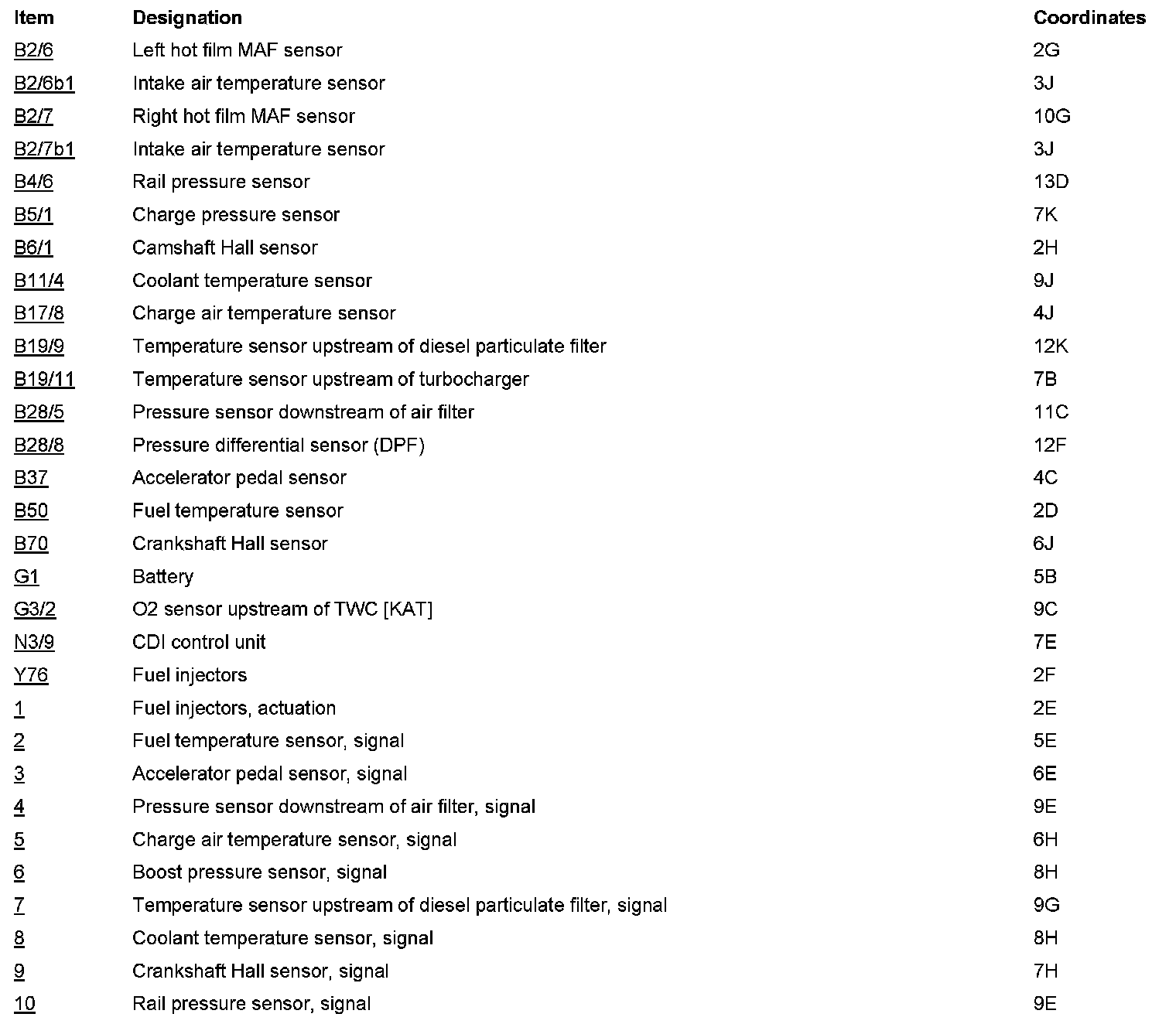

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Components
