PE15.10-U-2051RAB Electrical Function Schematic For Common Rail Diesel Injection (CDI), Ignition OFF

PE15.10-U-2051RAB Electrical Function Schematic For Common Rail Diesel Injection (CDI), Ignition OFF
- with CODE (U42) BLUETEC diesel exhaust gas cleaning
- as of model year 09

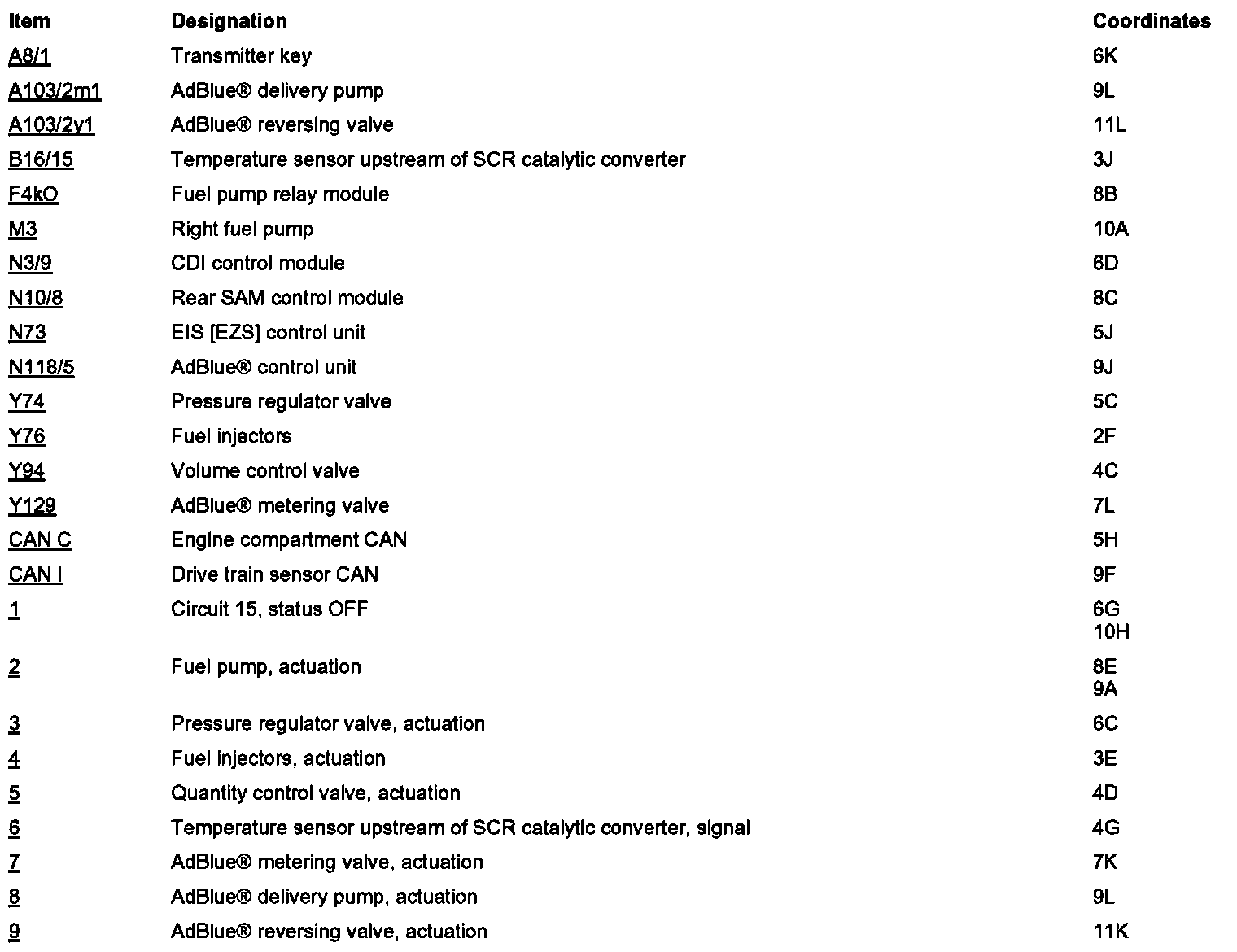

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
