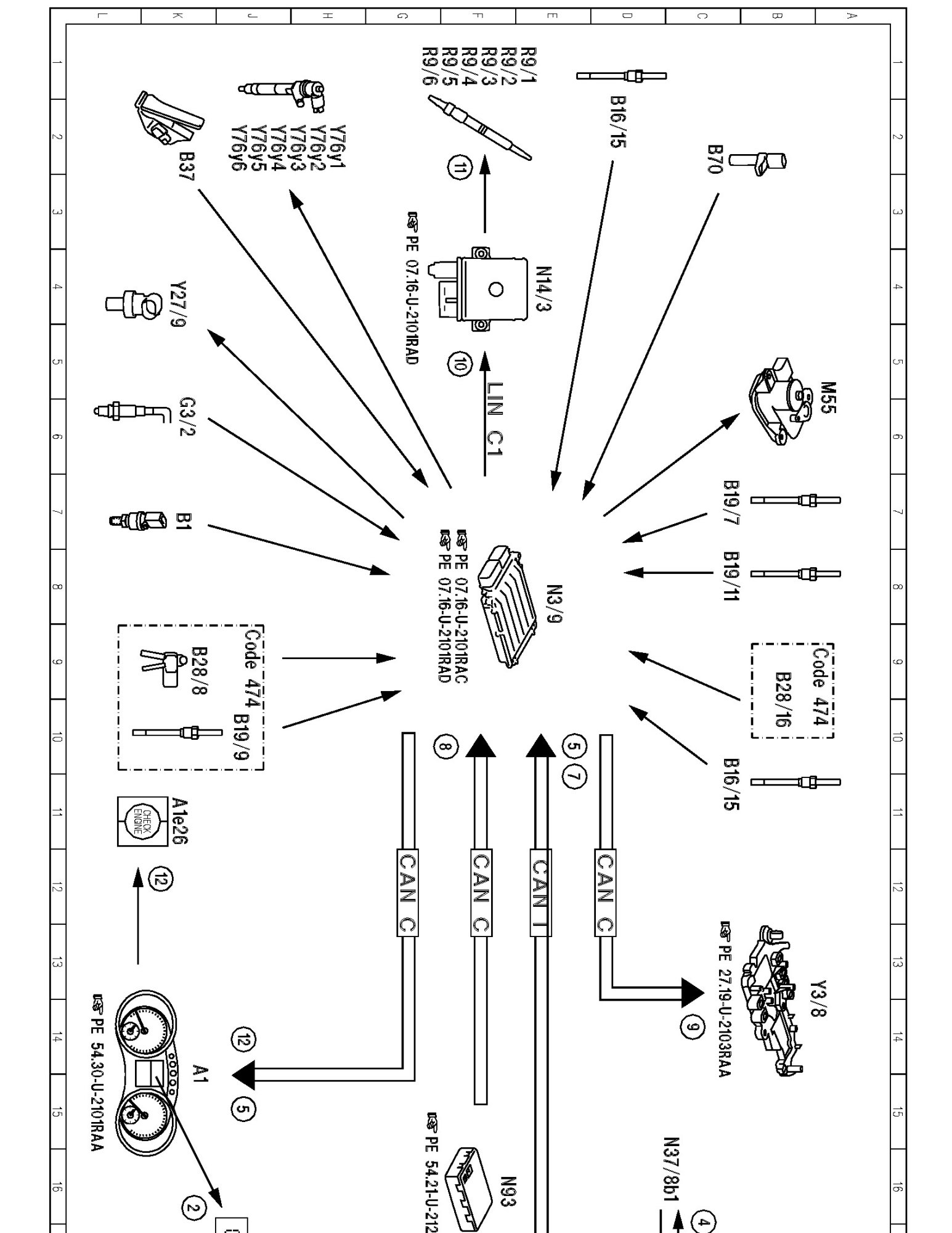

PE14.00-U-2051RAA Electrical Function Schematic For Exhaust Treatment

PE14.00-U-2051RAA Electrical Function Schematic For Exhaust Treatment
- with CODE (U42) BlueTEC diesel exhaust treatment (SCR)


















Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
