PE14.00-U-2050RAB Electrical Function Schematic For Common Rail Diesel Injection (CDI), Exhaust Gas Cleaning

PE14.00-U-2050RAB Electrical Function Schematic For Common Rail Diesel Injection (CDI), Exhaust Gas Cleaning
- with CODE (U42) BLUETEC diesel exhaust gas cleaning
- as of model year 09

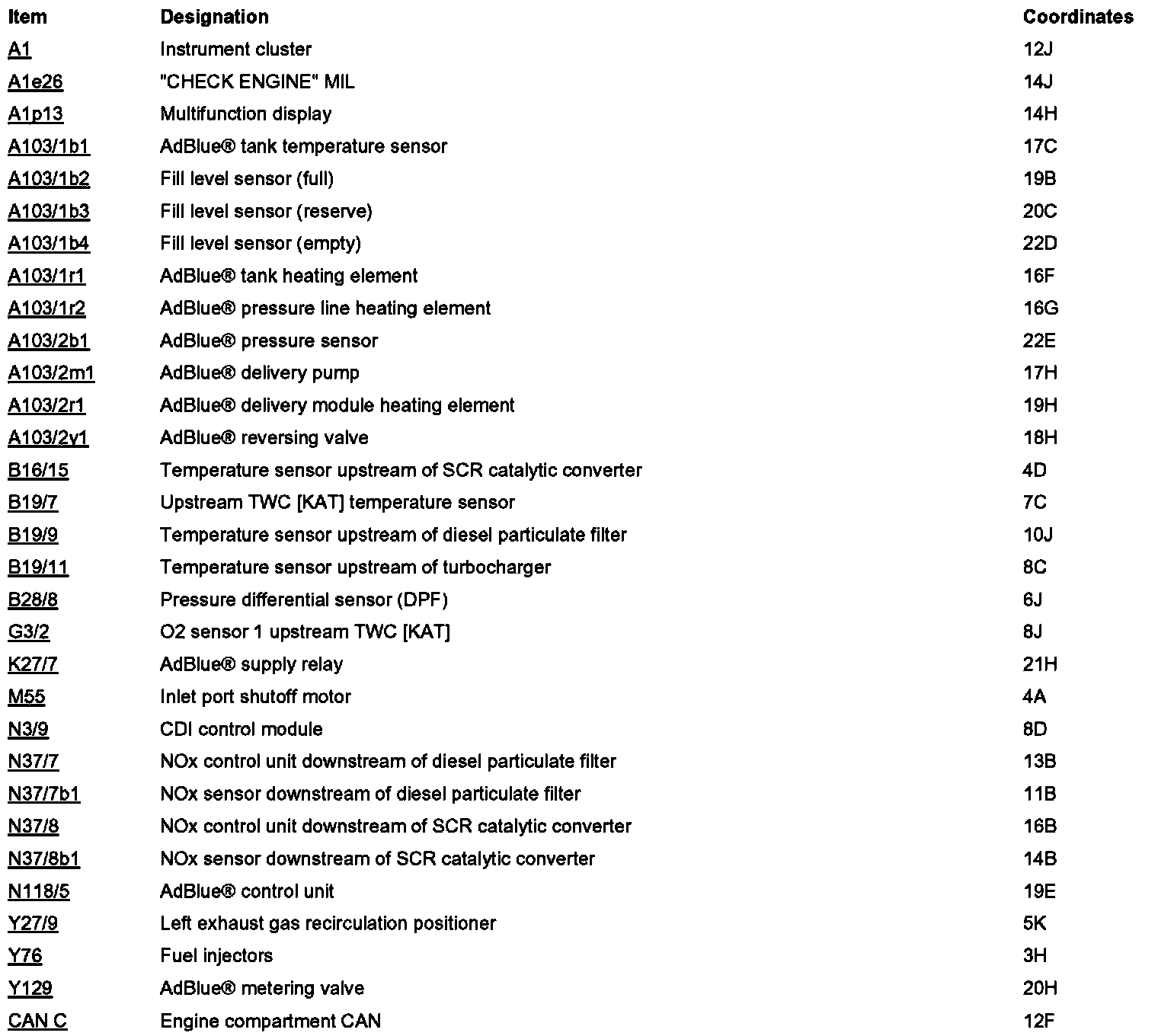

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
