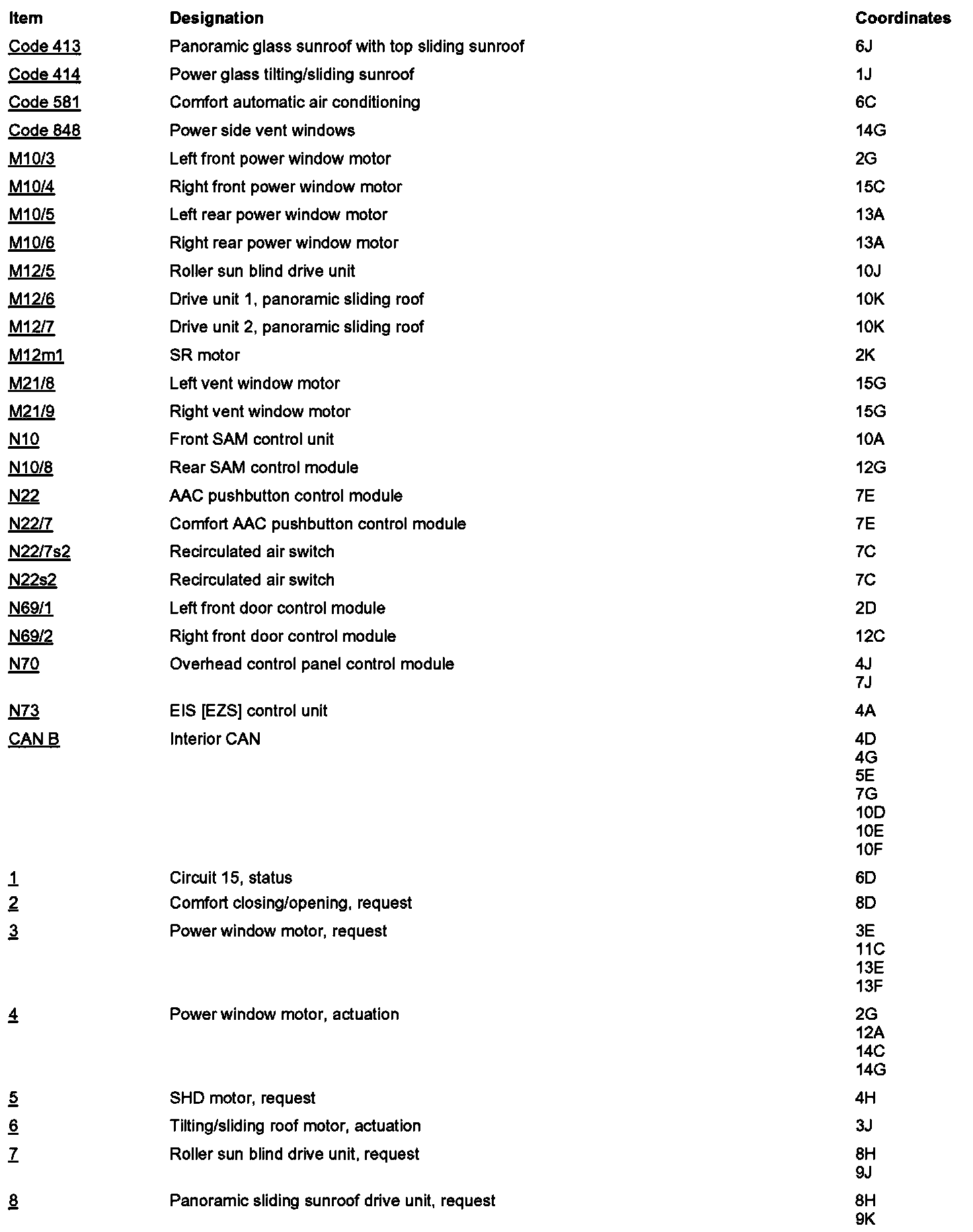

PE80.45-U-2053RAA Electrical Function Diagram For Comfort Opening/Closing Over Air Recirculation Function

PE80.45-U-2053RAA Electrical Function Diagram For Comfort Opening/Closing Over Air Recirculation Function
- as of model year 2009










Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
