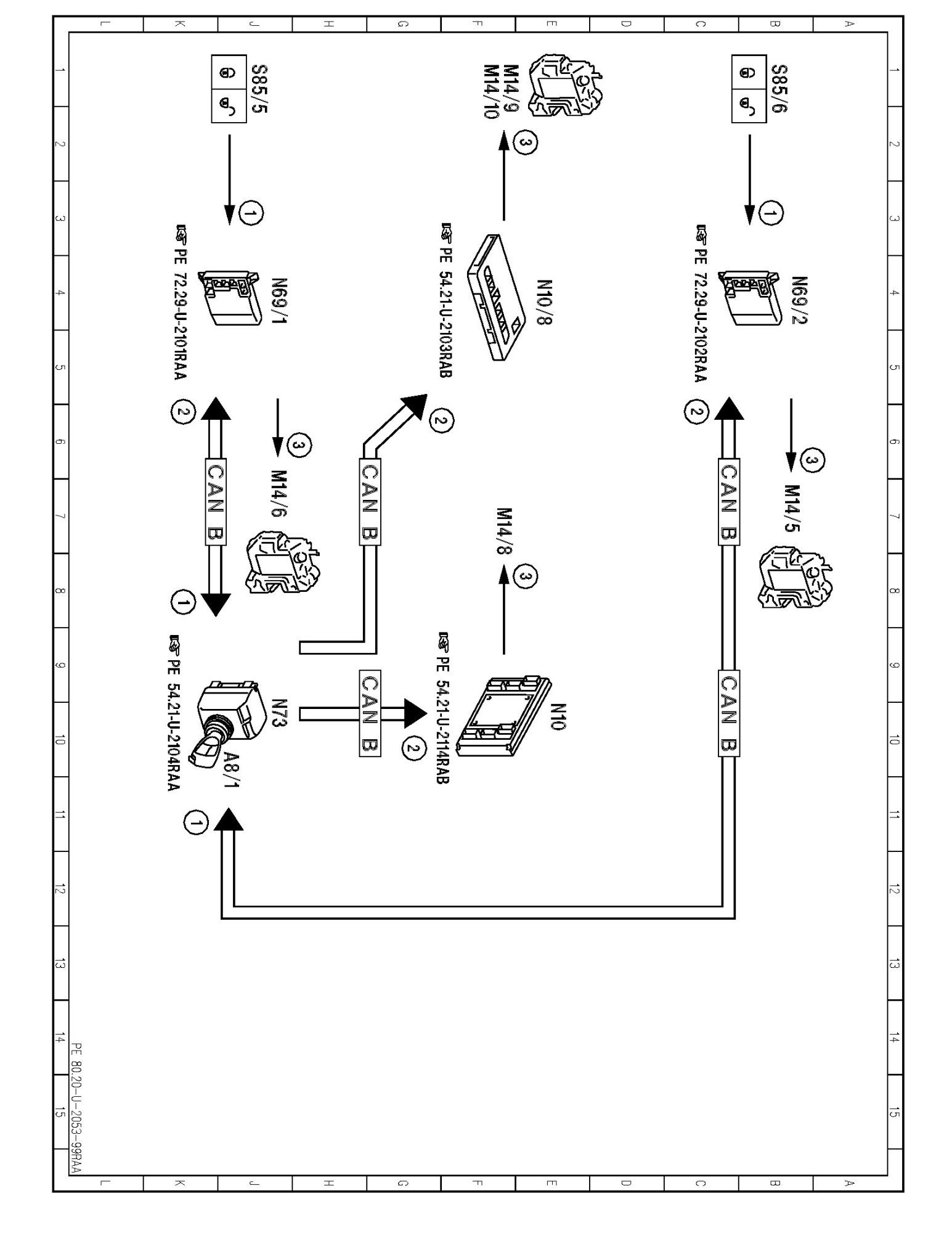

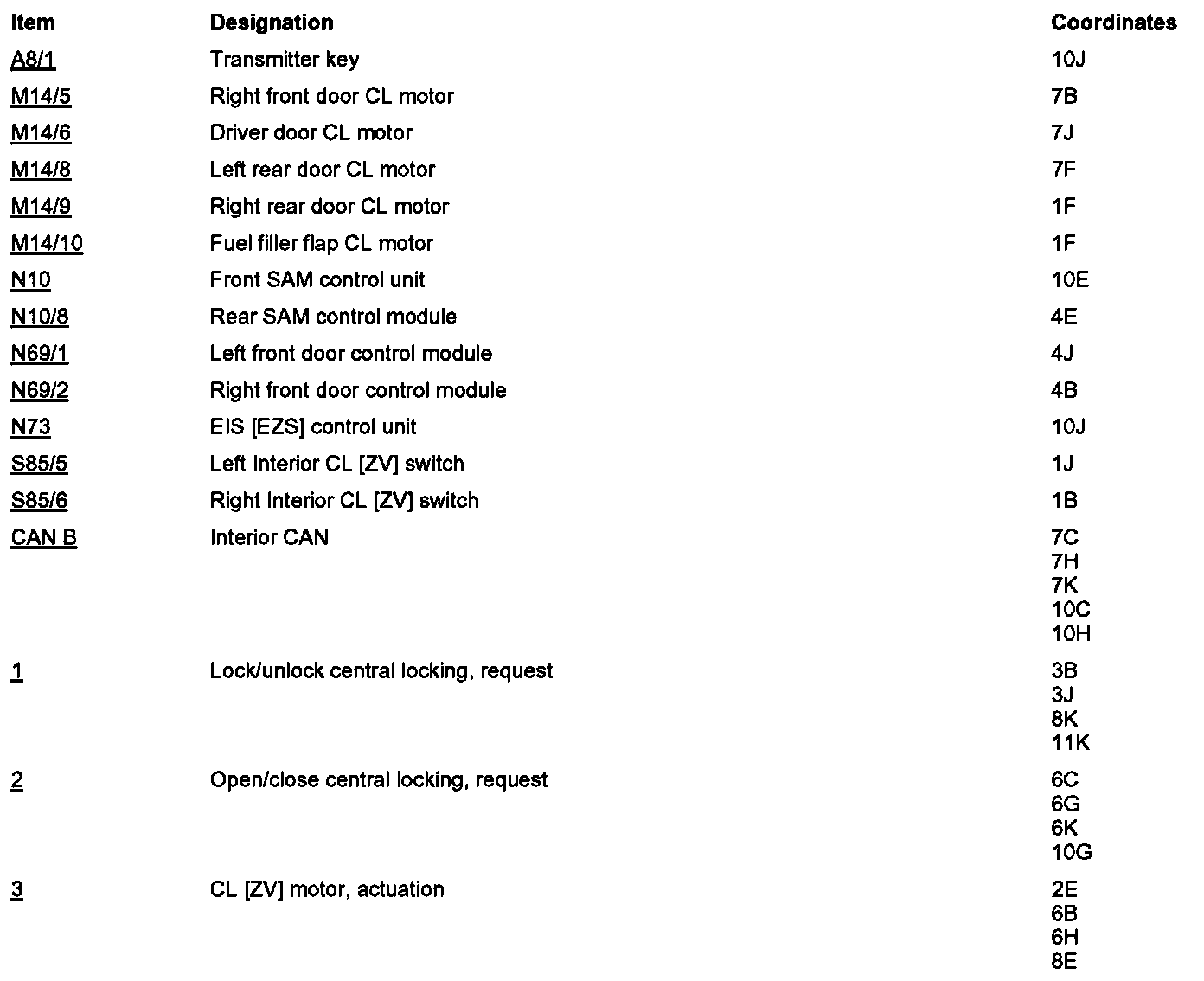

PE80.20-U-2053RAA Electrical Function Diagram For Central Locking System With Inside Switch, Lock and Release

PE80.20-U-2053RAA Electrical Function Diagram For Central Locking System With Inside Switch, Lock and Release
- as of model year 2009










Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
