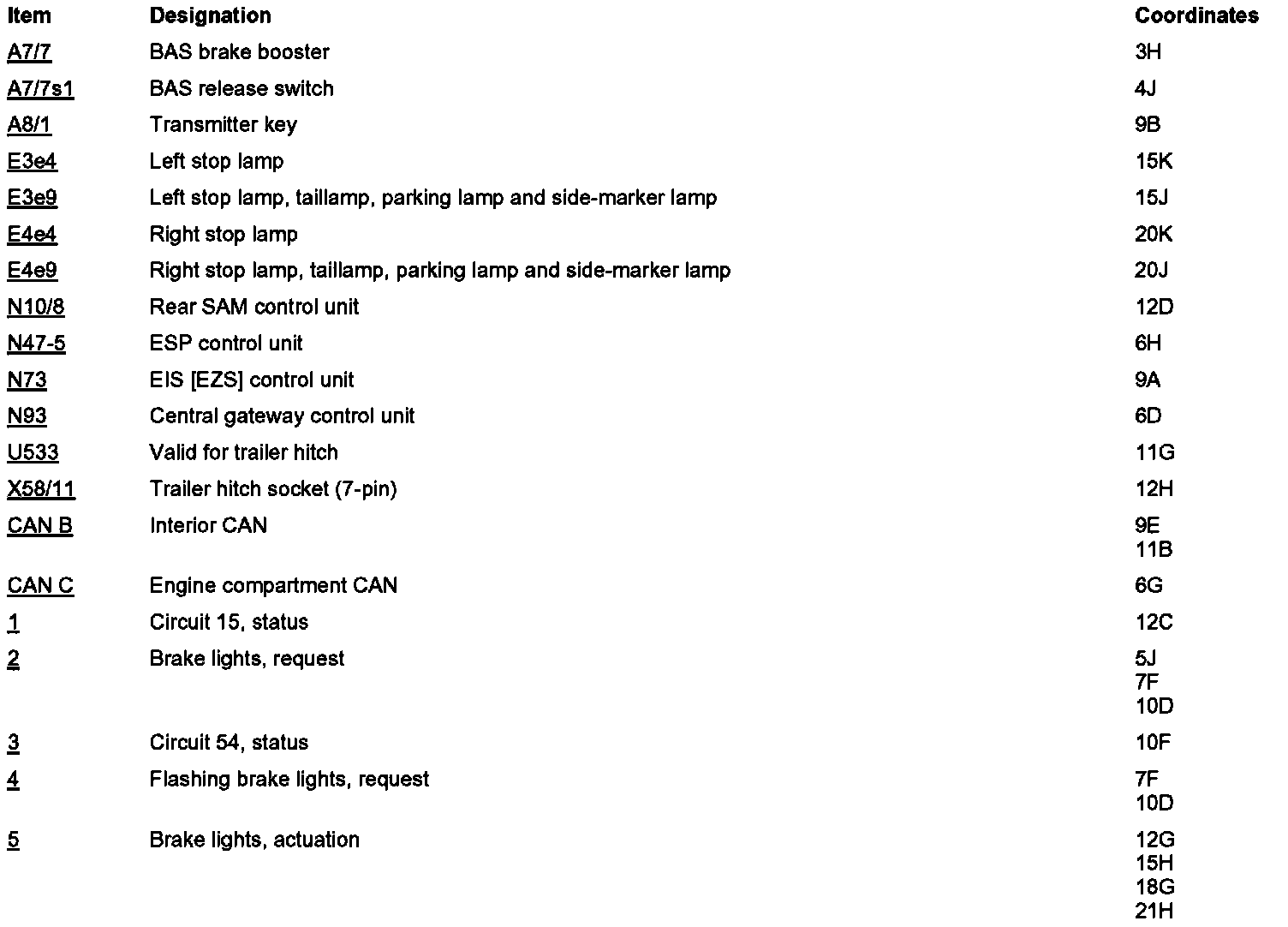

PE82.10-U-2057RAA Electrical Function Diagram For Brake Light Actuation



PE82.10-U-2057RAA Electrical Function Diagram For Brake Light Actuation
- as of model year 09














Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
