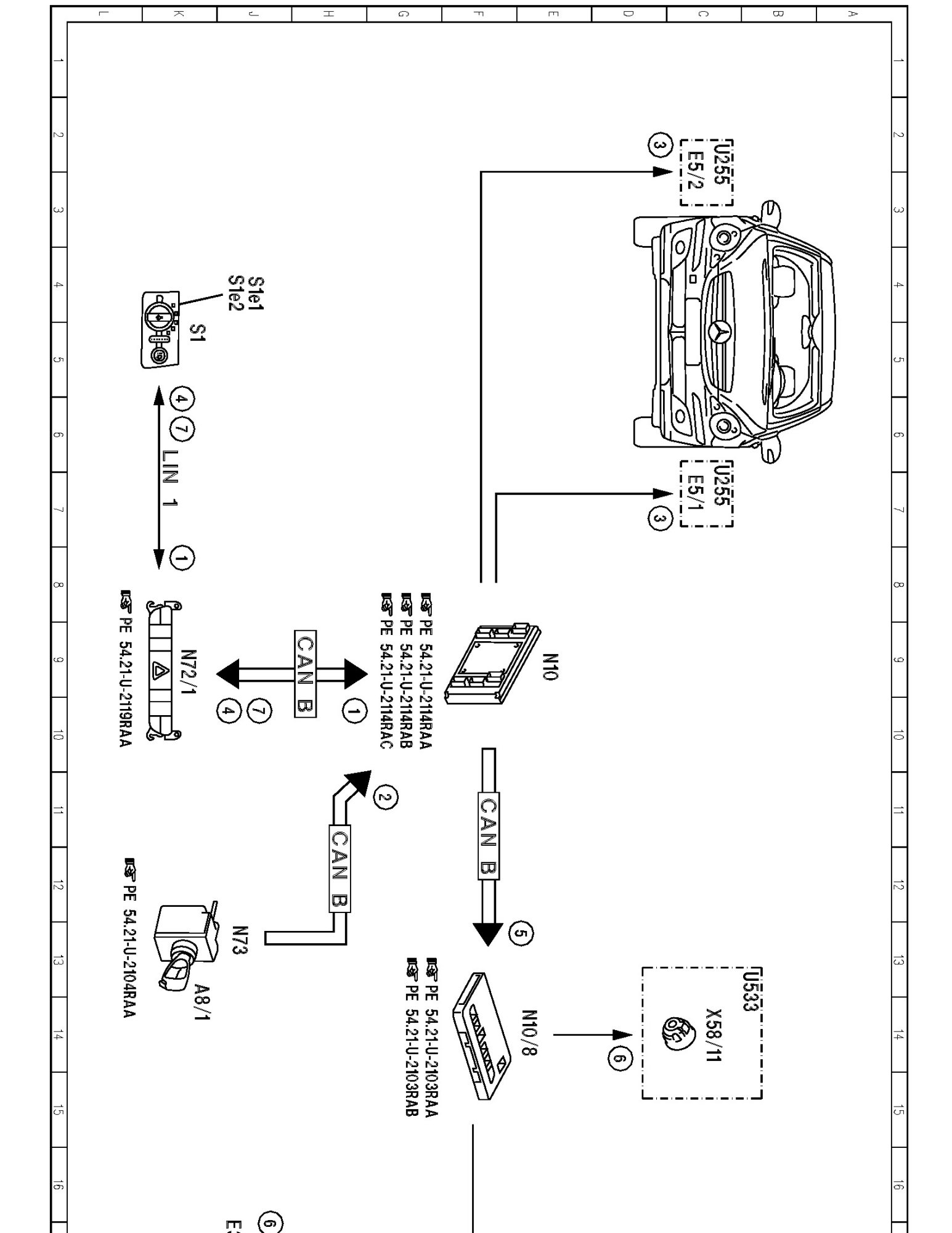

PE82.10-U-2056RAA Electrical Function Diagram For Front Fog Light Actuation

PE82.10-U-2056RAA Electrical Function Diagram For Front Fog Light Actuation
- as of model year 09

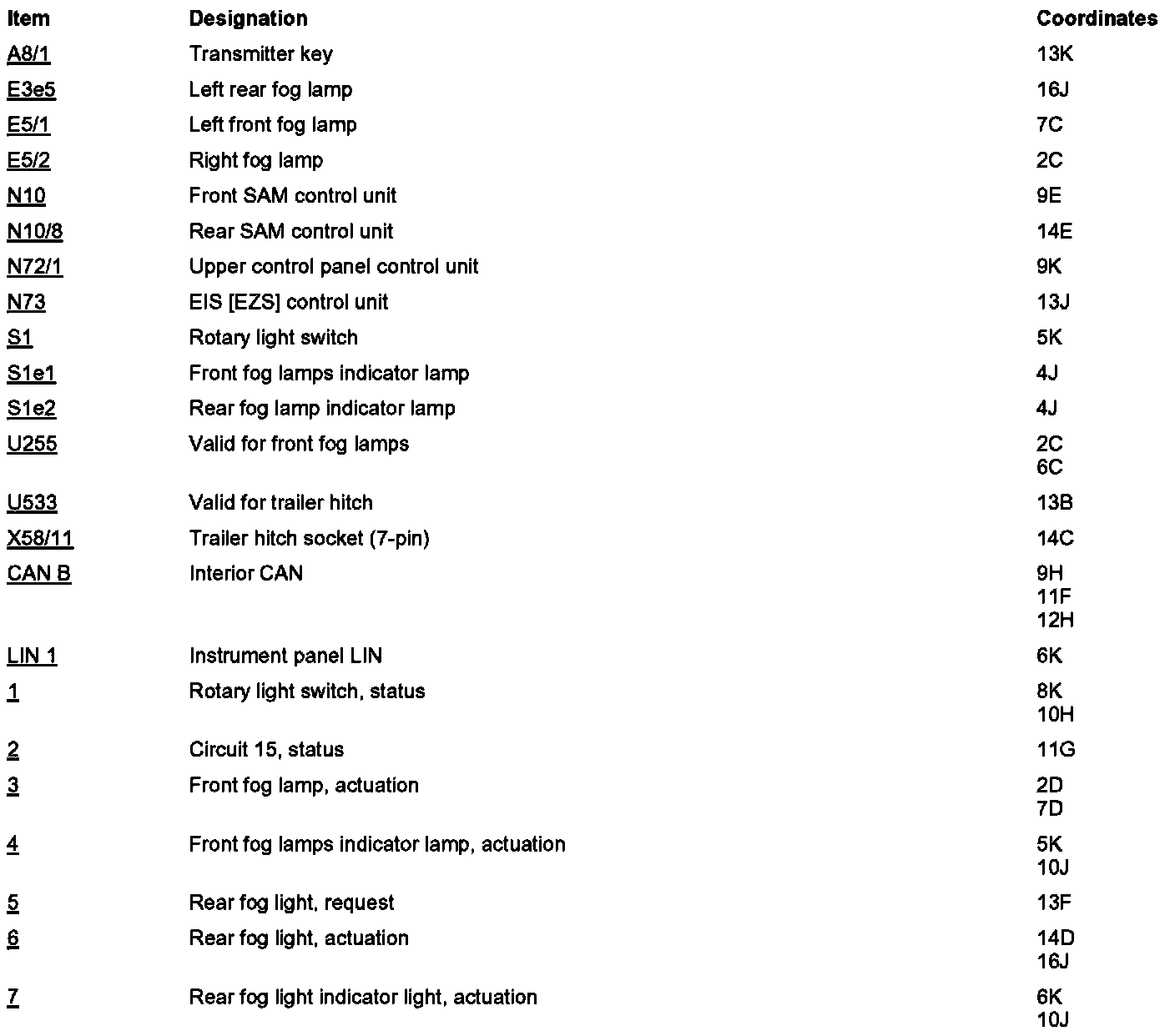

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
