PE83.70-P-2055RAA Electrical Function Schematic, Programming Of Preselection Time

Electrical Function Schematic, Programming Of Preselection Time PE83.70-P-2055RAA
- with CODE (228) Stationary heater
- as of model year 09

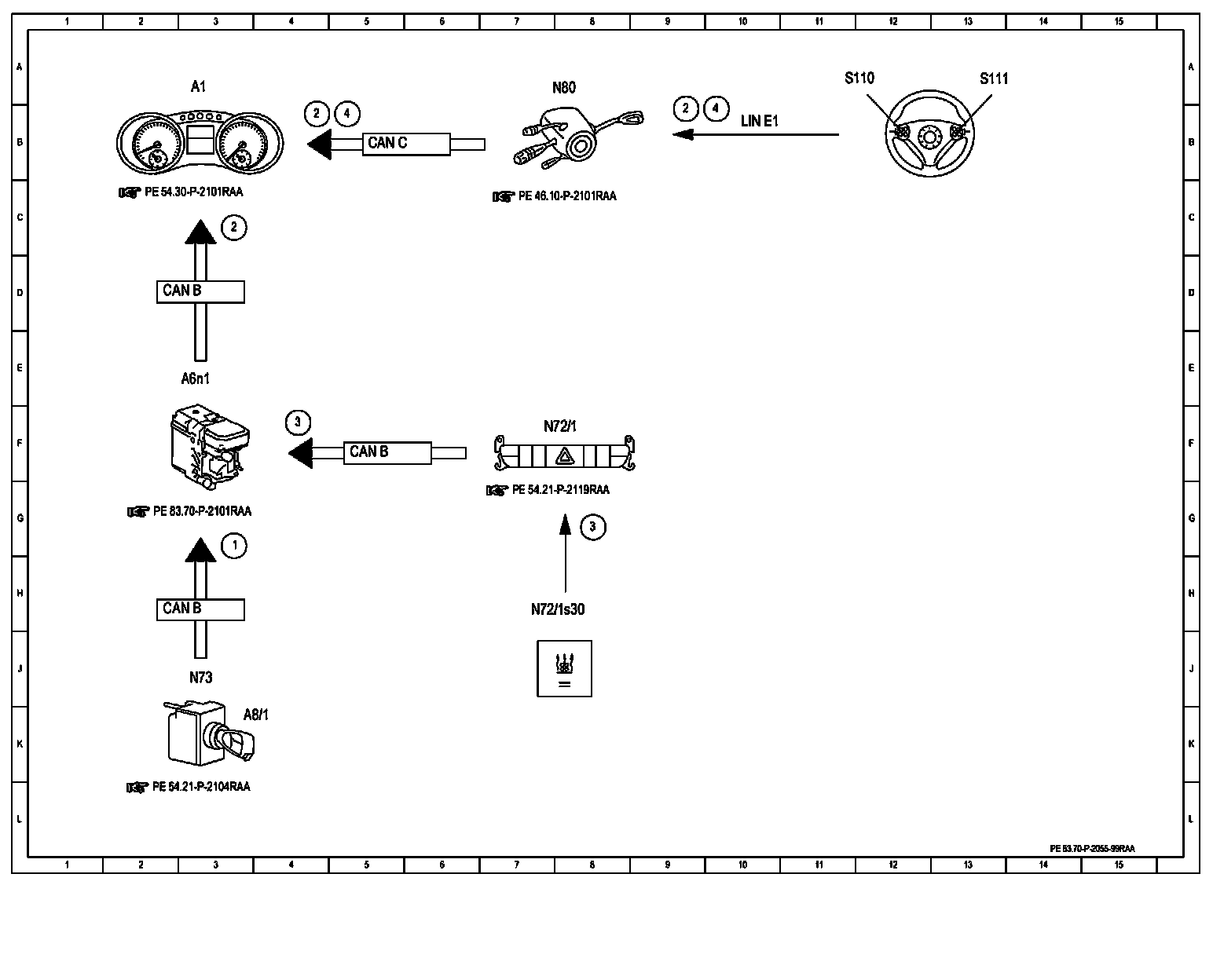

Function Diagram:

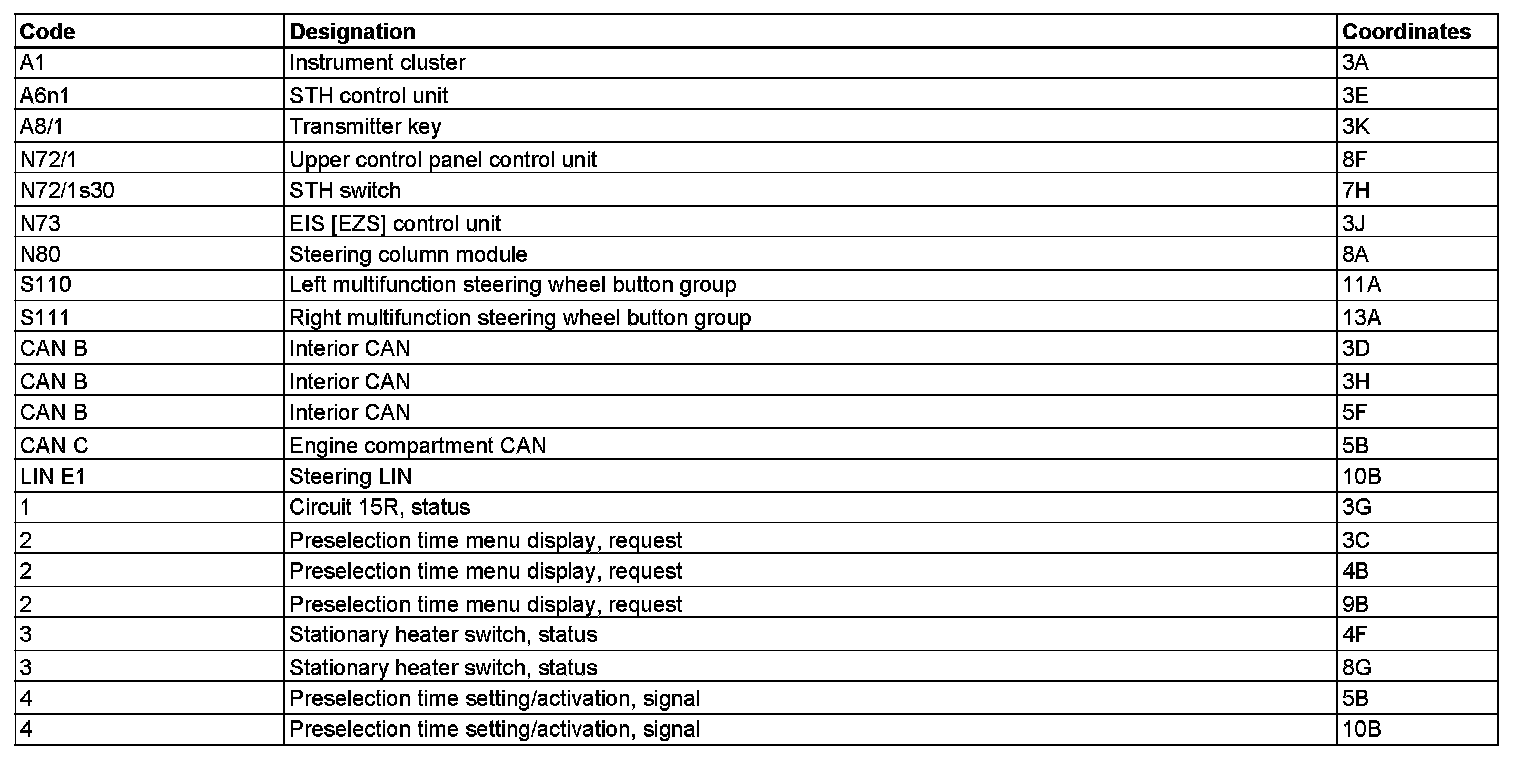

Component Description/Coordinates, A1 To 4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
